MPT761 digital differential pressure transmitter MPT761 digital differential pressure transmitter
MPT761 digital differential pressure transmitter
MPT761 digital differential pressure transmitter-MANYYEAR TECHNOLOGY
MPT761 digital differential pressure transmitter-MANYYEAR TECHNOLOGY
MPT761 digital differential pressure transmitter-MANYYEAR TECHNOLOGY

MPT761 digital differential pressure transmitter

micro differential pressure sensor, air differential pressure sensor, wind differential pressure sensor

Model: MPT761
Category: Differential pressure sensor
Range: Range: 0~2,100……7000KPA
temperature: ,-20~+85
signal output: mv/v, 0-5vdc,4-20mA,Hart,Rs485
Application: digital differential pressure transmitter, Air,water and oil differential pressure measurement


The selection of load cell products must be fully communicated and detailed solutions must be obtained. This communication can better understand your needs, recommend more appropriate products and save a lot of structural cost and development time. Customers can refer to the following form and send an email to admin@manyyear.com.
We will give back within 24 hours.

Product selection reference

Online Sales

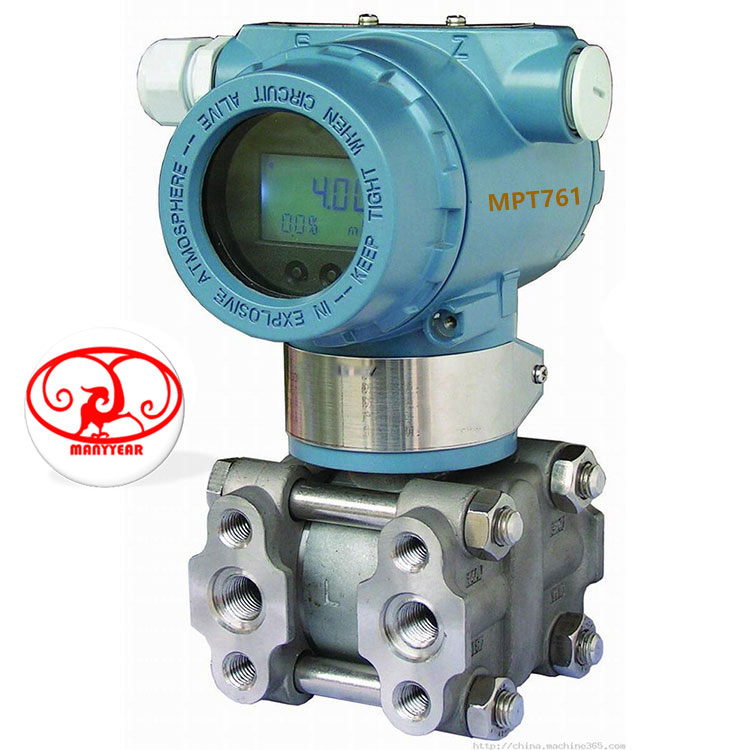

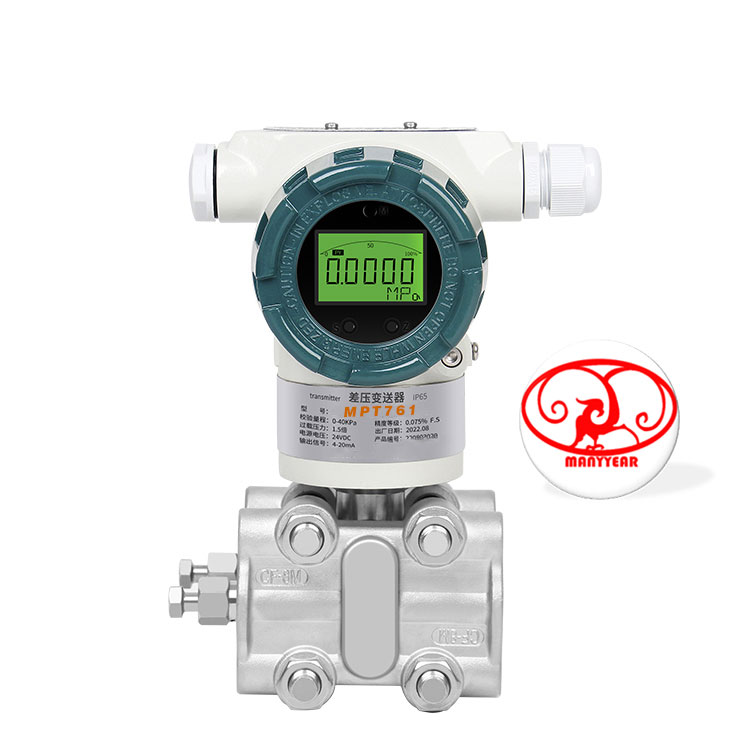

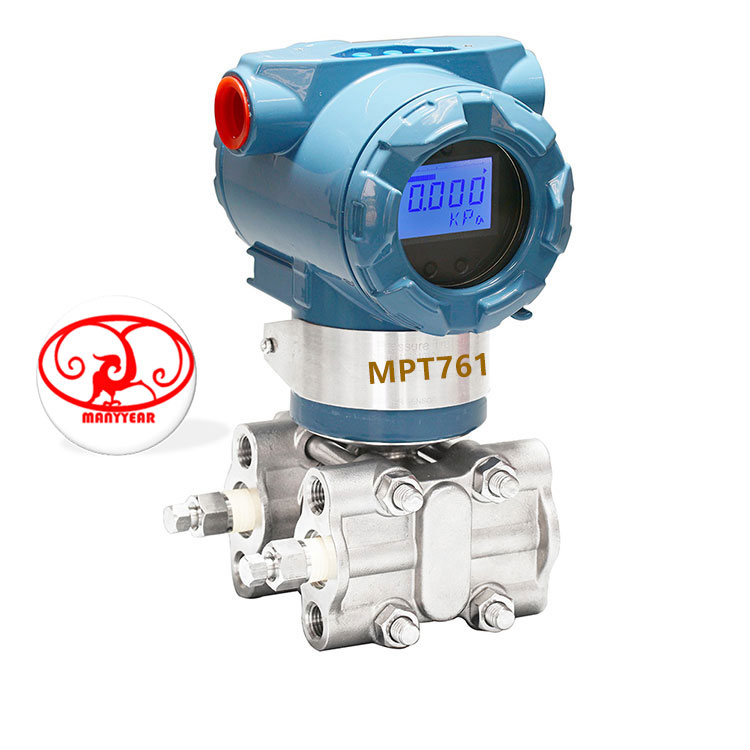

Product Picture Reference

MPT761 digital differential pressure transmitter-MANYYEAR TECHNOLOGY

Technology Specification

Below spec is only for customer design reference. we can provide ODM product.
MPT761 INDUSTRY Differential Pressure Transducer

Model:       MPT761

Category:  Differential pressure sensor

Range:       Range: 0~2,100……7000KPA

temperature:      ,-20~+85

signal output:    mv/v, 0-5vdc,4-20mA,Hart,Rs485

Application:       Air, water and oil differential pressure measurement

Characteristic:    industry differential pressure transmitter

reference picture
Technology parameter:
capability range0~2 …… 7MPA
pressure typeDifferential pressure
signal output(mA/v)mv/v, 0-5vdc,4-20mA,Hart,Rs485
Precision(%FS)0.1, 0.2,0.3
sluggish repeat (nor-linearity)(%FS)≤0.1 ≤0.2 ≤0.3
excursion at zero point(%FS/4h)≤0.01 ≤0.02 ≤0.03
temperature excursion≤0.01 ≤0.02 ≤0.03
long term stability(%FS/year)≤0.1;≤0.2
execute voltage (V)24v (9~36v)
temperature compensate (ºC)0~+60
environment temperature (ºC)-20~+85
Overload (%)200
Static pressure10~12
load resistance (Ω)R=(U-12.5)/0.02-RD;    U=POWER SUPPLY, RD=Wire resistance
response time(ms)≤1
measuremediumcompatible with 316L,causticity Gas, liquid
House1Cr18Ni9Ti
connector threadØ7.5,M12×1 or  order by customer
explosion proof gradeoption-able
water proof gradeIP65
Film316Lstainless steel

Product Dimension

MPT761 digital differential pressure transmitter-MANYYEAR TECHNOLOGY

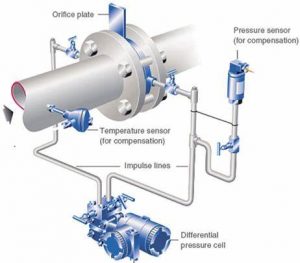

Schematic diagram of differential pressure sensor installation

Force Structure & Assembly Reference

MPT761 digital differential pressure transmitter-MANYYEAR TECHNOLOGY

pressure sensor signal output







Product Application

MPT761 digital differential pressure transmitter-MANYYEAR TECHNOLOGY

wind differential pressure sensor

MPT761 digital differential pressure transmitter-MANYYEAR TECHNOLOGY

pharmaceutical-production

MPT761 digital differential pressure transmitter-MANYYEAR TECHNOLOGY

flow measurement
