MPT205 temperature pressure sensor MPT205 temperature pressure sensor
MPT205 temperature pressure sensor
MPT205 temperature pressure sensor-MANYYEAR TECHNOLOGY
MPT205 temperature pressure sensor-MANYYEAR TECHNOLOGY
MPT205 temperature pressure sensor-MANYYEAR TECHNOLOGY
MPT205 temperature pressure sensor-MANYYEAR TECHNOLOGY

MPT205 temperature pressure sensor

air pressure sensor, water pressure sensor, liquid pressure sensor,oil pressure sensor, temperature pressure sensor

Model: MPT205
Category: common pressure sensor
Range: 0-2000bar
temperature: .-20~175
signal output: mv/v, 0-5vdc,4-20mA,Hart,Rs485
Application: air pressure sensor, water pressure sensor, liquid pressure sensor,oil pressure sensor, temperature pressure sensor


The selection of load cell products must be fully communicated and detailed solutions must be obtained.
This communication can better understand your needs, recommend more appropriate products and save a lot of structural cost and development time.
Customers can refer to the following form and send an email to admin@manyyear.com.
We will give back within 24 hours.

Product selection reference

Sales Online

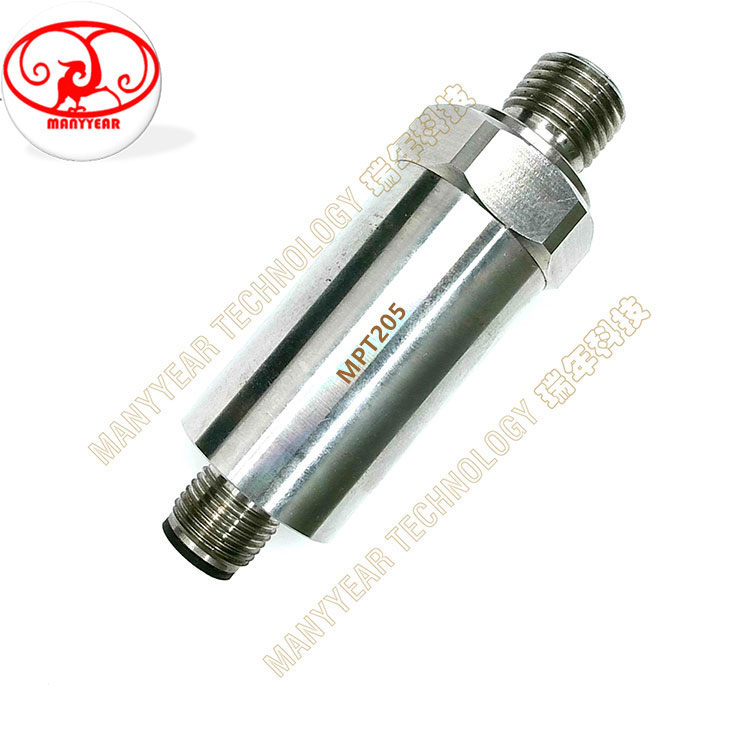

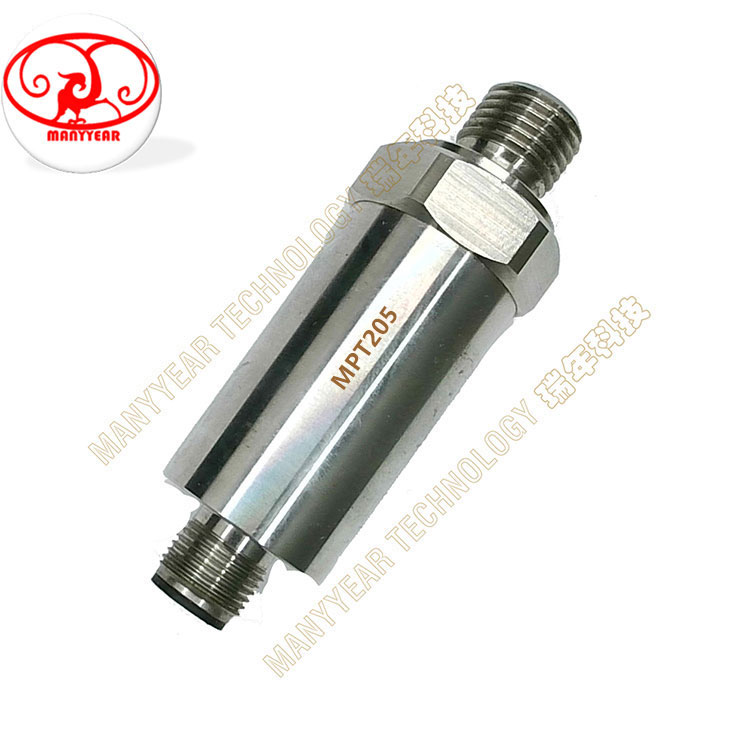

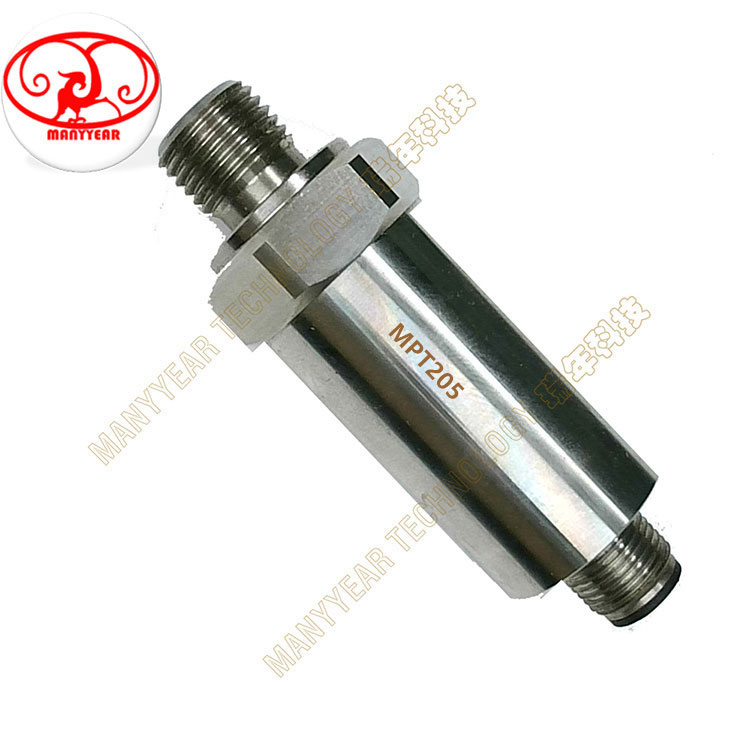

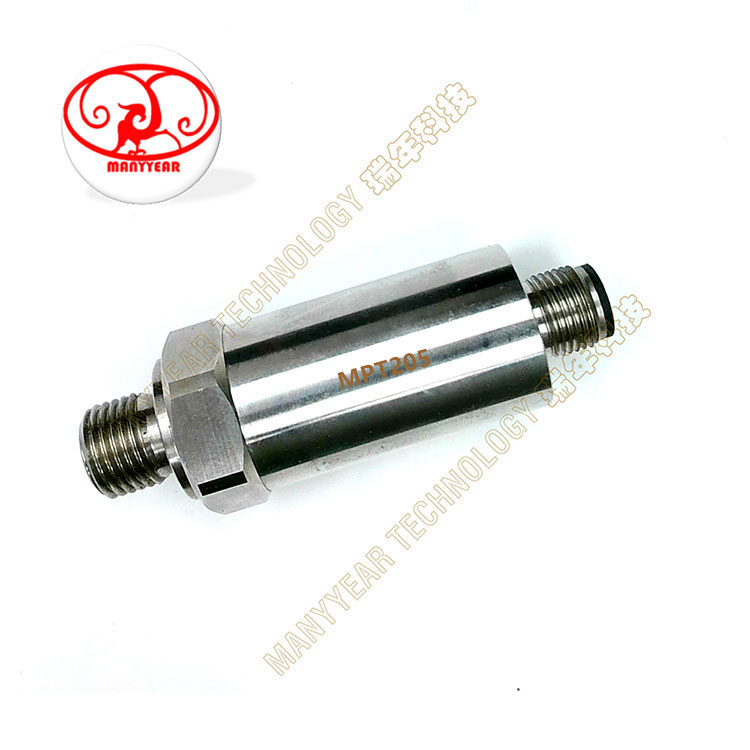

Product Picture Reference



MPT205 temperature pressure sensor-MANYYEAR TECHNOLOGY

Technology Specification

Below spec is only for customer design reference. we can provide ODM product.
MPT205 Temperature and Pressure Transmitter

Model:       MPT205 Temperature and Pressure Transmitter

Category:  common pressure sensor

Range:       0-2000bar

temperature:      .-20~175

signal output:    mv/v, 0-5vdc,4-20mA,Hart,Rs485

Application:       hydraulic pressure measure, pressure and temperature measure

Characteristic:    dual functions Pressure sensor, temperature and pressure sensor

PIC
Technology parameter:
capability range-1Bar-0-10Bar~2000Bar(Optional)
pressure typeGauge pressure, Absolute pressure(vacuum pressure), negative pressure
signal output(mA/v)0-5V;0-10V;4~20mA and so on
Precision(%FS)≤0.25/0.5%FS
sluggish repeat (nor-linearity)(%FS) ≤0.1~≤0.2
excursion at zero point(%FS/4h)≤0.1~≤0.2
temperature excursion(zero & delicacy)(%FS/℃)≤0.01~≤0.02
long term stability(%FS/year)≤0.1~≤0.3
execute voltage (V) 9~36VDC(24VDC or 12VDC is fine)
temperature compensate (℃)-20~+60
environment temperature (℃)-20~+85
Medium temperature(℃)-20~175
Overload (%)150
load resistance (Ω)R=(U-12.5)/0.02-RD     U=POWER SUPPLY,RD=Wire resistance
response time(ms)≤1
Measure mediumOil, gas, water and so on
House1Cr18Ni9Ti or 316SSL
Connect threadM20×1.5,1/8NPT,1/2NPT or order by customer
explosion proof gradeNA
water proof gradeIP67

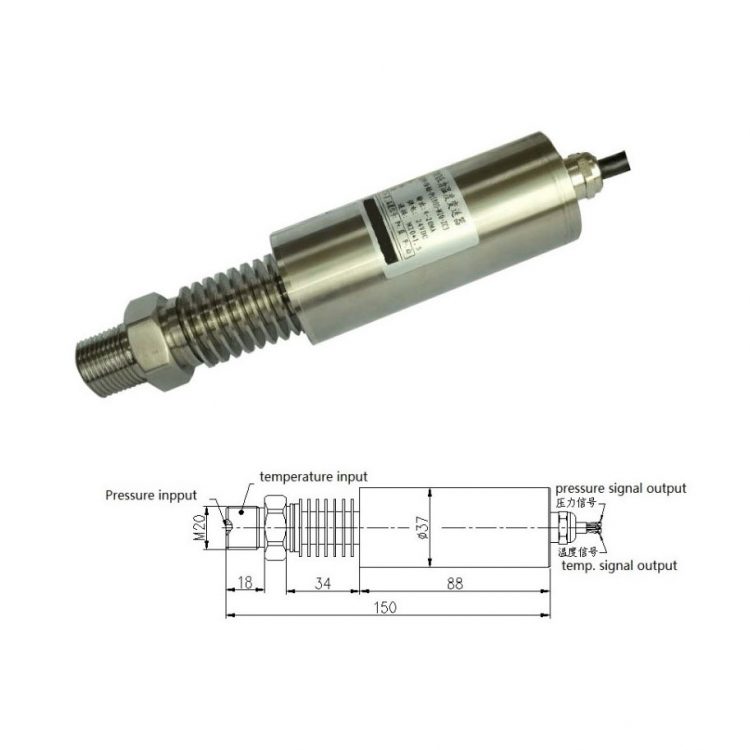

Product Dimension

MPT205 temperature pressure sensor-MANYYEAR TECHNOLOGY

Force Structure & Assembly Reference

MPT205 temperature pressure sensor-MANYYEAR TECHNOLOGY

pressure sensor signal output







MPT205 temperature pressure sensor-MANYYEAR TECHNOLOGY

pressure sensor assembly

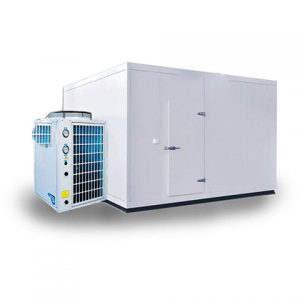

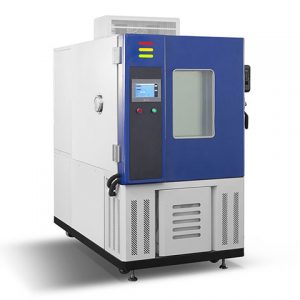

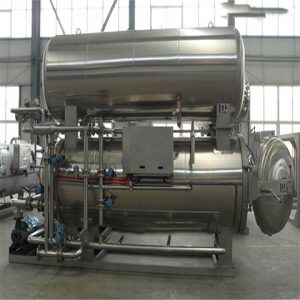

Product Application

MPT205 temperature pressure sensor-MANYYEAR TECHNOLOGYMPT205 temperature pressure sensor-MANYYEAR TECHNOLOGYMPT205 temperature pressure sensor-MANYYEAR TECHNOLOGY
