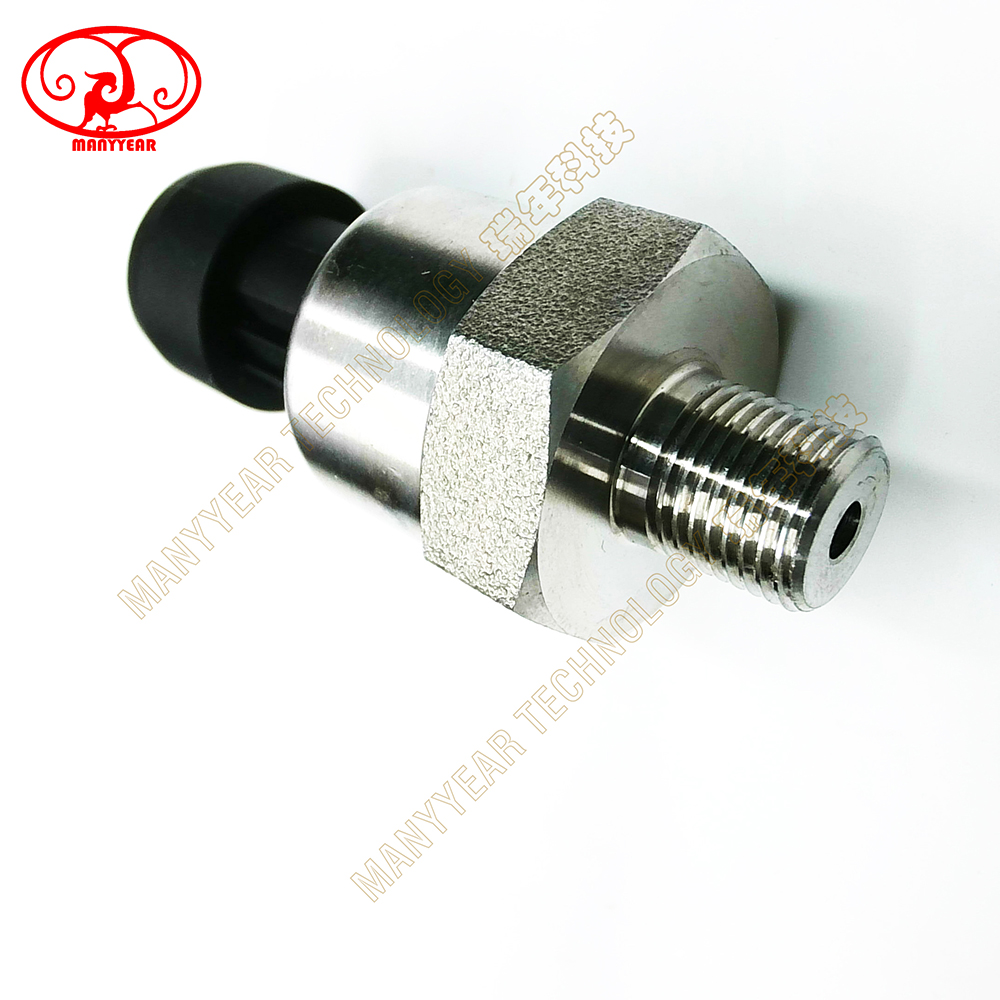

MPT211 miniature pressure sensor MPT211 miniature pressure sensor
MPT211 miniature pressure sensor
MPT211 miniature pressure sensor-MANYYEAR TECHNOLOGY
MPT211 miniature pressure sensor-MANYYEAR TECHNOLOGY
MPT211 miniature pressure sensor-MANYYEAR TECHNOLOGY

MPT211 miniature pressure sensor

micro pressure sensor, miniature pressure sensor,water pressure sensor, oil pressure sensor, air pressure sensor

Model: MPT211
Category: common pressure sensor
Range: 0-2000bar
temperature: .-40~+125
signal output: mv/v, 0-5vdc,4-20mA
Application: micro pressure sensor, miniature pressure sensor,water pressure sensor, oil pressure sensor, air pressure sensor


The selection of load cell products must be fully communicated and detailed solutions must be obtained.
This communication can better understand your needs, recommend more appropriate products and save a lot of structural cost and development time.
Customers can refer to the following form and send an email to admin@manyyear.com.
We will give back within 24 hours.

Product selection reference

Sales Online

Product Picture Reference

Technology Specification

Below spec is only for customer design reference. we can provide ODM product.
MPT211 miniature Pressure Transducer

MPT211 miniature pressure sensor-MANYYEAR TECHNOLOGY

MPT211 miniature Pressure Transducer

Model:       MPT211Y/T/G

Category:  common pressure sensor

Range:       0-2000bar

temperature:      .-40~+125

signal output:    mv/v, 0-5vdc,4-20mA

Application:       water pressure measure, oil pressure measure, air pressure measure

Characteristic:    miniature Pressure sensor, micro pressure sensor

MPT211Y



MPT211GMTP211T
Technology parameter:
capability range0~0.6~200Mpa
pressure typeGauge pressure, negative pressure ,Absolutely pressure
signal output(mA/v)

Pressure transducer: 0~5V; 0~10V; 4~20Ma.

Pressure Transducer: 1mV/V; 2mV/V,2.5mV/V ,3.3mV/V

Full load output(mV)30~60-120MV
Zero point output(mV)≤20
Precision(%FS)0.1, 0.2, 0.3
sluggish repeat (nor-linearity)(%FS) ≤0.1, ≤0.2,  ≤0.3
excursion at zero point(%FS/4h)≤0.1, ≤0.2,  ≤0.3
temperature excursion(zero & delicacy)(%FS/ºC)≤0.01,  ≤0.02,  ≤0.03
long term stability(%FS/year)≤0.1;≤0.3
execute voltage (V)

pressure transducer:24VDC (9~36)VDC;

Pressure Transducer: 10VDC(6~12V)

temperature compensate (ºC)-20~+60
work temperature (ºC)-20~+85
storage temperature-40~+125
Overload (%)200/300
Life>1×108pressure cycle(25ºC)
load resistance (Ω)R=(U-12.5)/0.02-RD     U=POWER SUPPLY,RD=Wire resistance
response time(ms)≤1 (silicon), 5 (strain gauge), 10 (Ceramics)
measure mediumCompatible with 316L. Causticity and nor-causticity medium.
House316L
Connect threadM20×1.5 or  order by customer
Water proofIP65 IP67 IP68
DimensionΦ30*43mm
MPT211Y

Ceramics Pressure sensor

MPT211T

Ceramics Pressure sensor

MPT211G

Ceramics Pressure sensor

Product Dimension

MPT211 miniature pressure sensor-MANYYEAR TECHNOLOGY

Force Structure & Assembly Reference

MPT211 miniature pressure sensor-MANYYEAR TECHNOLOGY

pressure sensor signal output







MPT211 miniature pressure sensor-MANYYEAR TECHNOLOGY

pressure sensor assembly

Product Application

MPT211 miniature pressure sensor-MANYYEAR TECHNOLOGY

app-Drinking water production

MPT211 miniature pressure sensor-MANYYEAR TECHNOLOGY

MPT211 miniature pressure sensor-MANYYEAR TECHNOLOGY

app-building-water-supply
