MPT212 Anti-corrosion pressure sensor

Anti-corrosion pressure sensor, sea water pressure sensor, medical production pressure sensor, corrosion medium Pressure measure sensor, Polypropylene pressure sensor

Model: MPT212
Category: common pressure sensor
Range: 0-2000bar
temperature: .-20~+80
signal output: mv/v, 0-5vdc,4-20mA
Application: Anti-corrosion pressure sensor, sea water pressure sensor, medical production pressure sensor, corrosion medium pressure sensor, Polypropylene pressure sensor


The selection of load cell products must be fully communicated and detailed solutions must be obtained.
This communication can better understand your needs, recommend more appropriate products and save a lot of structural cost and development time.
Customers can refer to the following form and send an email to admin@manyyear.com.
We will give back within 24 hours.

Product selection reference

Sales Online

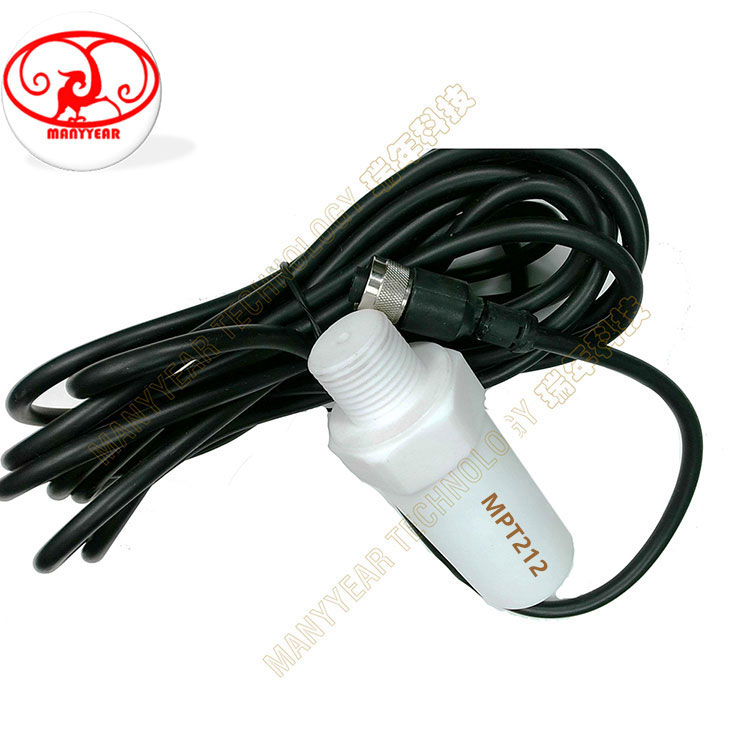

Product Picture Reference



MPT212 Anti-corrosion pressure sensor-MANYYEAR TECHNOLOGY

Technology Specification

Below spec is only for customer design reference. we can provide ODM product.
MPT212 antisepsis Pressure Transducer

Model:    MPT212

Category: common pressure sensor

Range:    0-2000bar

temperature:    .-20~+80

signal output: mv/v, 0-5vdc,4-20mA

Application:    water pressure measure, oil pressure measure, air pressure measure, corrosion medium Pressure measure

Characteristic: antisepsis pressure transducer, anticorrosive pressure sensor

reference picture
Technology parameter:
capability range0~0.01~1……60
pressure typeGauge pressure, Absolutely pressure, negative pressure
Full load output(mV)50~100
Zero point output(mV)≤1
Precision(%FS)0.1, 0.3, 0.5
sluggish repeat (nor-linearity)(%FS) ≤0.1, ≤0.3,  ≤0.5
excursion at zero point(%FS/4h) ≤0.1, ≤0.3,  ≤0.5
temperature excursion(zero & delicacy)(%FS/ºC)≤0.01,  ≤0.03,  ≤0.05
long term stability(%FS/year)≤0.2
execute voltage(V)+6(1.5mA)
temperature compensate(ºC)0~+80
work temperature(ºC)-20~+80
Input/output resistance(Ω)3500/4500
Over load(%)200
life>1×108pressure cycle(25ºC)
load resistance (Ω)R=(U-12.5)/0.02-RD
response time(ms)≤1
measure mediumcompatible with 316L, causticity Gas,liquid,steam
Film316L
House1Cr18Ni9Ti
Connector threadM20×1.5;Φ7.5 or  order by customer
explosion proof gradeNA
water proof gradeIP67
Dimension

Product Dimension

MPT212 Anti-corrosion pressure sensor-MANYYEAR TECHNOLOGY

Force Structure & Assembly Reference

MPT212 Anti-corrosion pressure sensor-MANYYEAR TECHNOLOGY

pressure sensor signal output







MPT212 Anti-corrosion pressure sensor-MANYYEAR TECHNOLOGY

pressure sensor assembly

Product Application

MPT212 Anti-corrosion pressure sensor-MANYYEAR TECHNOLOGY

APP-Drug Production-1

MPT212 Anti-corrosion pressure sensor-MANYYEAR TECHNOLOGYMPT212 Anti-corrosion pressure sensor-MANYYEAR TECHNOLOGY
