MPT241A Flush diaphragm pressure sensor

flush diaphragm pressure sensor, food product pressure sensor, Medical production pressure sensor, Flat diaphragm pressure sensor

Model: MPT241
Category: common pressure sensor
Range: 0-2000bar
temperature: .-40~+125
signal output: mv/v, 0-5vdc,4-20mA
Application: flush diaphragm pressure sensor, food product pressure sensor, Medical production pressure sensor,Flat diaphragm pressure sensor


The selection of load cell products must be fully communicated and detailed solutions must be obtained.
This communication can better understand your needs, recommend more appropriate products and save a lot of structural cost and development time.
Customers can refer to the following form and send an email to admin@manyyear.com.
We will give back within 24 hours.

Product selection reference

Sales Online

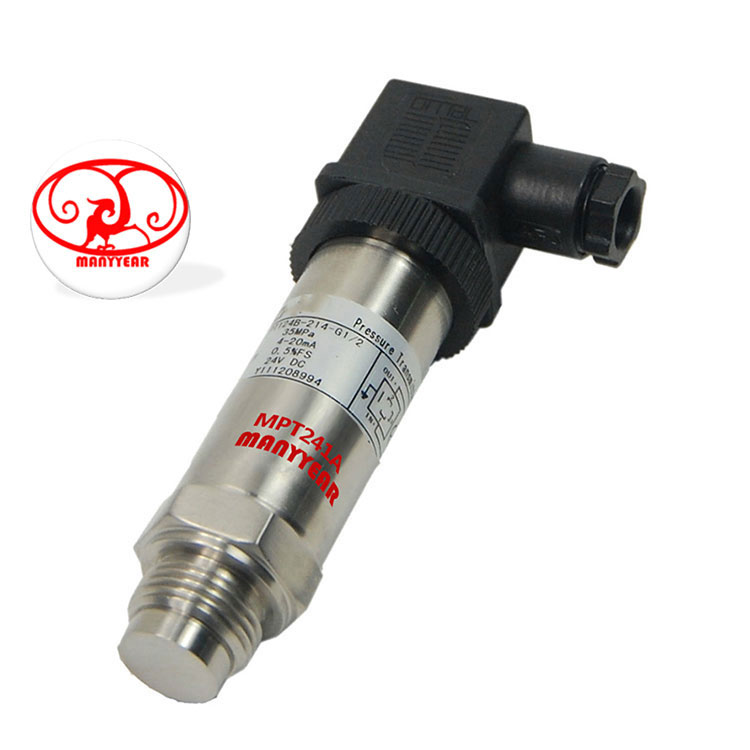

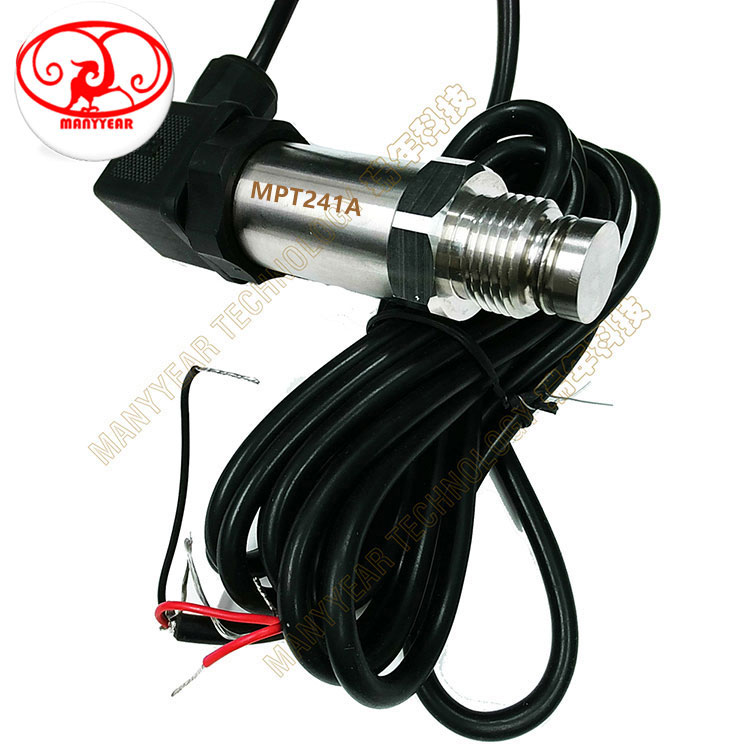

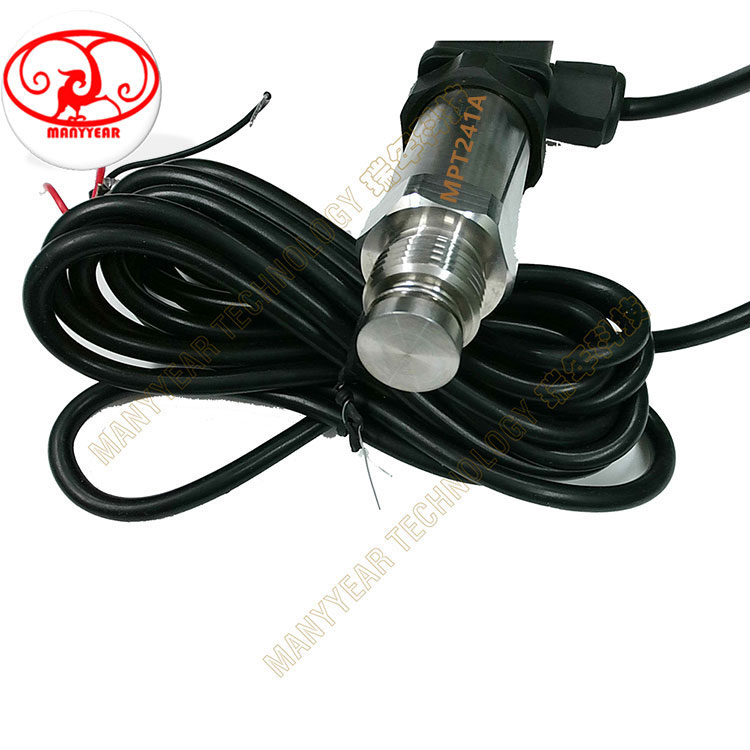

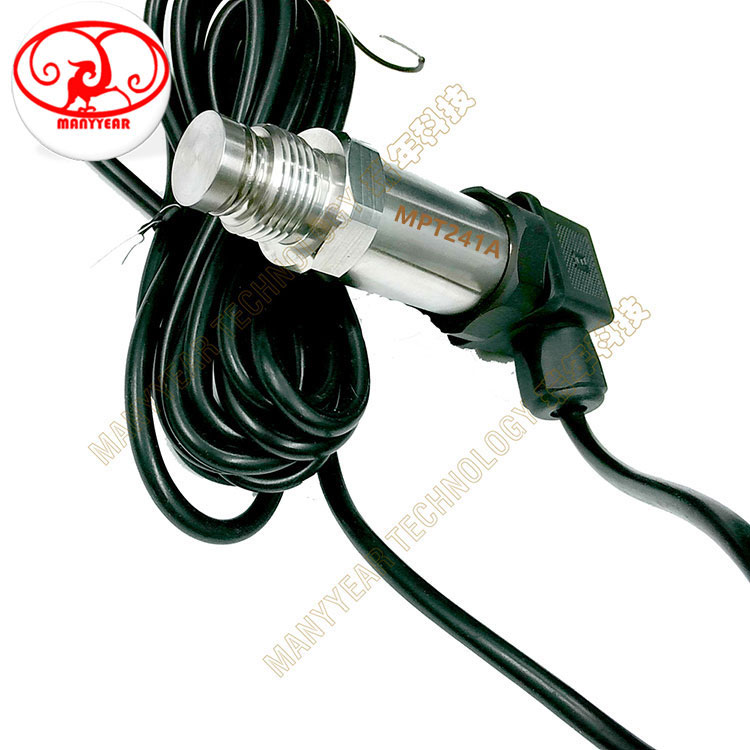

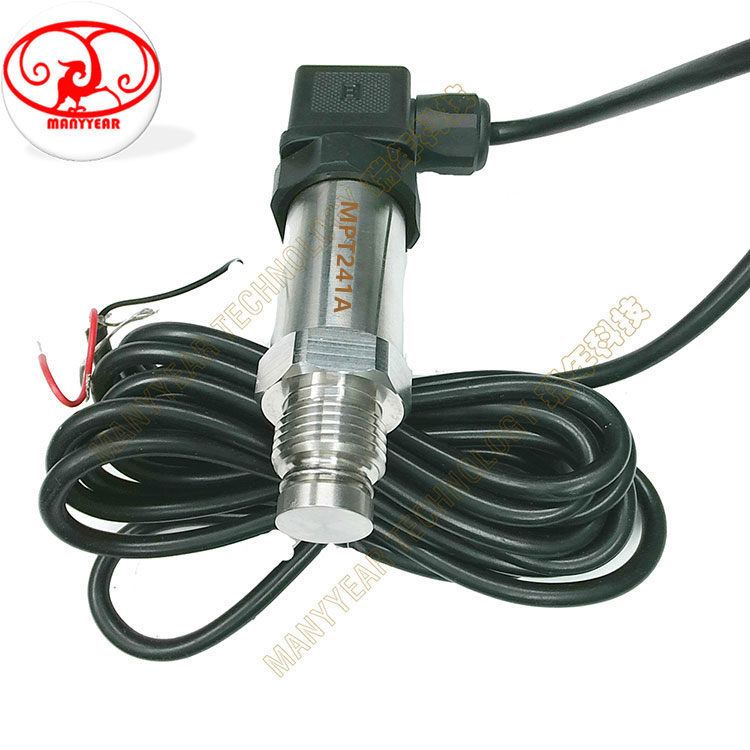

Product Picture Reference



MPT241A Flush diaphragm pressure sensor-MANYYEAR TECHNOLOGY

Technology Specification

Below spec is only for customer design reference. we can provide ODM product.
MPT241 Flush Diaphragm Pressure transmitter

Model:       MPT241A

Category:  common pressure sensor

Range:       0-2000bar

temperature:      .-40~+125

signal output:    mv/v, 0-5vdc,4-20mA

Application:       oil pressure measure,  viscous medium pressure measure

Characteristic:    flush diaphragm pressure transducer, flat film pressure sensor

reference picture

MPT241B                       MPT241A

Technology parameter:
capability range0 ~0.6~200 MPA
pressure typeGauge pressure, Absolutely pressure
signal output(mA/v)

Pressure transducer: 0~5V; 0~10V; 4~20Ma.

Pressure Transducer: 1mV/V; 2mV/V,2.5mV/V ,3.3mV/V

Full load output(mV)30~60~120
Zero point output(mV)≤20
Precision(%FS)0.1, 0.2,0.3
sluggish repeat (nor-linearity)(%FS)≤0.1 ≤0.2 ≤0.3
excursion at zero point(%FS/4h)≤0.05 ≤0.1 ≤0.2
temperature excursion(zero & delicacy)(%FS/ºC)≤0.005 ≤0.01 ≤0.02
long term stability(%FS/year)≤0.1;≤0.3
execute voltage (V)pressure transducer:24VDC (9~36)VDC;

Pressure Transducer: 10VDC(6~12V)

temperature compensate (ºC)-20~+60
work temperature (ºC)-20~+85, -20~ +250(max 300c)
storage temperature-40~+125
Overload (%)300
Life>1×108pressure cycle(25ºC)
load resistance (Ω)R=(U-12.5)/0.02-RD     U=POWER SUPPLY,RD=Wire resistance
response time(ms)≤1
measuremediumCompatible with 316L. Causticity and nor-causticity medium.
House316L
Connect threadM20×1.5 or  order by customer
explosion proof gradeExibIICT6
DimensionΦ27*124MM

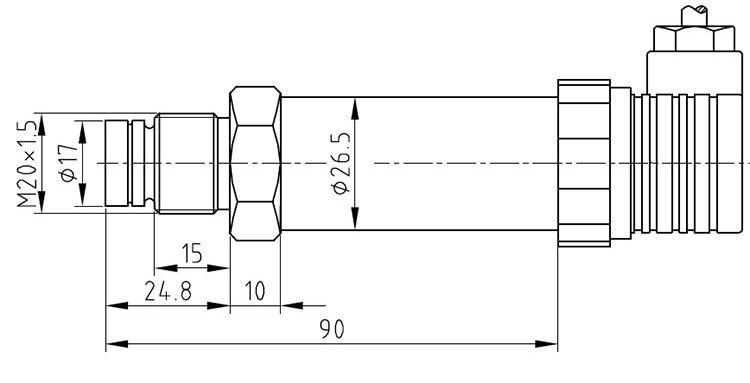

Product Dimension

MPT241A Flush diaphragm pressure sensor-MANYYEAR TECHNOLOGY

Force Structure & Assembly Reference

MPT241A Flush diaphragm pressure sensor-MANYYEAR TECHNOLOGY

pressure sensor signal output







MPT241A Flush diaphragm pressure sensor-MANYYEAR TECHNOLOGY

pressure sensor assembly

Product Application

MPT241A Flush diaphragm pressure sensor-MANYYEAR TECHNOLOGY

app-pharmaceutical-production-2

MPT241A Flush diaphragm pressure sensor-MANYYEAR TECHNOLOGY

APP-Drug Production-1

MPT241A Flush diaphragm pressure sensor-MANYYEAR TECHNOLOGY

APP-Drinking water production
