MPT241 Flush diaphragm pressure sensor

2021/11/03 Pressure Sensor Common Pressure Sensor Flat Diaphragm Pressure Sensor 2504 0

flush diaphragm pressure sensor, food product pressure sensor, Medical production pressure sensor, Flat diaphragm pressure sensor

Model: MPT241
Category: common pressure sensor
Range: 0-2000bar
temperature: .-40~+125
signal output: mv/v, 0-5vdc,4-20mA
Application: flush diaphragm pressure sensor, food product pressure sensor, Medical production pressure sensor,Flat diaphragm pressure sensor

The selection of load cell products must be fully communicated and detailed solutions must be obtained.
This communication can better understand your needs, recommend more appropriate products and save a lot of structural cost and development time.
Customers can refer to the following form and send an email to admin@manyyear.com.
We will give back within 24 hours.

Product selection reference

Sales Online

Product Introduction Product Parameters

Product Picture Reference

Technology Specification

Below spec is only for customer design reference. we can provide ODM product.

MPT241 Flush Diaphragm Pressure transmitter

Model: MPT241 Category: common pressure sensor Range: 0-2000bar temperature: .-40~+125 signal output: mv/v, 0-5vdc,4-20mA Application: oil pressure measure, viscous medium pressure measure Characteristic: flush diaphragm pressure transducer, flat film pressure sensor

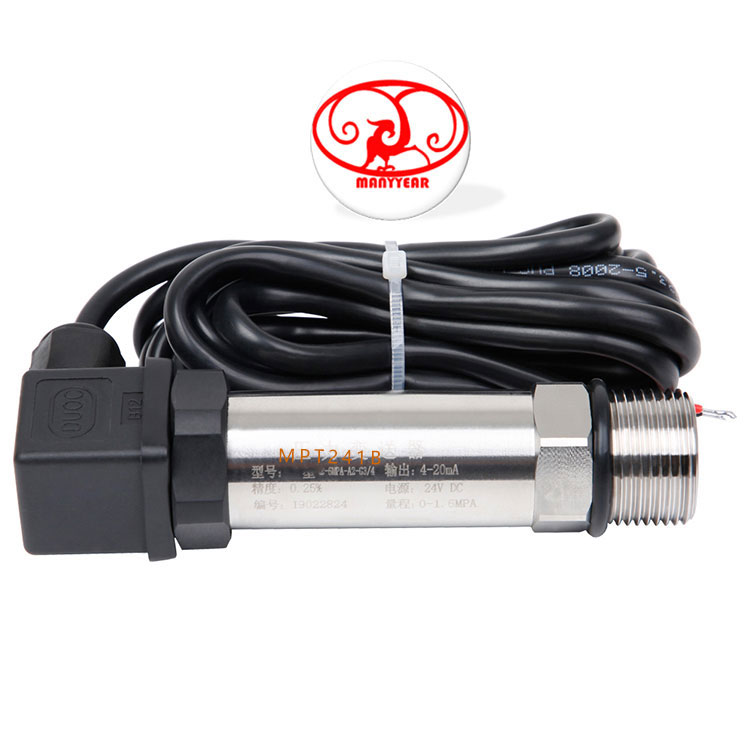

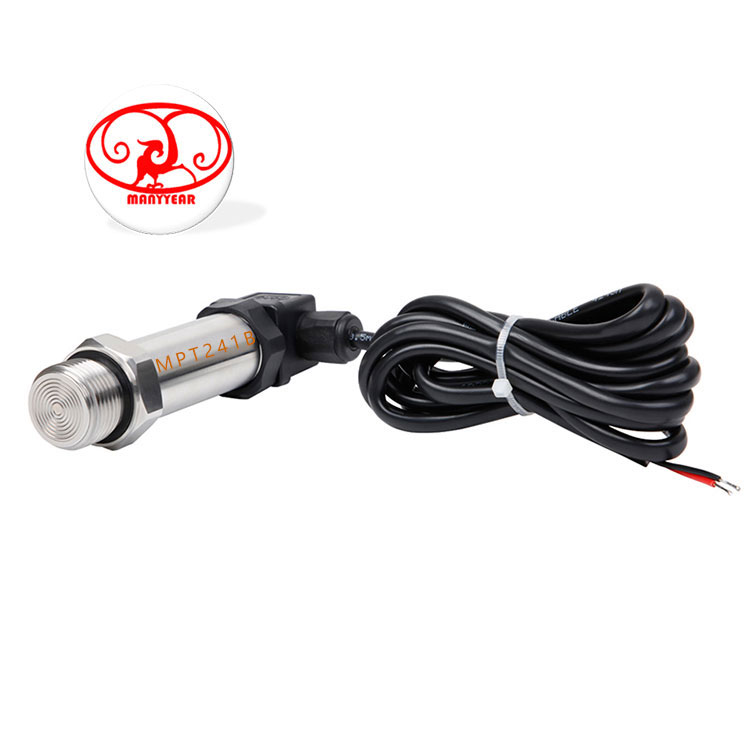

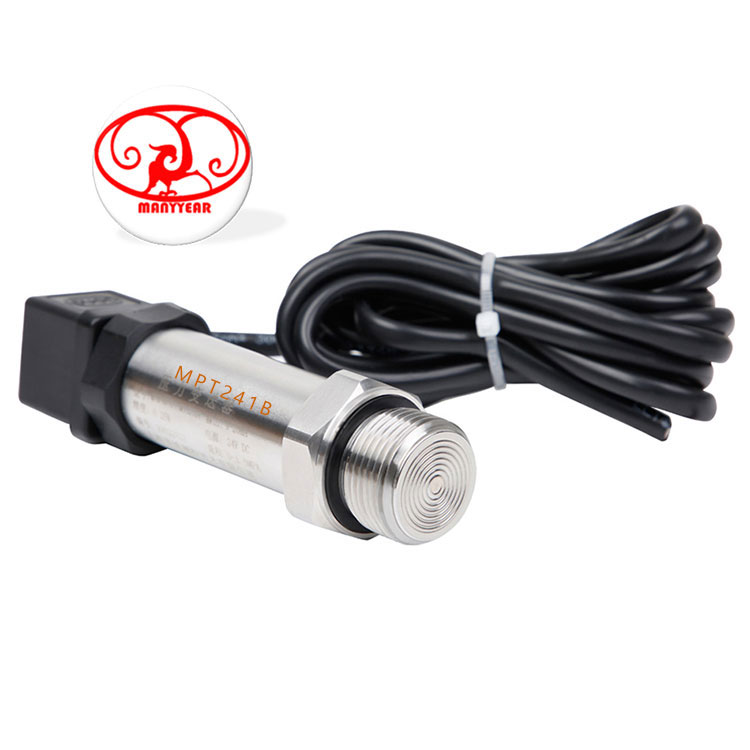

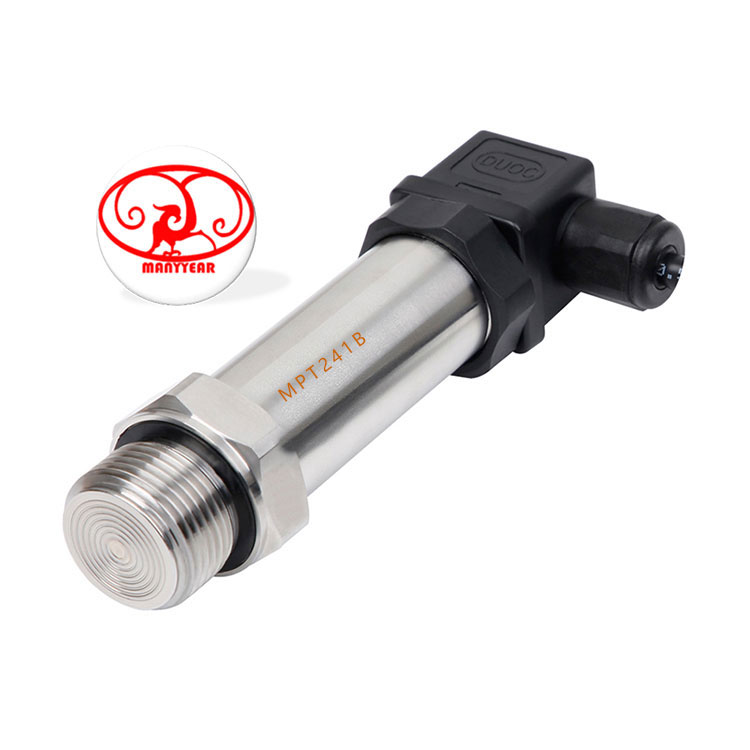

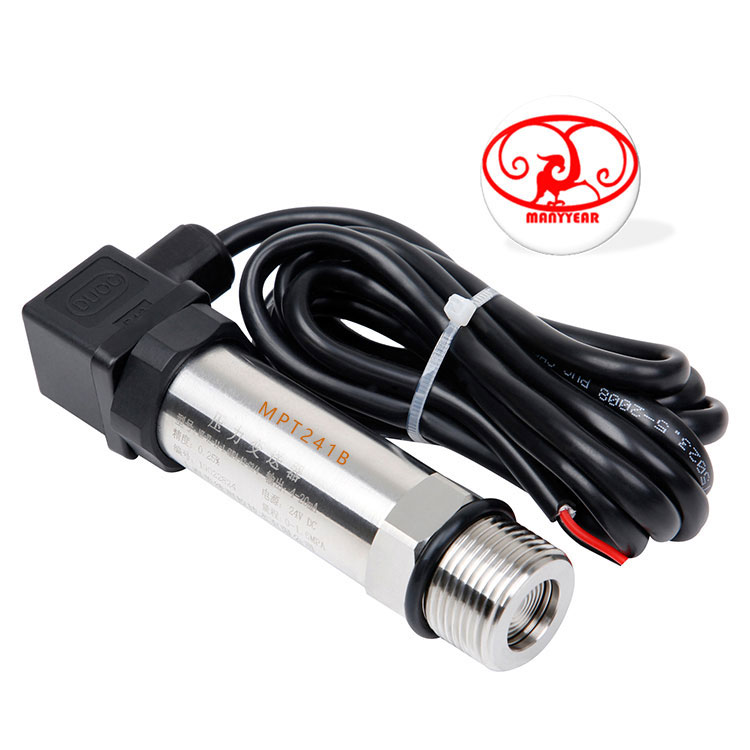

reference picture MPT241B MPT241A
Technology parameter:
capability range	0 ~0.6~200 MPA
pressure type	Gauge pressure, Absolutely pressure
signal output(mA/v)	Pressure transducer: 0~5V; 0~10V; 4~20Ma. Pressure Transducer: 1mV/V; 2mV/V,2.5mV/V ,3.3mV/V
Full load output(mV)	30~60~120
Zero point output(mV)	≤20
Precision(%FS)	0.1, 0.2,0.3
sluggish repeat (nor-linearity)(%FS)	≤0.1 ≤0.2 ≤0.3
excursion at zero point(%FS/4h)	≤0.05 ≤0.1 ≤0.2
temperature excursion(zero & delicacy)(%FS/ºC)	≤0.005 ≤0.01 ≤0.02
long term stability(%FS/year)	≤0.1;≤0.3
execute voltage (V)	pressure transducer:24VDC (9~36)VDC; Pressure Transducer: 10VDC(6~12V)
temperature compensate (ºC)	-20~+60
work temperature (ºC)	-20~+85， -20~ +250（max 300c）
storage temperature	-40~+125
Overload (%)	300
Life	＞1×108pressure cycle(25ºC)
load resistance (Ω)	R=(U-12.5)/0.02-RD U=POWER SUPPLY,RD=Wire resistance
response time(ms)	≤1
measuremedium	Compatible with 316L. Causticity and nor-causticity medium.
House	316L
Connect thread	M20×1.5 or order by customer
explosion proof grade	ExibIICT6
Dimension	Φ27*124MM

Product Dimension

Force Structure & Assembly Reference

pressure sensor signal output

pressure sensor assembly
