MPT124-124 Flange high temperature melt pressure transmitter

high temperature melt pressure transmitter, compression moulding machine pressure transmitter,Plastic Extruder equipment pressure transmitter, plastic injection molding pressure transmitter

Model: MPT124-124
Category: Melt pressure sensor
Range: 0-2000bar
temperature: 0-450c
Signal output: mv/v, 0-5vdc, 0-10vdc, 4-20mA
Application: high temperature melt pressure transmitter, compression moulding machine pressure transmitter,Plastic Extruder equipment pressure transmitter, plastic injection molding pressure transmitter


we have prepared this form as below, hoping to help you.if you complete the sheet, please send to admin@manyyear.com. we will reply to you in 24Hr.

Product selection reference

Sales Online

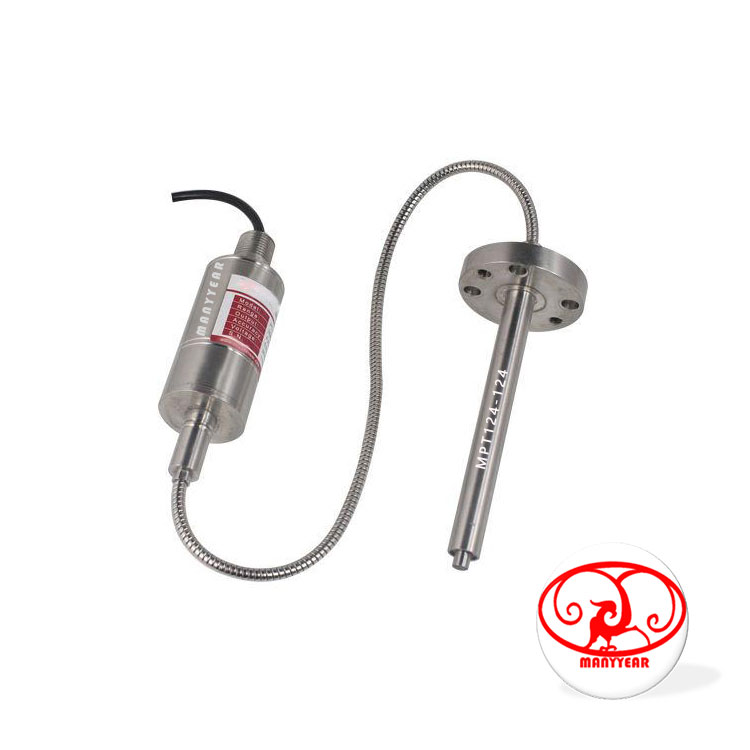

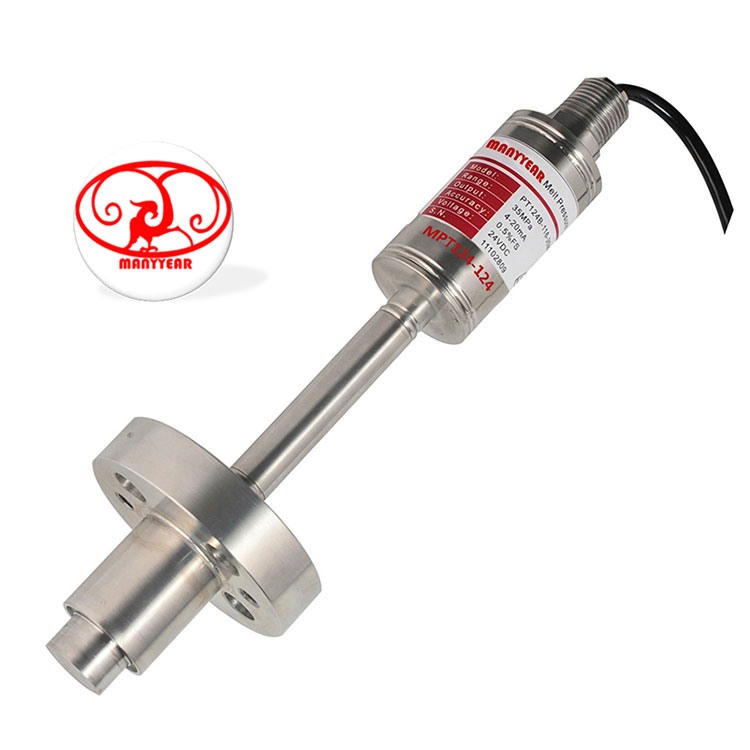

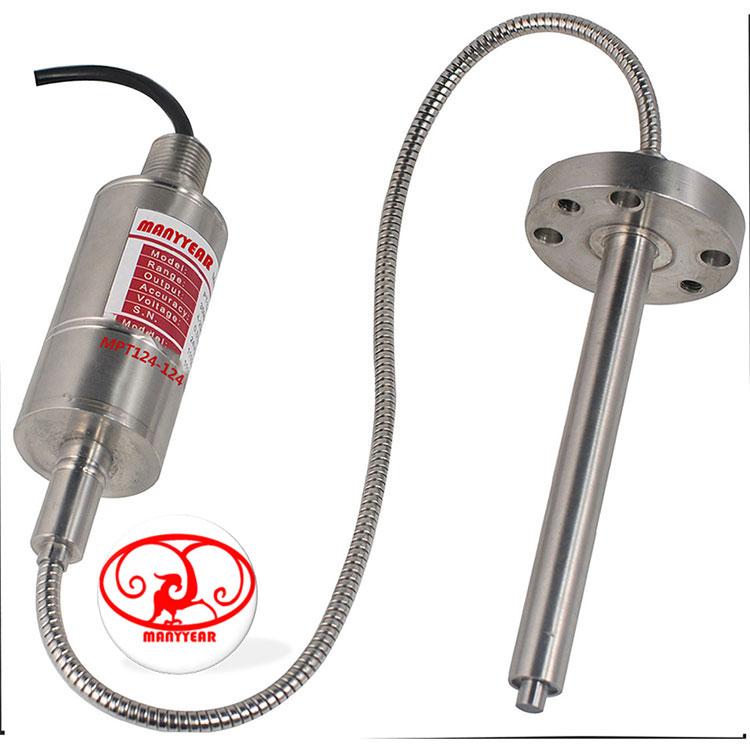

Product Picture Reference

MPT124-124 Flange high temperature melt pressure transmitter-MANYYEAR TECHNOLOGY

Technology Specification

Below spec is only for customer design reference. we can provide ODM product.
MPT124-124 (melt pressure - Flexible Tube - Flange install)

Model:     MPT124-124

Category:       Melt pressure sensor

Range:    0-2000bar

Dimension:     ¢38*L mm

Material:        316L

Application:    compression moulding machine,Plastic Extruder equipment, plastic injection molding

Characteristic:       melt pressure sensor,melt pressure transmitter

pic
SPEC
Capability range:0~3.5MPA~20MPA(Option )
Signal output:Pressure transducer: 0~5V; 0~10V; 4-20mA;

Pressure Transducer: 1.5mV/V; 2mV/V; 3.33mV/V

Precision:±0.5%FSO
Power supply:Pressure transducer: 24VDC (12~36)VDC;

Pressure Transducer: 10VDC

Repetition:±0.2%FSO
Electronic frame:FST bridge
Bridge resistance:350 ohms±10%
Overload pressure:2*FSO
Self-adjust:80%±1%
Insulated resistance:1000Megohms @50Vdc
Max temperature limit:480C
temperature excursion at zero±0.1%FS/C
Electra-connector:6Core or 8Core pluger,Or order by customer
Port connector:1/2″-20UNF, M14*1.5Or Design by customer
Wire Frame

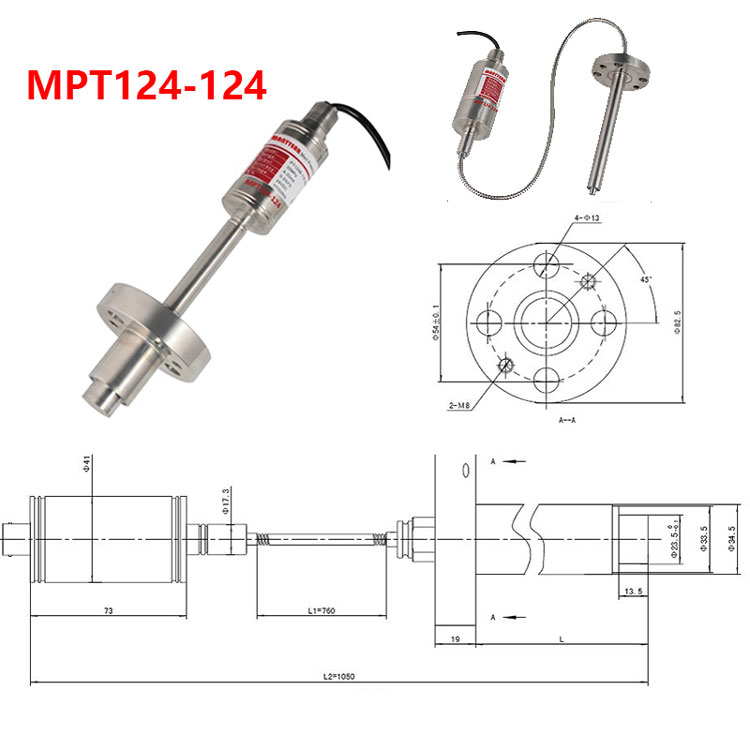

Product Dimension

MPT124-124 Flange high temperature melt pressure transmitter-MANYYEAR TECHNOLOGY

Force Structure & Assembly Reference

MPT124-124 Flange high temperature melt pressure transmitter-MANYYEAR TECHNOLOGY

pressure sensor assembly

Product Application

MPT124-124 Flange high temperature melt pressure transmitter-MANYYEAR TECHNOLOGY

High and low temperature test chamber

MPT124-124 Flange high temperature melt pressure transmitter-MANYYEAR TECHNOLOGY

Plastic ejector pressure transmitter

MPT124-124 Flange high temperature melt pressure transmitter-MANYYEAR TECHNOLOGY

injection molding machine pressure sensor
