Digital load cell, digital weight sensor, digital weighing system

Model: ADS421
Catalog: weight transmitter
Channel : 1 Channel
Work voltage: 6-12vdc
Signal output: RS485
Application: Digital weighing load cell, digital weight sensor, digital weighing system


we have prepared this form as below, hoping to help you.if you complete the sheet, please send to admin@manyyear.com. we will reply to you in 24Hr.

  Product selection reference

Online Sales

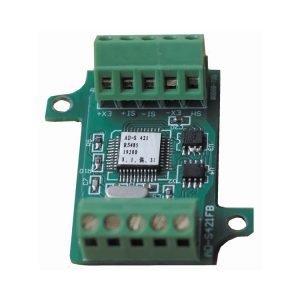

Product Picture Reference

ADS421 digital Load Cell-MANYYEAR TECHNOLOGY

Technology Specification

Below spec is only for customer design reference. we can provide ODM product.
                                                                           ADS421 Digital load cell

Model: ADS421

Catalog: Analog /digital weighing junction box

Channel : 1 Channel

Work voltage: 6-12vdc

Signal output: RS485

Application: digital pressure, digital temperature and digital weighing measurement

keyword: digital load cell, digital pressure sensor

Suitable for the application without strict demand for temperature performance or cost sensitive customers.

For the manufacture of digital load cells, weighing indicators, process control weighing instruments, tensile testing             machine,and other weighing or force measuring occasions.

Features and Specifications:

Measuring range: ±15mV

A/D Resolution:1000000

Temperature coefficient:≤10ppm/c(typical)

Hardware Interface: RS-485 interface, half-duplex.

Software Protocol:  Free port protocol

Dimensions(mm):Rectangle: 55x49x18  /  Round: Ф32x8

A/D conversion, digital calibration, tare, zero setting/tracking, switch-on zero setting,anti-dithering.

All the parameters can be set through serial interface.

Module addresses are available from 0 to 31. Modules can work through bus communication.

Baud rate, parity bit and data output format can be set. 1200~38400bps.

Digital filtering: standard filtering or LPF.

Sampling speed: 3.125~400Hz.

Storage of the parameters with protection against power failure.

Operating Voltage: 9V DC(6.5V~12V). Operating Current:≤40mA.

Complete protection: wrong wiring protection, overvoltage protection, transient voltage suppression.

Operating temperature range: -40c~+70c. Storage temperature range: -60c~+90c





Product Dimension



Force Structure & Assembly Reference

ADS421 digital Load Cell-MANYYEAR TECHNOLOGY

ADS421 digital Load Cell

Product Application

ADS421 digital Load Cell-MANYYEAR TECHNOLOGYADS421 digital Load Cell-MANYYEAR TECHNOLOGYADS421 digital Load Cell-MANYYEAR TECHNOLOGY
