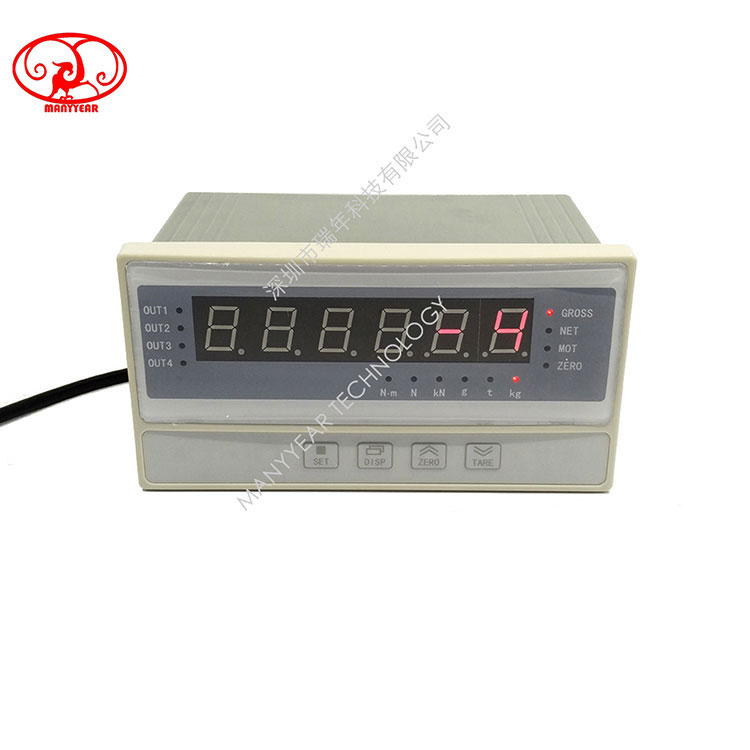

Product Description 0.05 -level measurement accuracy, display range -199999~999999 Ratio measurement, with 4 -wire strain sensor 10 -point broken line correction function 10 times / second or 80 times / second measurement and control speed, equipped with strain sensor Net weight, gross weight, peak value, valley value processing and switching display 1 -point input, different functions can be selected (clear, tare, allow output of comparison value, display lock or clear peak and valley values) Optional transmission and communication functions Aluminum shell Basic Specifications Basic Specifications | project | Specification | | voltage | AC power | 100 ~ 240V AC 50/60Hz | | Power consumption | AC power | Below 10W | | Allowable voltage range | 90%~110% of power supply voltage | | Insulation resistance | ≥100 MΩ (500V DC MEGA reference) | | Dielectric strength | 2000V AC (test condition: 50/60Hz, 1 minute) | | Anti-jamming | IEC61000-4-2 (electrostatic discharge), level Ⅲ IEC61000-4-4 (electrical fast transient burst), level Ⅲ IEC61000-4-5 (surge), level Ⅲ | | degree of protection | 160 × 84 size instrument: IP65 (product front panel protection) (GB/T42-2008) | | operating environment | ambient temperature | -10~55°C (storage: -25~65°C) | | environment humidity | 35 ~ 85 %R•H , no condensation | | installation location | Indoor, height < 2000m |
Iput specifications | project | Specification | | sensor power supply | DC 10V ± 2% , 20 0mA (MAX) | | input resistance | ＞ 10MΩ | | conversion method | Sigma-Delta | | Measurement and control speed | 10 times/s or 80 times/s (set by parameter) | | nonlinear | 0.01 %F•S | | gain drift | ＜ 10ppm /℃ | | Highest Display Accuracy | 1/100000 _ _ | | input signal | Ratio measurement , with 4-wire strain sensor | | contact input | 1 point external switch input, can be used for zero clearing, tare, allow comparison output, etc. |
Optional specifications | project | Specification | | compare output | R2 | 96 × 49.5 meters , optional 2-point relay output, | 250V AC/3A resistive load | | R4 / R8 | 160 × 84 size instrument , optional 4 / 8 point relay output, | | Analog output | A 1 | Current output (4~20)mA, (0~10)mA, (0~20)mA | Photoelectric isolation, resolution: 1/3000, load capacity: 600Ω | | A 2 | Voltage output (1~5)V, (0~5)V | | A3 | Voltage output (0~10)V | | A4 | Voltage output (±5)V | | A5 | Voltage output (±10)V | | Communication Interface | S 1 | RS232 interface, TC ASCII protocol | Optical isolation Response time: 500 μS (measured value) | | S 2 | RS485 interface, TC ASCII protocol | | M1 _ | RS232 interface, Modbus-RTU protocol | | M2 _ | RS485 interface, Modbus-RTU protocol | | Power Specifications | V0 | 1 00 ~ 240V AC ( 50 /60Hz) |
Code description | content | code description | | | | MEP-B5- | | 0.05-level measurement accuracy, 80 measurement and control speeds per second | | | Dimensions | AH | 160×84×113.5 Hole size: 152×76 | | | CH | 98×49.5×162.5 Hole size: 92×45 | | | Panel Specifications | | 6-digit LED, display range (-199999～999999) | | | input signal | | Proportional measurement, with 4-wire force sensor. Suitable for 0.4 ~ 4.0mV/V | | | contact input | K1 | 1 point external switch input | | | Alarm (option) | R2 | 2 relay outputs, 250V AC/3A, resistive load (CH only) | | | R4 | 4 relay outputs, 250V AC/3A, resistive load (AH only) | | | External power supply | | 10V±2%, 30ppm 150mA | | | Transmitter (option) | A1 | Current output (4-20) mA, (0-10) mA, (0-20) mA | | | (Resolution: 1/3000; current output load≦600Ω, voltage output load≧100KΩ ) | A2 | Voltage output (1-5) V, (0-5) V | | | Communication (option) | S1 | TC ASCII protocol RS232 | | | (Communication rate: 2400, 4800, 9600, 19200, 38400, 57600, 115200) | S2 | TC ASCII protocol RS485 | | | (Communication address: 0~99) | M1 | Modbus-RTU protocol RS232 | | | M2 | Modbus-RTU protocol RS485 | | | Power Specifications | V0 | 100-240V AC 50/60Hz | |
|
