MLC803K tank scale load cell

2021/11/15 MLC800 Shear Beam Load Cell Weighing Load Cell 1349 0

tank scale load cell,platform scale load cell,feeding scale load cell,belt scale load cell,forklift scale load cell,packing scale load cell

Model: MLC803K
Category: Shear beam load cell
Rated load: 0.25t,0.5t,1.0t,1.5t,2.0t,3.0t,5.0t,10t
Safe overload:120%; Ultimate overload: 150%
Material: alloy steel, stainless steel
Characteristic:tank scale load cell,platform scale load cell,feeding scale load cell,belt scale load cell,forklift scale load cell,packing scale load cell

we have prepared this form as below, hoping to help you.if you complete the sheet, please send to admin@manyyear.com. we will reply to you in 24Hr.

Product selection reference

Online Sales

Product Introduction Technical Documents

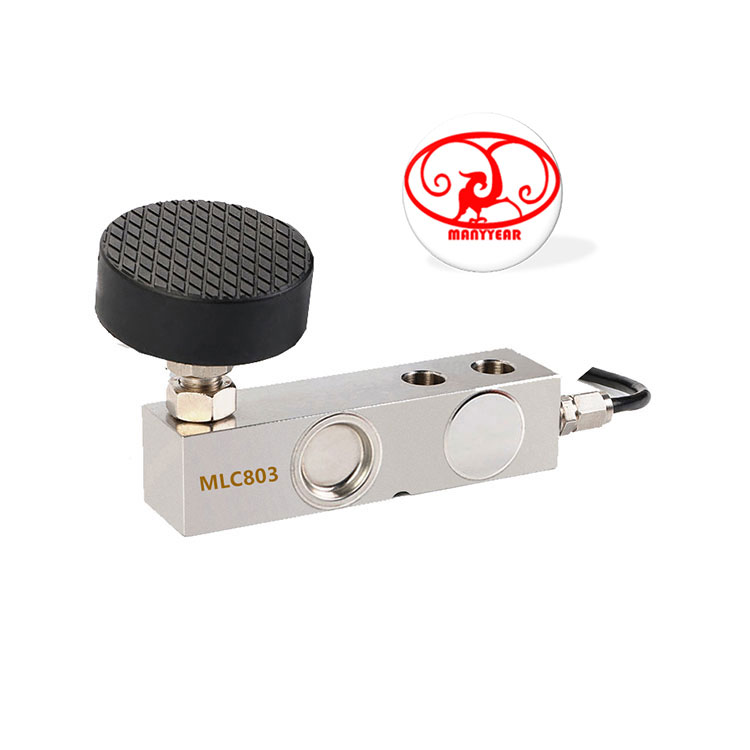

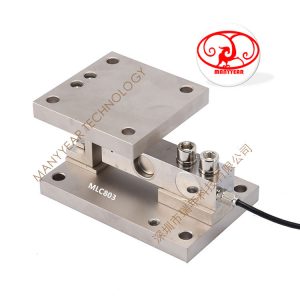

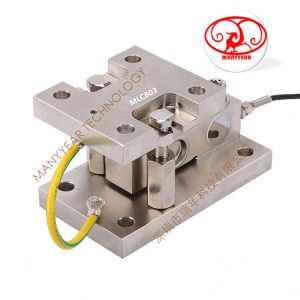

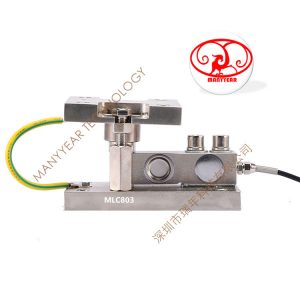

Product Picture Reference

MLC803K tank scale load cell

Technology Specification

Below spec is only for customer design reference,we can provide ODM product.

                                                                        MLC803K tank scale load cell

Model: MLC803K Category: Shear beam load cell Rated load:0~0.25/0.5/1/1.5/2/2.5/3/5/7.5/10ton Safe overload:120%; Ultimate overload: 150% Material: alloy steel, stainless steel Characteristic:tank scale load cell,platform scale load cell,feeding scale load cell,belt scale load cell,forklift scale load cell,packing scale load cell

Other Dimension
Load range	L	L1		L2	L3		L4	d		B	M
0.5~2ton	130	56.5		15.8	25.4		76.2	13.5		31.8	M12x1.75
2.5~5ton	171.5	77.2		19.1	38.1		95.3	20		38.1	M18x1.5
10ton	222.3	101.6		25.4	50.8		120.7	26.2		50.8	M24x2
Specification
Comprehensive error:			0.02%FS			Output resistance:			350±3Ω
Rated output:			2±0.003mV/V; 3±0.003mV/V;			Insulation resistance:			≥5000MΩ(100VDC)
Non-linearity:			0.03%FS			Excitation voltage:			9~12VDC
Hysteresis:			0.03%FS			Compensated temp:			-10~+40ºC
Repeatability:			0.02%FS			Use temperature:			-20~+55ºC
Creep:			0.02%FS/10Min			Temp effect on zero:			0.03%FS/10ºC
Zero balance:			±1%FS			Temp effect on span:			0.02%FS/10ºC
Input resistance:			350±5Ω			Defend grade:			IP66

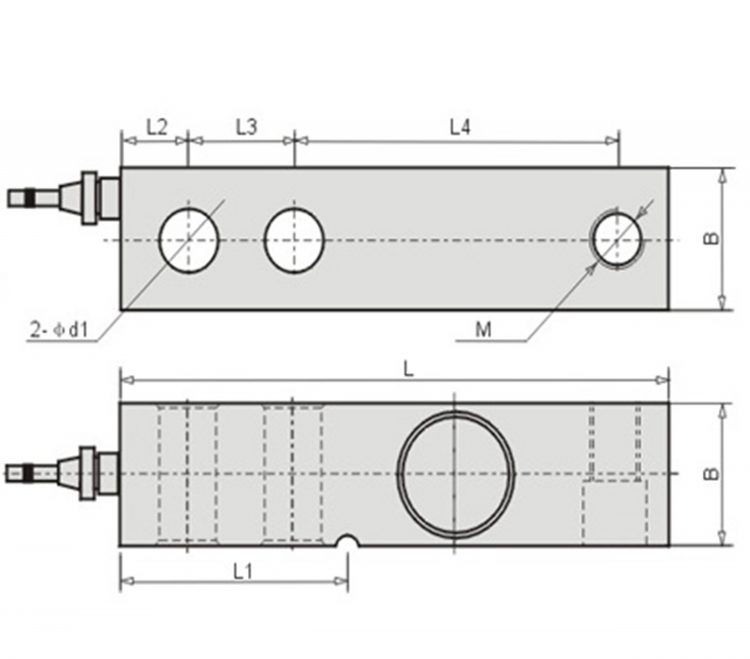

Product Dimension

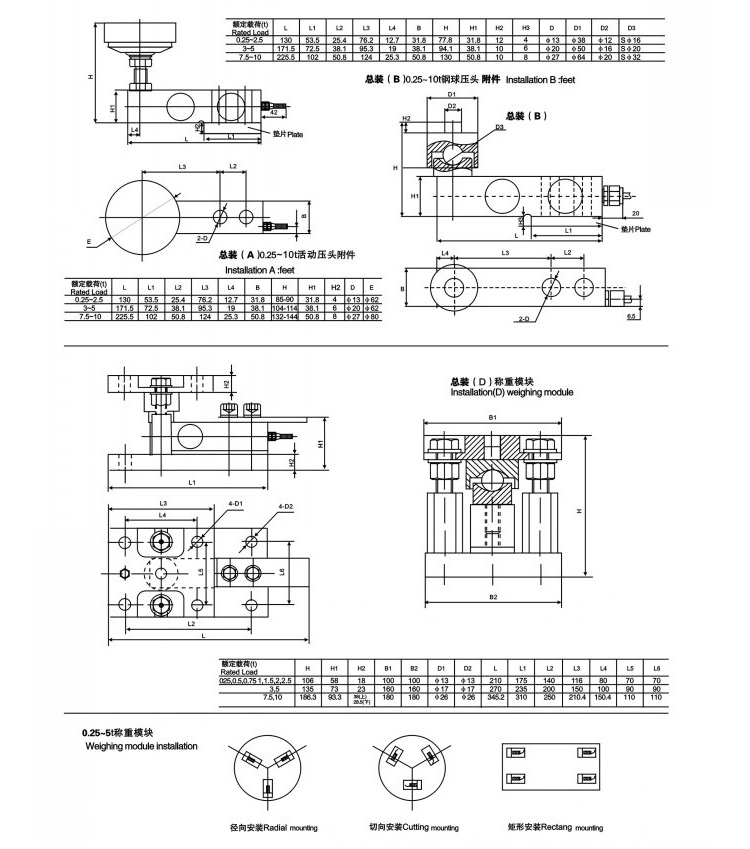

Force Structure & Assembly Reference
