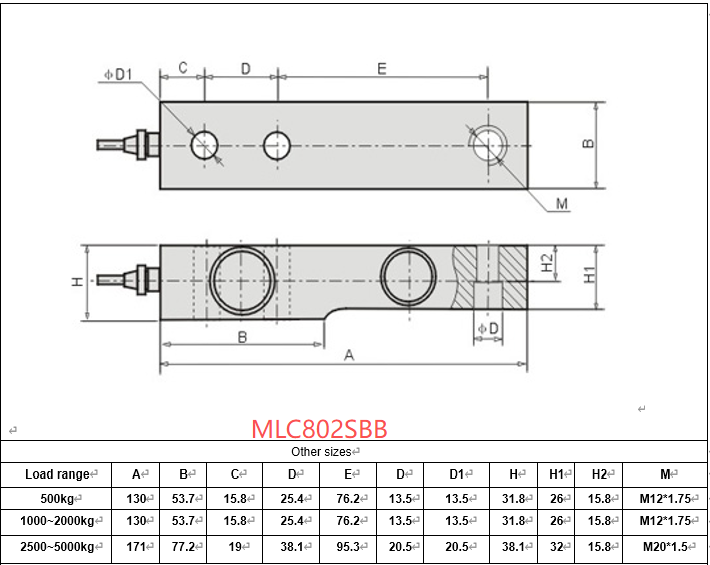

forklift scale load cell, 0.5–5 tons, alloy steel/stainless steel, 3 compact sizes. Shear beam design, anti-eccentric, suitable for packaging scale and industrial weighing, 120% safe overload.
Model: MLC802SBB
Catalog: Shear beam load cell
Rated load: 0.5,1,2,2.5,5ton
Safe overload:120%; Ultimate overload:150%
Material: alloy steel, stainless steel
Characteristic: shear beam load cell,platform scale load cell,feeding scale load cell,tank scale load cell,forklift scale load cell
| Technical Parameters | |||
| Comprehensive error: | 0.03%FS | Output resistance: | 350±3Ω |
| Rated output: | 3±0.003mv/v | Insulation resistance: | ≥5000MΩ (100VDC) |
| Nonlinearity: | 0.03%FS | Excitation voltage: | 9~12VDC |
| Lag: | 0.03%FS | Compensation temperature: | -10~+40 C |
| Repeatability: | 0.02%FS | Operating temperature: | -20~+55 C |
| Creep: | 0.05%FS/10MIN | Effect of Temp. on zero point | 0.03%FS/10ºC |
| Zero balance: | ±1%FS | Effect of Temp. on sensitivity | 0.02%FS/10ºC |
| Input resistance: | 350±5Ω | Protection level: | IP67 protection level & IP68 |
