MLC650 aluminium alloy load cell

2021/11/15 Weighing Load Cell MLC600 Parallel Beam Load Cell 1394 0

platform scale load cell,pricing scale load cell,electronic scale load cell,aluminium alloy load cell

Model: MLC650
Category: Single point load cell
Range: 5kg, 10kg, 15kg, 20kg, 50kg, 100kg, 120kg, 200kg, 300kg
Dimension: 150*40*25mm
Material: alloy aluminum
Characteristic: platform scale load cell,pricing scale load cell,electronic scale load cell,aluminium alloy load cell

Product selection reference

Product Introduction Technical Documents

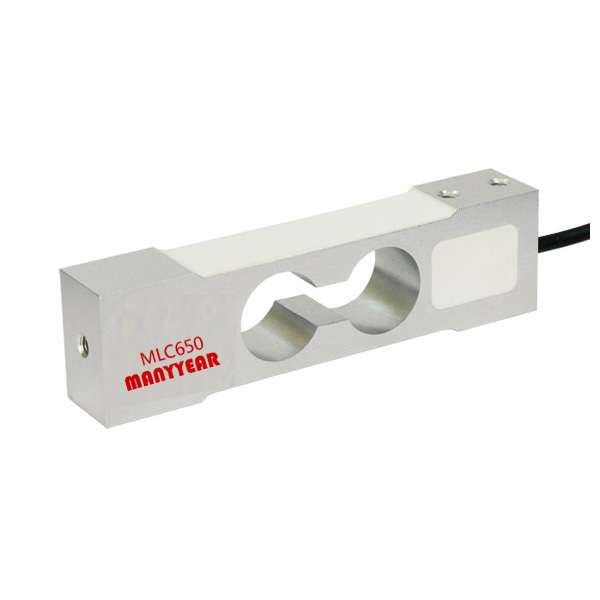

Product Picture Reference

MLC650 aluminium alloy load cell

Technology Specification

Below spec is only for customer design reference,we can provide ODM product.

MLC650 aluminium alloy load cell

Model: MLC650 Category: Single point load cell Range: 5kg, 10kg, 15kg, 20kg, 50kg, 100kg, 120kg, 200kg, 300kg Dimension: 1504025mm Material: alloy aluminum Characteristic: platform scale load cell,pricing scale load cell,electronic scale load cell,aluminium alloy load cell

Specification
Comprehensive error:	0.017%FS	Output resistance:	350±3Ω
Rated output:	2±0.1mV/V	Insulation resistance:	≥5000MΩ(100VDC)
Non-linearity:	0.017%FS	Excitation voltage:	9~12VDC
Hysteresis:	0.017%FS	Compensated temp:	-10~+40ºC
Repeatability:	0.01%FS	Use temperature:	-20~+60ºC
Creep:	0.017%FS/10Min	Temp effect on zero:	0.017%FS/10ºC
Zero balance:	±1%FS	Temp effect on span:	0.014%FS/10ºC
Input resistance:	405±10Ω	Defend grade:	IP65

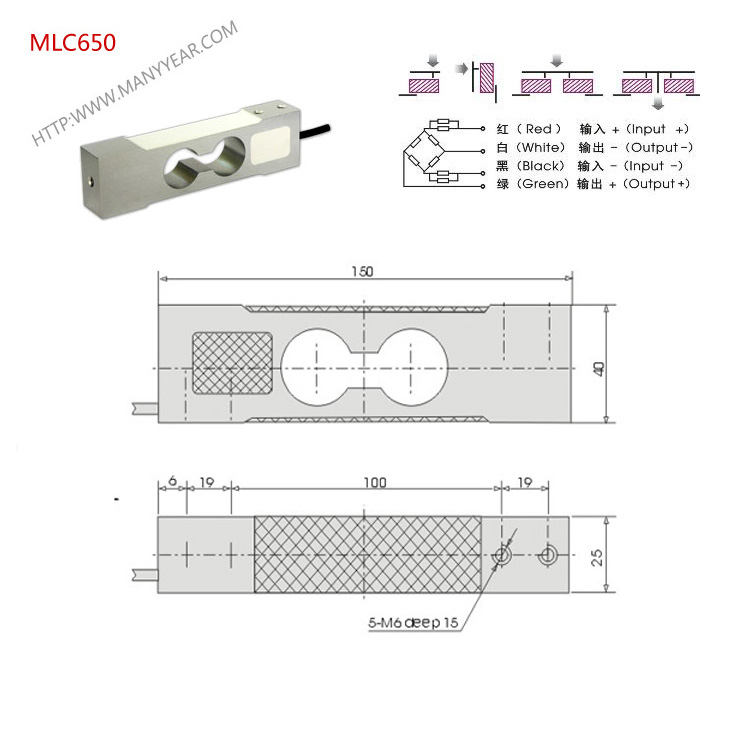

Product Dimension

Force Structure & Assembly Reference
