batching scale load cell, 0.5t, 1t, 2t, 3t, 5t, 10t, 20 tons, alloy steel/stainless steel, 4 sizes available. Cantilever beam design, anti-lateral force, suitable for packaging scale and industrial weighing.
Model: MLC801SBA
Category: Shear beam load cell
Range:0.5t,1t,2t,3t,5t,10t,20t

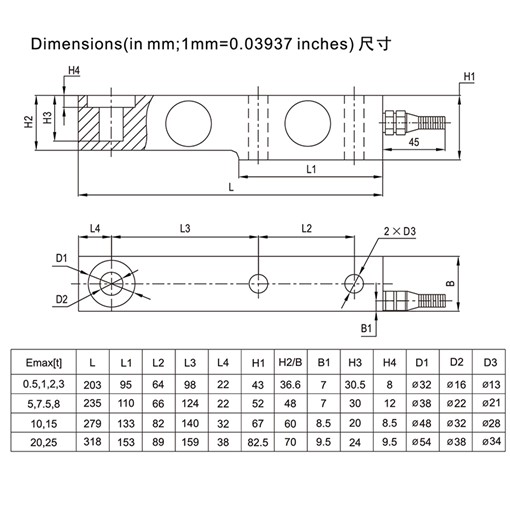

Dimension:203*43*37mm; 235*52*48mm; 279*67*60mm; 318*82*70mm
Material: alloy steel, stainless steel

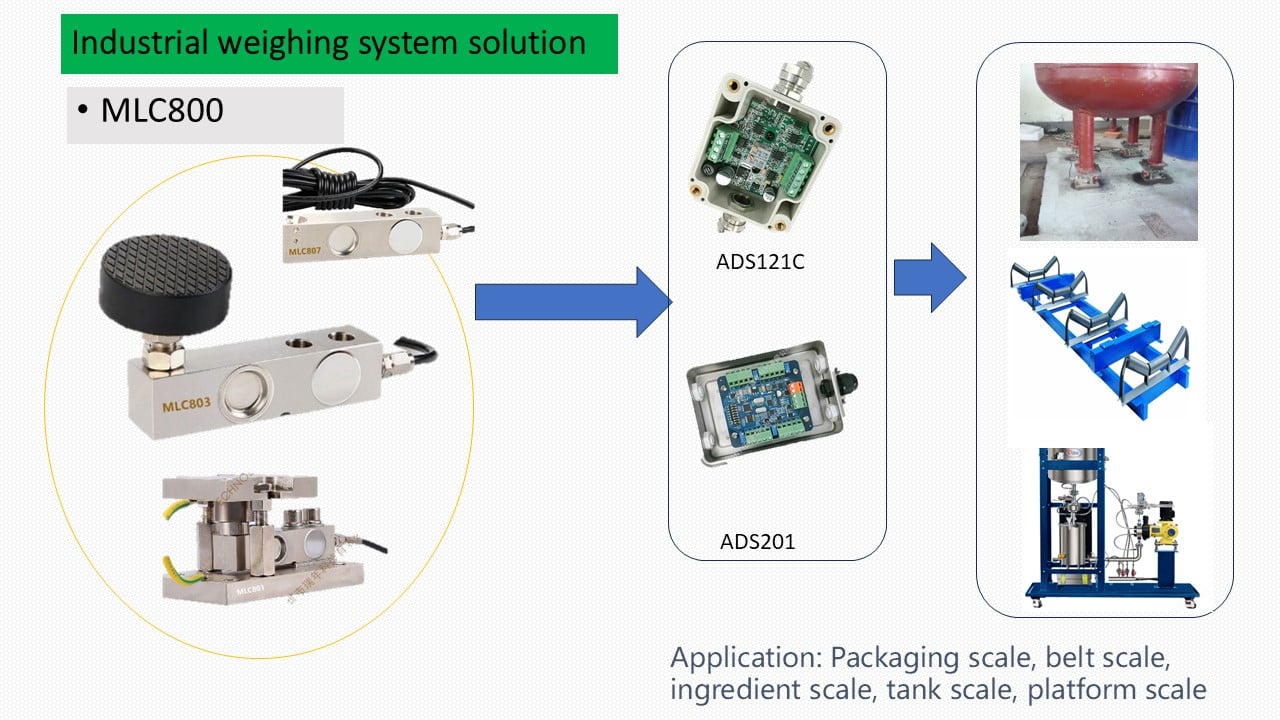

Characteristic: platform scale load cell, feeding scale load cell, belt scale load cell, industry weighing system, packing scale load cell, batching scale load cell.
| Technical Parameters | |||
| Comprehensive error: | 0.03%FS | Output resistance: | 350±3Ω |
| Rated output: | 2±0.003mV/V | Insulation resistance: | ≥5000MΩ (100VDC) |
| Nonlinearity: | 0.03%FS | Excitation voltage: | 9~12VDC |
| Lag: | 0.03%FS | Compensation temperature: | -10~+40 C |
| Repeatability: | 0.02%FS | Operating temperature: | -20~+55 C |
| Creep: | 0.03%FS/10 minutes | Effect of Temp. on zero point | 0.03%FS/10ºC |
| Zero balance: | ±1%FS | Effect of Temp. on sensitivity | 0.02%FS/10ºC |
| Input resistance: | 350±5Ω | Protection level: | IP66 protection level |
