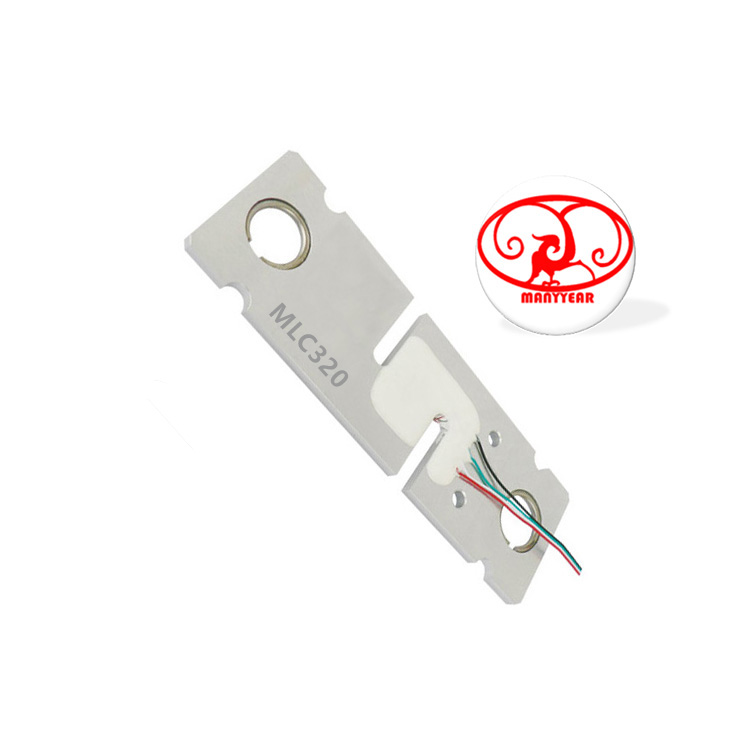

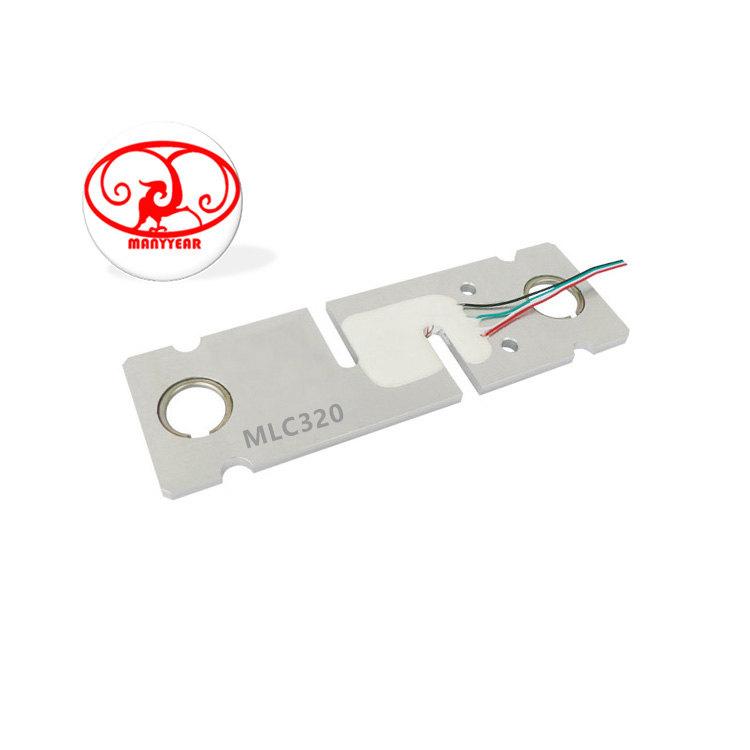

MLC320 Plate ring tension force sensor, 100-400KG, 80x40x4mm, 3 materials, for industrial tension & pull measurement, high precision and easy installation.
Model: MLC320
Category: Plate ring forcr sensor
Range: 100,150,200,250,300,350,400KG

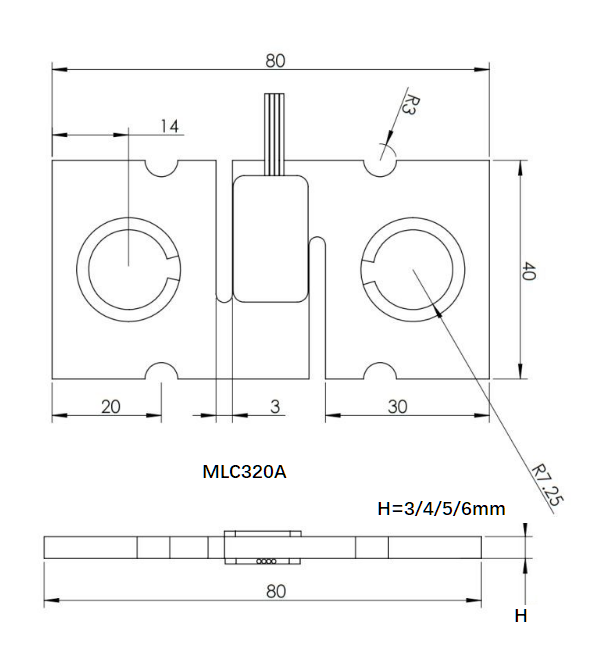

Size: 80*40*4MM
Material: Alloy steel, Stainless steel, Aluminium alloy
Application: Tensile testing machine, hook scale load cell, safety overload test
| Technical specifications | |||
| Comprehensive error: | 0.1%FS | Output resistance: | 352±5Ω |
| Rated output: | 1.0,1.5,2.0±0.15mv/v | Insulation resistance: | ≥5000MΩ(100VDC) |
| Nonlinearity: | 0.1%FS | Operating Voltage: | 9~12VDC |
| Lag: | 0.1%FS | Compensation temperature: | -10~+40 ℃ |
| Repeatability: | 0.1%FS | Operating temperature: | -20~+55 ℃ |
| Creep: | 0.1%FS/10MIN | Effect of Temp. on zero point: | 0.1%FS/10 ℃ |
| Zero balance: | ±1%FS | Effect of Temp. on sensitivity: | 0.1%FS/10 ℃ |
| Input resistance: | 380±10Ω | Protection level: | IP66 & IP68 |
