MLC812 Corrosion resistant and easy to clean sanitary stainless steel weighing sensors MLC812 Corrosion resistant and easy to clean sanitary stainless steel weighing sensors
MLC812 Corrosion resistant and easy to clean sanitary stainless steel weighing sensors
MLC812 Corrosion resistant and easy to clean sanitary stainless steel weighing sensors-MANYYEAR TECHNOLOGY
MLC812 Corrosion resistant and easy to clean sanitary stainless steel weighing sensors-MANYYEAR TECHNOLOGY
MLC812 Corrosion resistant and easy to clean sanitary stainless steel weighing sensors-MANYYEAR TECHNOLOGY

MLC812 Corrosion resistant and easy to clean sanitary stainless steel weighing sensors

MLC812 Corrosion resistant and easy to clean sanitary stainless steel weighing sensors

Model: MLC812
Category: Shear beam load cell
Rated load: 5,10, 20, 30, 50, 100, 200, 300, 350, 500kg
Safe overload:150%; Ultimate overload: 200%
Material: alloy steel, stainless steel
Characteristic: feeding scale load cell,belt scale load cell,packing scale load cell,blending scale load cell,batch scale load cell


we have prepared this form as below, hoping to help you.if you complete the sheet, please send to admin@manyyear.com. we will reply to you in 24Hr.

Product selection reference

Sales Online

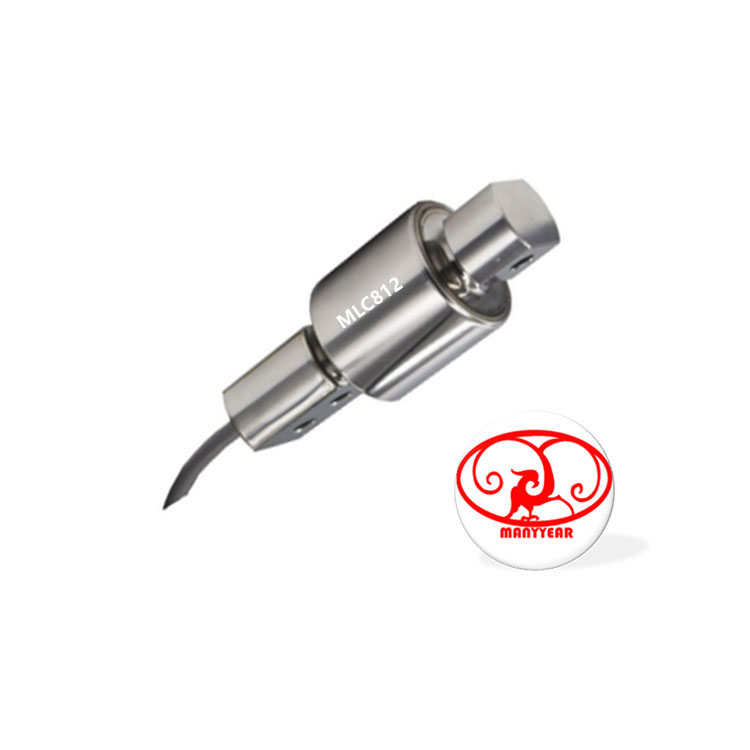

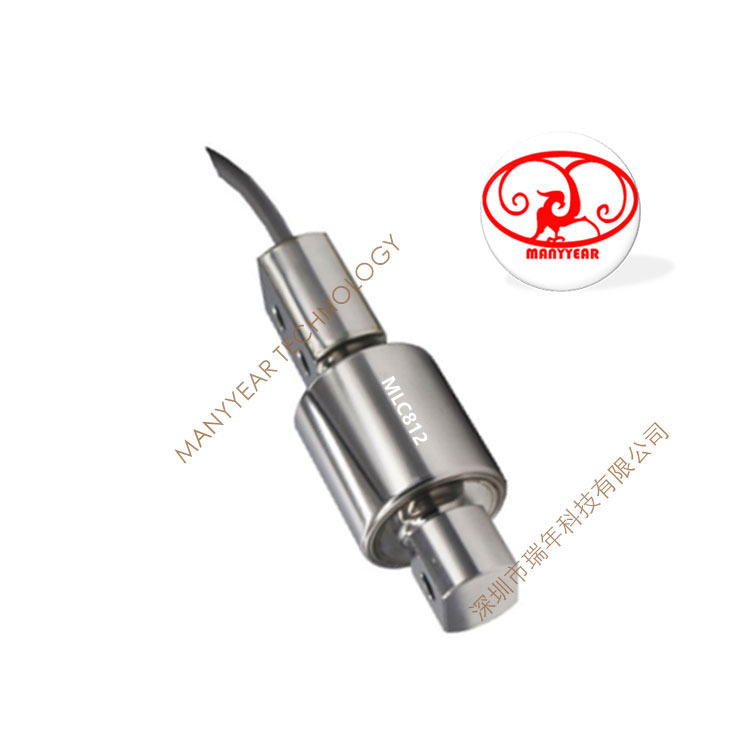

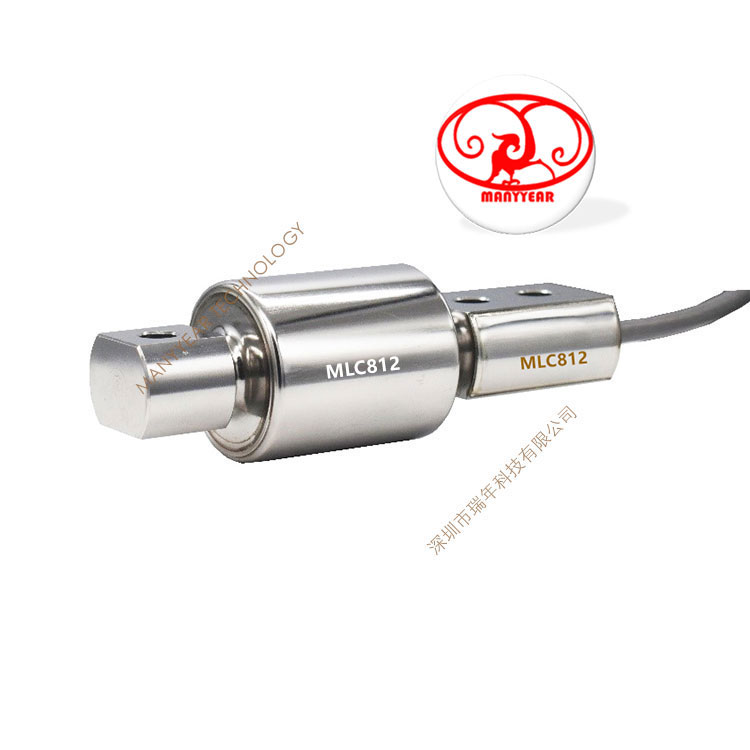

Product Picture Reference



MLC812 Corrosion resistant and easy to clean sanitary stainless steel weighing sensors-MANYYEAR TECHNOLOGY

Technology Specification

Below spec is only for customer design reference,we can provide ODM product.
                                                          MLC810 high precision belt scale load cell

Model: MLC810

Category: Shear beam load cell

Rated load: 5,10, 20, 30, 50, 100, 200, 300, 350, 500kg

Safe overload:150%; Ultimate overload: 200%

Material: alloy steel, stainless steel

Characteristic:feeding scale load cell,belt scale load cell,packing scale load cell,blending scale load cell,batch scale load cell

 Other Dimension
Rated load10~200kg250~500kg
“d”8.2mm10.3mm
Specification
Comprehensive error:0.02%FSOutput resistance:350±3ohm
Rated output:2±0.003mV/VInsulation resistance:≥5000MΩ(100VDC)
Non-linearity:0.017%FSExcitation voltage:9~12VDC
Hysteresis:0.02%FSCompensated temp:-10~+40ºC
Repeatability:0.01%FSUse temperature:-20~+55ºC
Creep:0.02%FS/10MinTemp effect on zero:0.02%FS/10ºC
Zero balance:±1%FSTemp effect on span:0.014%FS/10ºC
Input resistance:350±5ohmDefend grade:IP66

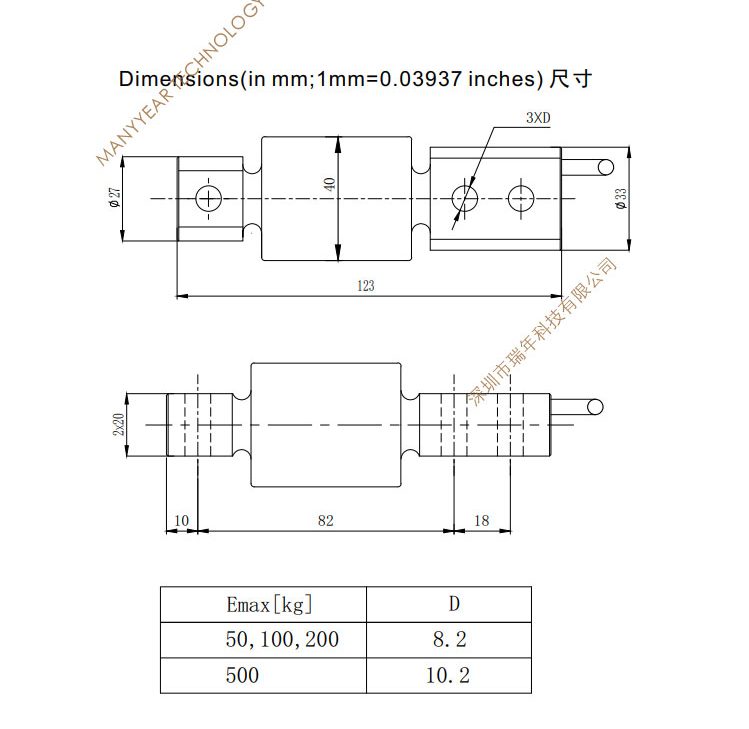

Product Dimension

MLC812 Corrosion resistant and easy to clean sanitary stainless steel weighing sensors-MANYYEAR TECHNOLOGY

Force Structure & Assembly Reference

MLC812 Corrosion resistant and easy to clean sanitary stainless steel weighing sensors-MANYYEAR TECHNOLOGY

Product Application

MLC812 Corrosion resistant and easy to clean sanitary stainless steel weighing sensors-MANYYEAR TECHNOLOGYMLC812 Corrosion resistant and easy to clean sanitary stainless steel weighing sensors-MANYYEAR TECHNOLOGYMLC812 Corrosion resistant and easy to clean sanitary stainless steel weighing sensors-MANYYEAR TECHNOLOGY
