batching scale load cell, 50-1000kg ton small range, alloy steel/stainless steel, Shear beam design, anti-eccentric, fits packaging scale and industrial weighing.

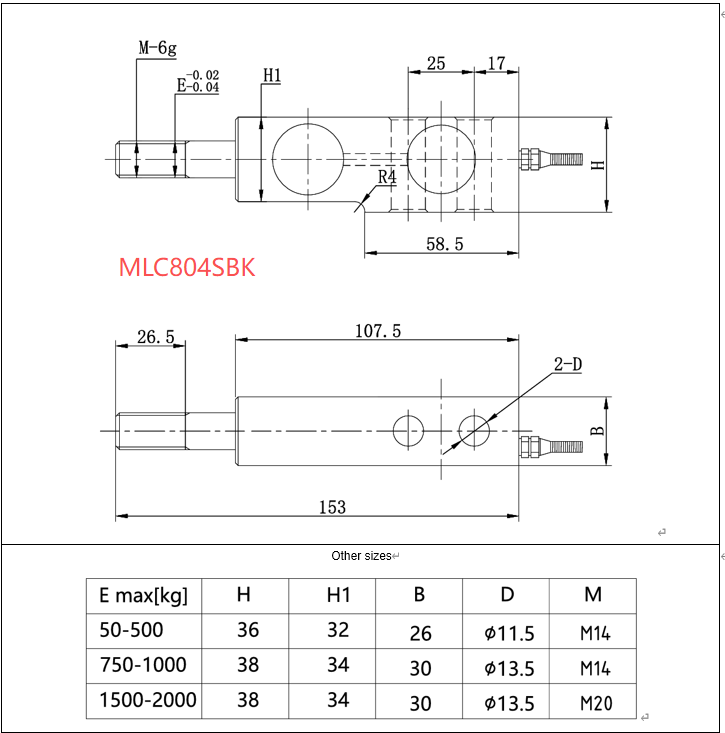

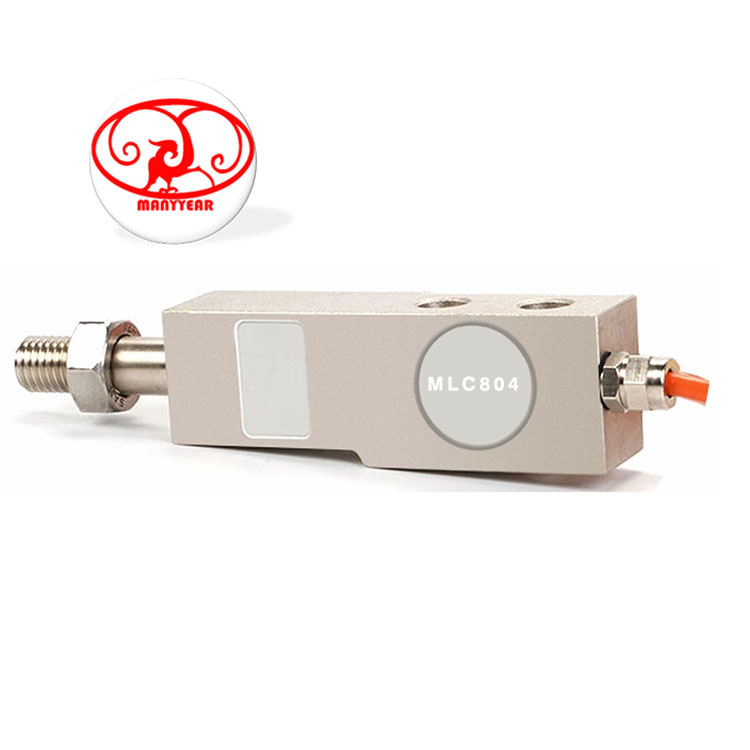

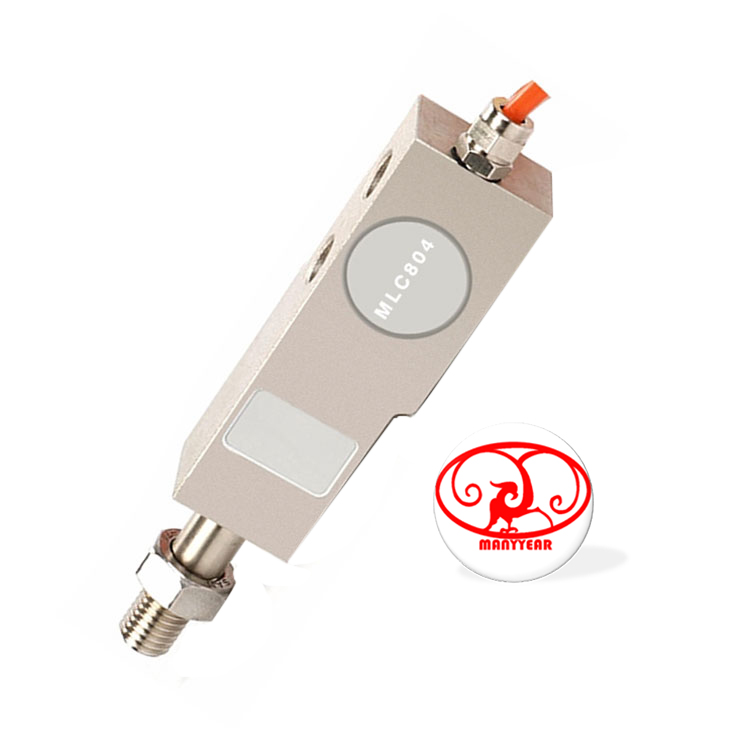

Model:MLC804sbk
Category: Shear beam load cell
Rated load: 50,100,200,300,500,750,1000kg
Material: alloy steel, stainless steel
Characteristic: platform scale load cell,feeding scale load cell,belt scale load cell,packing scale load cell,blending scale load cell
| Technical Parameters | |||
| Comprehensive error: | 0.02%FS | Output resistance: | 352±3Ω |
| Rated output: | 1.8±0.003&3±0.003mv/v | Insulation resistance: | ≥5000MΩ(100VDC) |
| Nonlinearity: | 0.03%FS | Excitation voltage: | 9~12VDC |
| Lag: | 0.03%FS | Compensation temperature: | -10~+40ºC |
| Repeatability: | 0.02%FS | Operating temperature: | -20~+55ºC |
| Creep: | 0.02%FS/10Min | Effect of Temp. on zero point | 0.03%FS/10ºC |
| Zero balance: | ±1%FS | Effect of Temp. on sensitivity | 0.02%FS/10ºC |
| Input resistance: | 400±5Ω | Protection level: | IP67&IP68 |
