MLC611N vending machine weighing load cell

2021/11/16 Weighing Load Cell MLC900 Micro Load Cell 2493 0

kitchen scale load cell,portable scale load cell,postal scale load cell,vending machine weighing load cell

Model: MLC611N
Category: Micro load cell
Range: 1~30kg
Dimension: 80*12.7*12.7mm
Material: alloy aluminum
Characteristic: kitchen scale load cell,portable scale load cell,postal scale load cell,vending machine weighing load cell

Product selection reference

Sales Online

Product Introduction Technical Documents

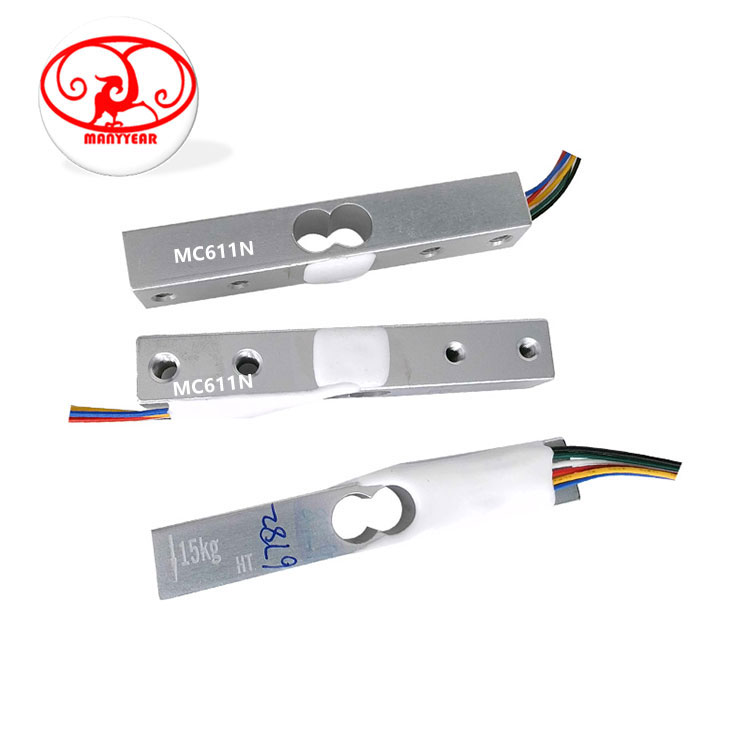

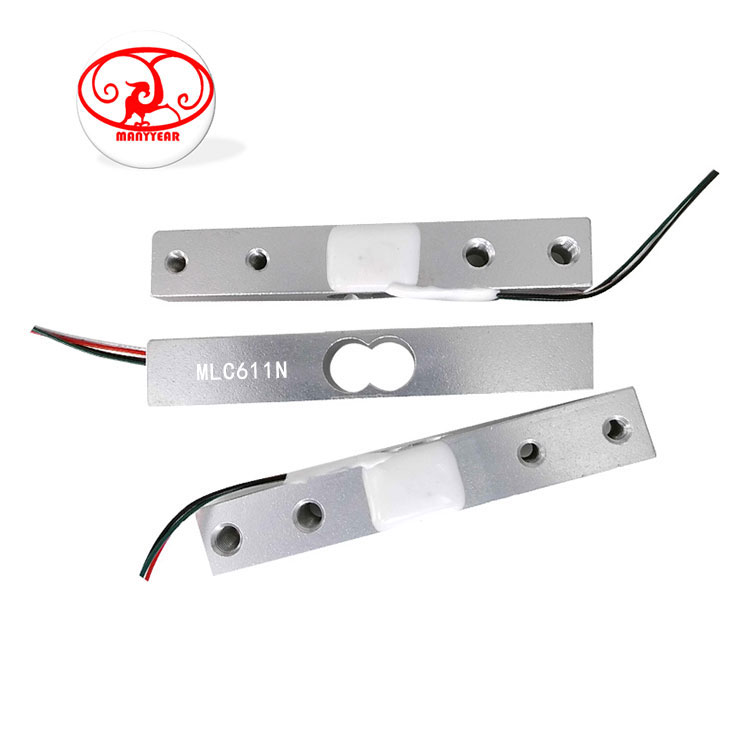

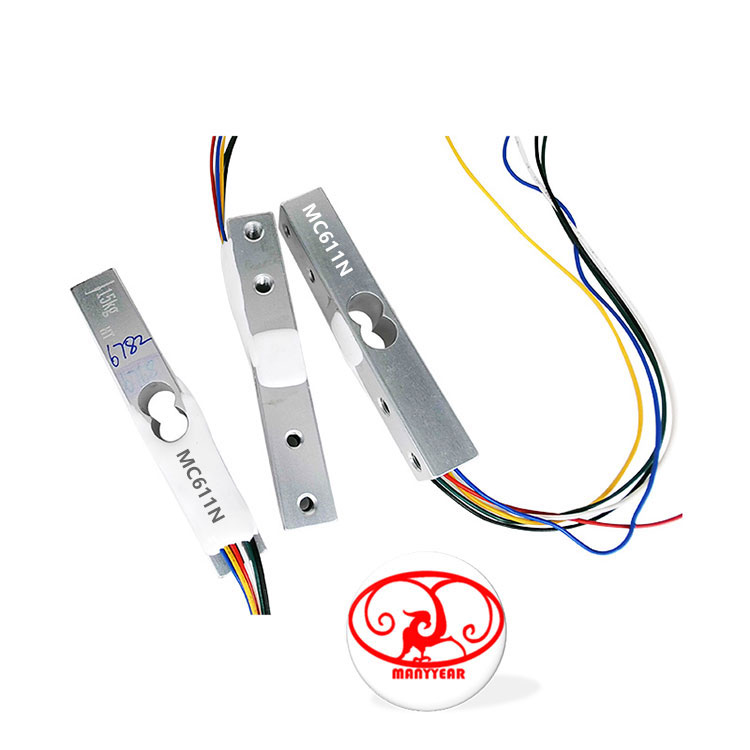

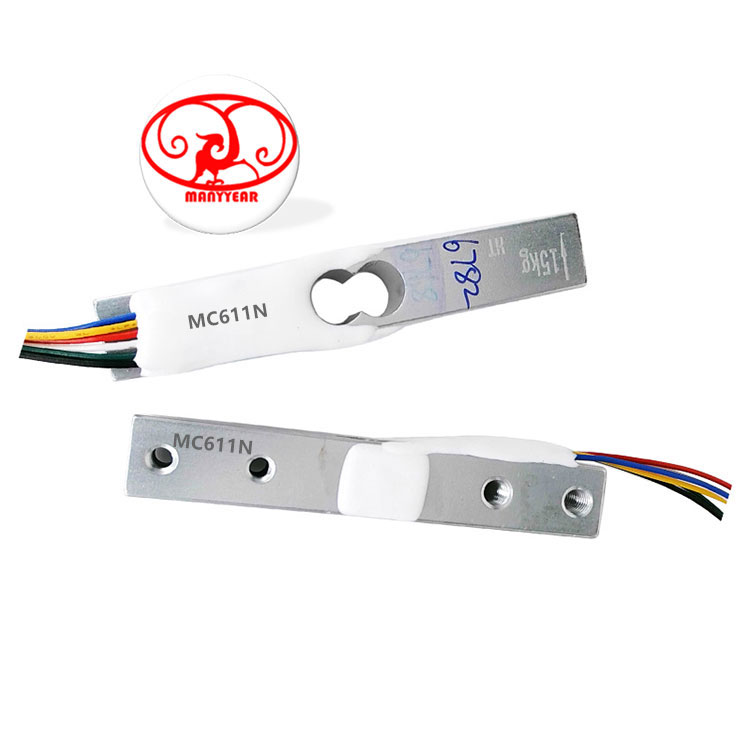

Product Picture Reference

MLC611N vending machine weighing load cell

Technology Specification

Below spec is only for customer design reference,we can provide ODM product.

MLC611N vending machine weighing load cell

Model: MLC611N Category: Micro load cell Range: 1~30kg Dimension: 8012.712.7mm Material: alloy aluminum Characteristic: kitchen scale load cell,portable scale load cell,postal scale load cell,vending machine weighing load cell

Specification
Comprehensive error:	0.05%FS	Output resistance:	1000±10Ω
Rated output:	1±0.15mV/V	Insulation resistance:	≥2000MΩ(100VDC)
Non-linearity:	0.05%FS	Excitation voltage:	3~12VDC
Hysteresis:	0.05%FS	Compensated temp:	-10~+40ºC
Repeatability:	0.05%FS	Use temperature:	-20~+55ºC
Creep:	0.05%FS/10Min	Temp effect on zero:	0.5%FS/10ºC
Zero balance:	±0.1mV/V	Temp effect on span:	0.05%FS/10ºC
Input resistance:	1000±10Ω	Defend grade:	IP66

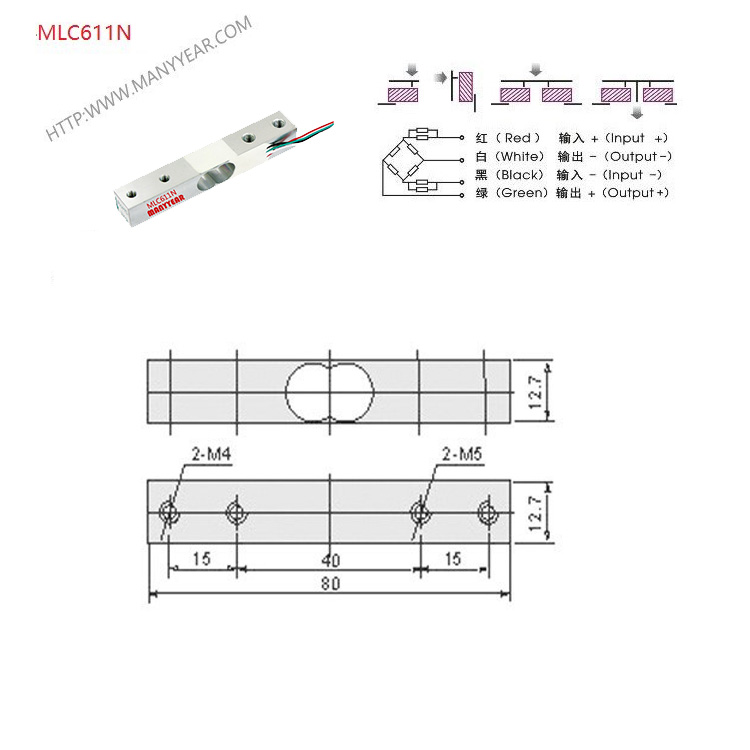

Product Dimension

Force Structure & Assembly Reference
