MLC304-truck scale weight sensor MLC304-truck scale weight sensor
MLC304-truck scale weight sensor

MLC304-truck scale weight sensor

truck scale weight sensor,hanging scales weight sensor,crane scales weight sensor

Model: MLC304
Category: Tension load cell
Range: 1t,1.5t,2t,5t,7.5t,10t,20t
Dimension: 70*80*25/95*108*25/125*175*50/150*188*60mm
Material: Alloy steel,stainless steel
Application: truck scale weight sensor,hanging scales weight sensor,crane scales weight sensor



Product selection reference

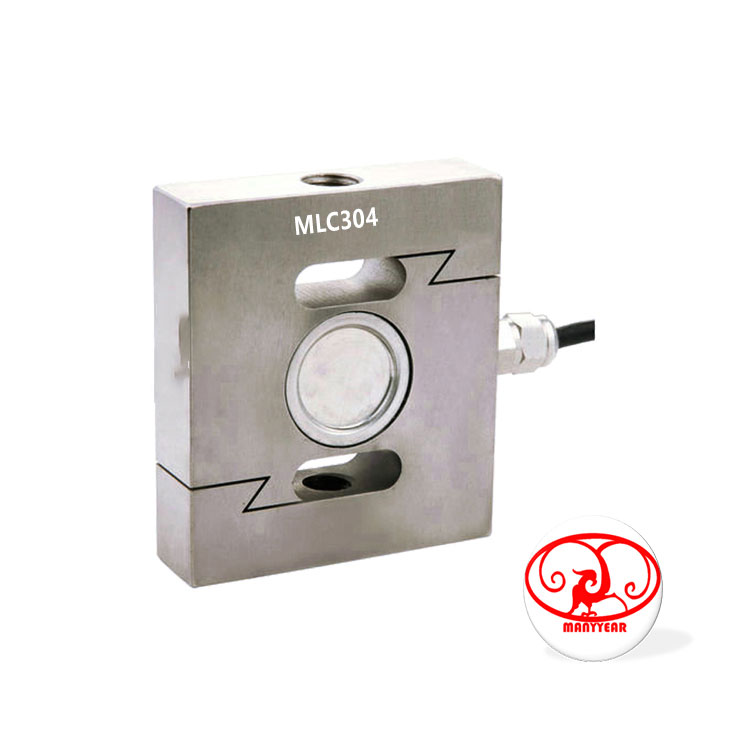

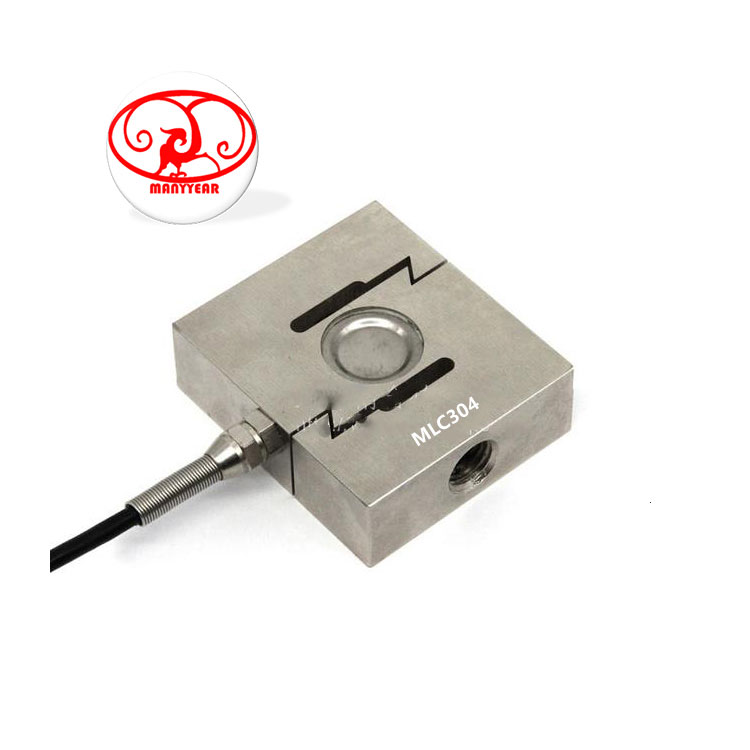

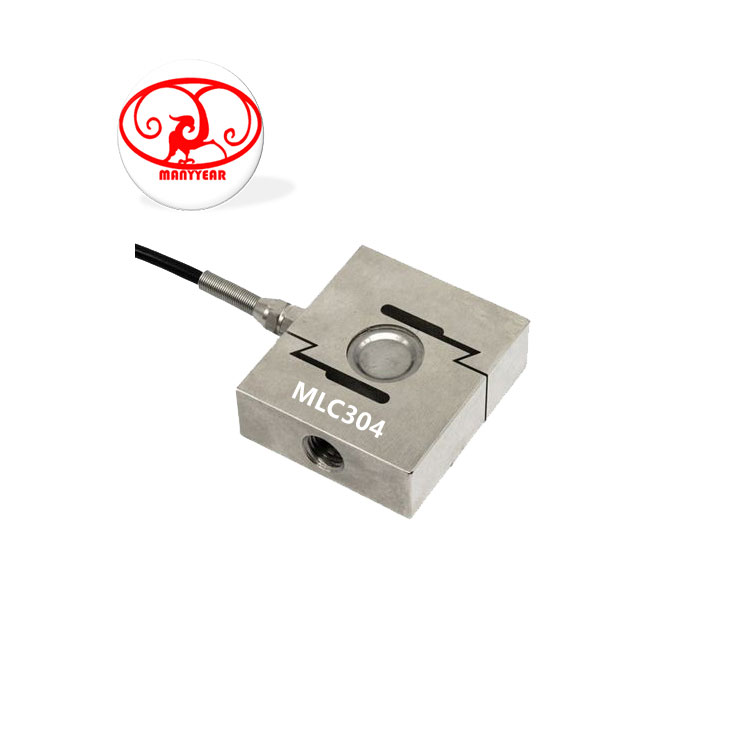

Product Picture Reference

MLC304-truck scale weight sensor-MANYYEAR TECHNOLOGY

Technology Specification

Below spec is only for customer design reference. we can provide ODM product.

MLC304-Crane scale tension load cell

Model: MLC304

Category: Tension load cell

Range: 1t,1.5t,2t,5t,7.5t,10t,20t

Dimension: 70*80*25/95*108*25/125*175*50/150*188*60mm

Material: alloy steel, stainless steel

Application: hanging scales, crane scale, tension or compression test

       Other Dimension
Load rangeTon1~1.52~57.5~1020
KLB2~35~1015~2040
MMetricM12x1.75M18x1.5M30x2M39x2
British1/2-20UNF3/4-16UNF5/4-12UNF3/2-12UNF
A7095125150
B80108175188
C25255060
         Specification
Comprehensive error:0.03%FSOutput resistance:350±5Ω
Rated output:2±0.002mv/vInsulation resistance:≥5000MΩ(100VDC)
Non-linearity:0.03%FSExcitation voltage:9~12VDC
Hysteresis:0.03%FSCompensated temp:-10~+40ºC
Repeatability:0.02%FSUse temperature:-20~+65ºC
Creep:0.03%FS/10MinTemp effect on zero:0.03%FS/10ºC
Zero balance:±1%FSTemp effect on span:0.02%FS/10ºC
Input resistance:350±5ΩDefend grade:IP66



Product Dimension

MLC304-truck scale weight sensor-MANYYEAR TECHNOLOGY

Force Structure & Assembly Reference

MLC304-truck scale weight sensor-MANYYEAR TECHNOLOGY

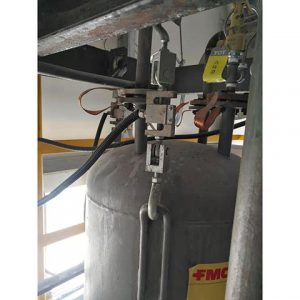

Product Application

MLC304-truck scale weight sensor-MANYYEAR TECHNOLOGY

MLC304-truck scale weight sensor-MANYYEAR TECHNOLOGY

load cell, weighing load cell, weight sensor,

MLC304-truck scale weight sensor-MANYYEAR TECHNOLOGY
