MLC204E miniature force load cell,5kg-200kg, Ø10mm,Ø11mm,Ø15mm,Ø20mm,Ø25mm,Ø50mm, dual materials, sensitive, for robot intelligent switch micro measurement.
Model: MLC204E
Category: Button load cell
Range: 5kg,10kg,20kg,30kg,50kg,100kg,200kg

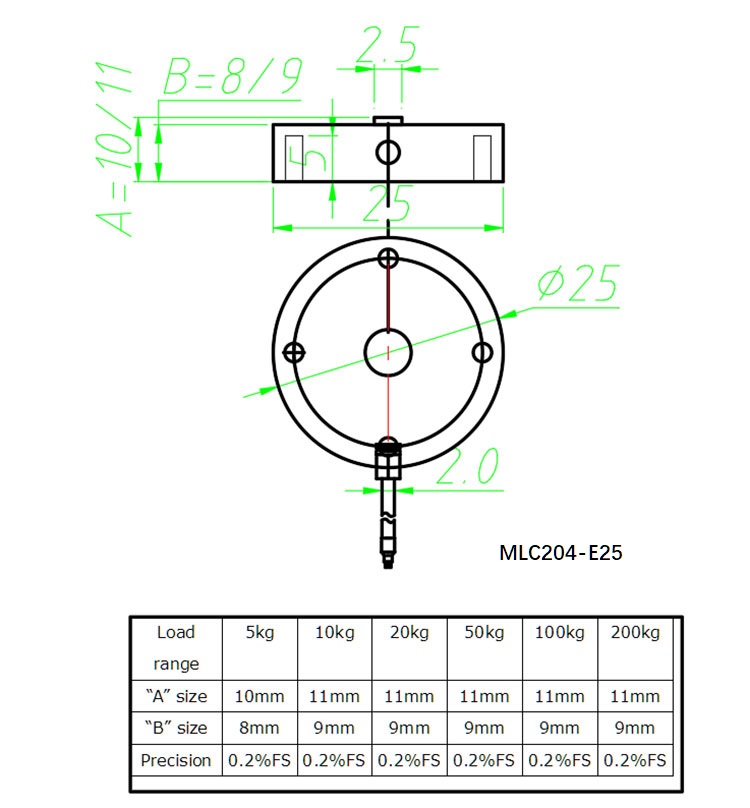

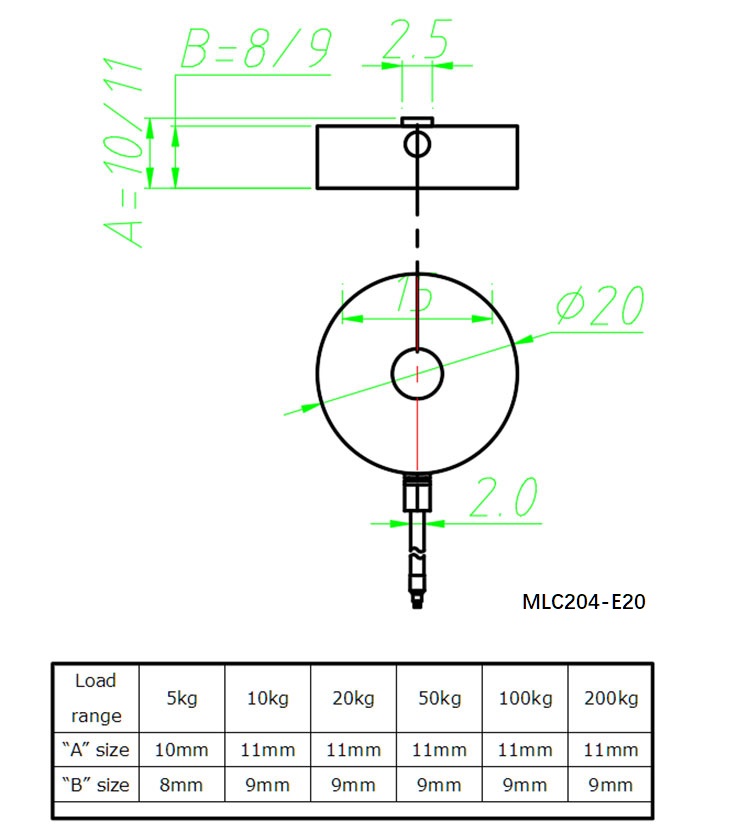

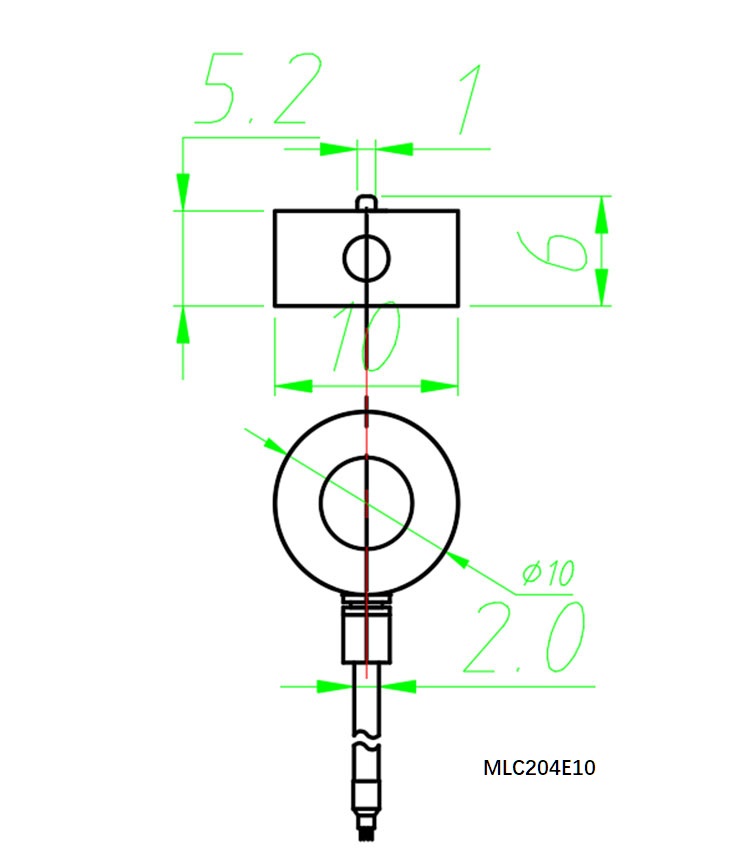

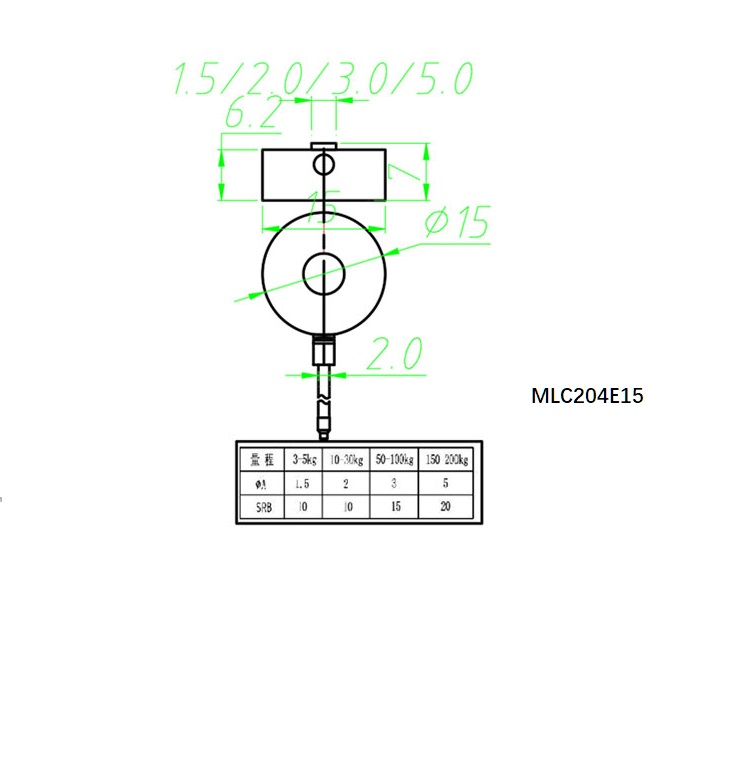

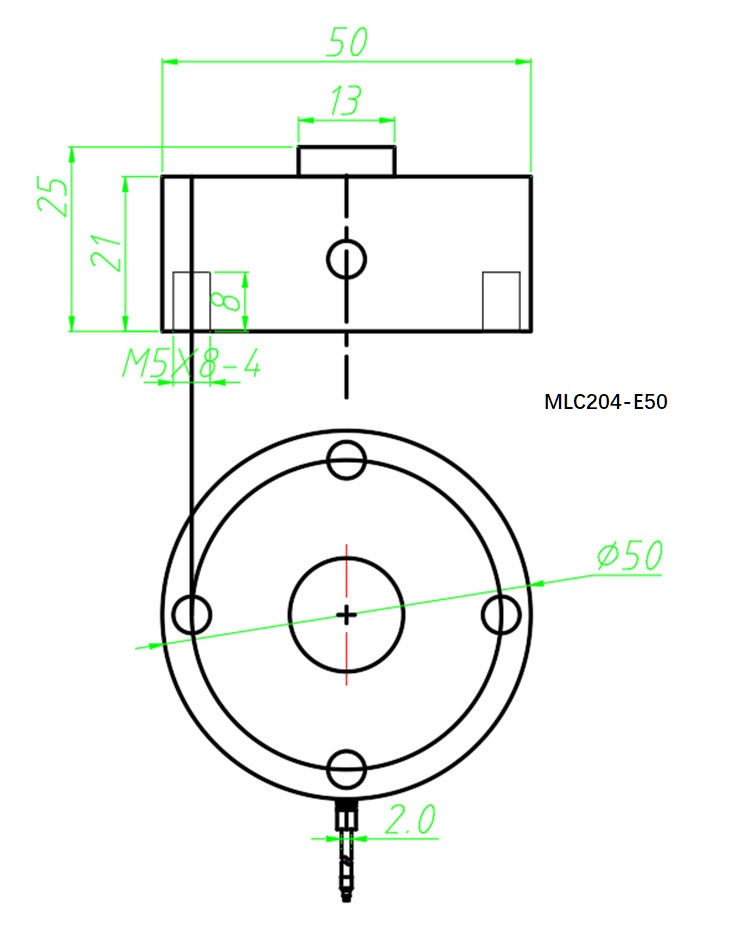

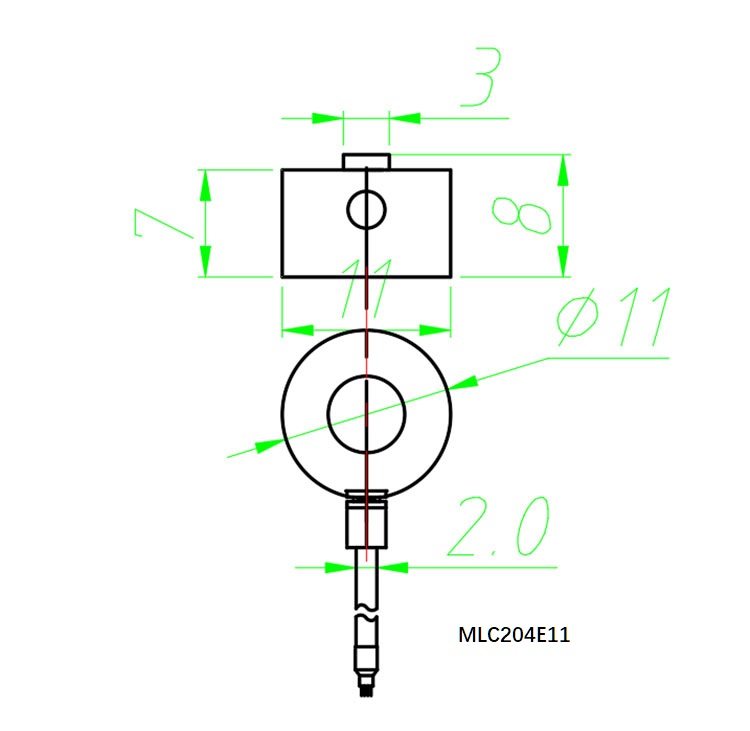

Dimension: Ø10mm,Ø11mm,Ø15mm,Ø20mm,Ø25mm,Ø50mm
Material: stainless steel
Safety overload:120%F.S; Ultimate overload:200%F.S
Characteristic: miniature button load cell, miniature force load cell, micro force sensor
| Technical specifications | |||
| Comprehensive error: | 0.5%FS | Output resistance: | 1000±10Ω |
| Rated output: | 0.5-1.5mV/V | Insulation resistance: | ≥2000MΩ(100VDC) |
| Nonlinearity: | 0.5%FS | Operating Voltage: | 3-5VDC |
| Lag: | 0.5%FS | Compensation temperature: | -10~+40ºC |
| Repeatability: | 0.5%FS | Operating temperature: | -30~+70ºC |
| Creep: | 0.3%FS/30min | Effect of Temp. on zero point: | 0.2%FS/10ºC |
| Zero Balance: | ±2%FS | Effect of Temp. on sensitivity: | 0.2%FS/10ºC |
| Input resistance: | 1000±10Ω | Protection level: | IP66 |
