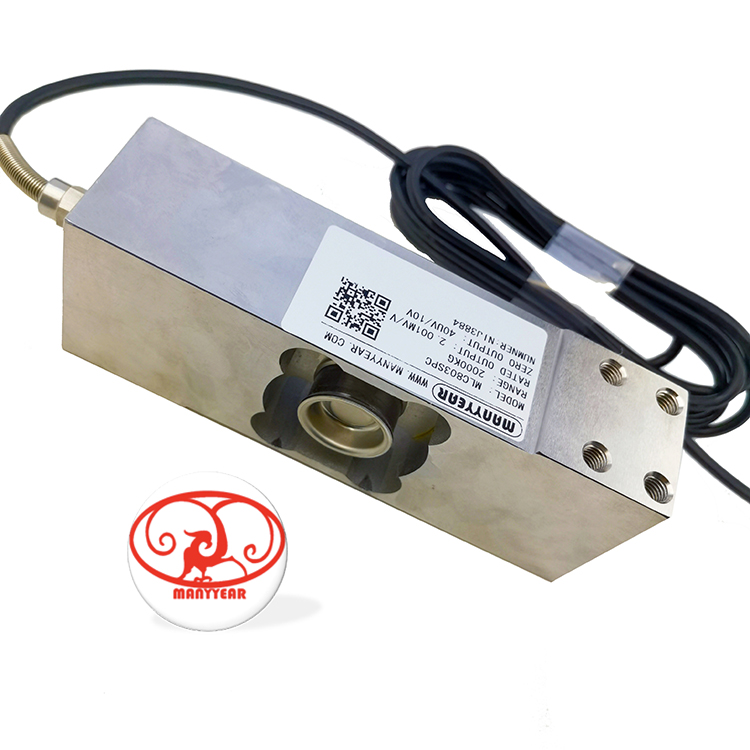

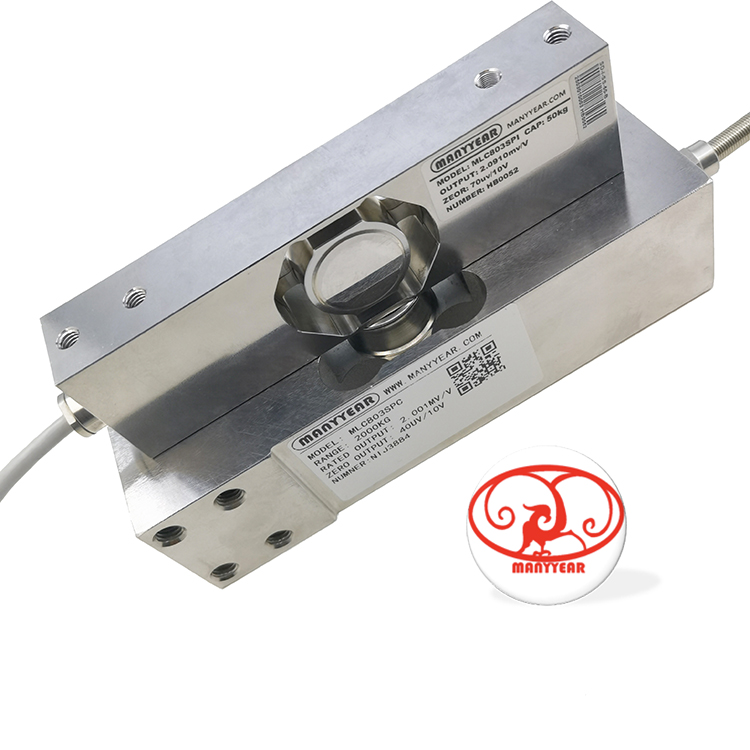

MLC814- SPC Waterproof Load Cell
The MLC814-SPC water proof load cell is designed for batching scales, canning scales, and packaging scales, with a rated load range of 100–1000kg. Available in alloy steel or stainless steel, it offers IP68/IP69K protection for excellent waterproof and dustproof performance. Ideal for high-humidity and high-cleanliness environments such as food processing and pharmaceutical production, it is a reliable choice for industrial weighing.
| Model:MLC814-SPC Category: Shear Beam Load Cells Rated load: 100, 250, 300, 500, 1000 kg Product size: 140*40*25mm Safe overload: 120%; Ultimate overload: 200% Material: alloy steel, stainless steel Scope of application: batching scale, canning scale, packaging scale , food processing, pharmaceutical production | |||
| Max weighing platform dimension: 800*650mm | |||
|
| |||
| Other sizes | |||
| Technical Parameters | |||
| Comprehensive error: | 0.02%FS;0.01%FS | Output resistance: | 352±3 ohms |
| Rated output: | 2±0.002 mv/v | Insulation resistance: | ≥5000MΩ (100VDC) |
| Nonlinearity: | 0.017%FS | Excitation voltage: | 5~12VDC |
| Lag: | 0.02%FS | Compensation temperature: | -10~+40 C |
| Repeatability: | 0.01%FS | Operating temperature: | -30~+70 C |
| Creep: | 0.02%FS/10MIN | Effect of Temp. on zero point | 0.02%FS/10ºC |
| Zero balance: | ±1%FS | Effect of Temp. on sensitivity | 0.02%FS/10ºC |
| Input resistance: | 400±10ohm | Protection level: | IP68 /IP69K protection level |
