MLC205SS Screw-type Force Load Cell (10-500kg, 33*φ13mm) —stainless steel, for tension/compression testers, accurate and compact.
Model: MLC205SS
Category: Bolt type force Load Cell
Range: 10kg, 15kg, 20kg, 30kg, 50kg, 100kg, 200kg, 300kg, 400kg, 500kg

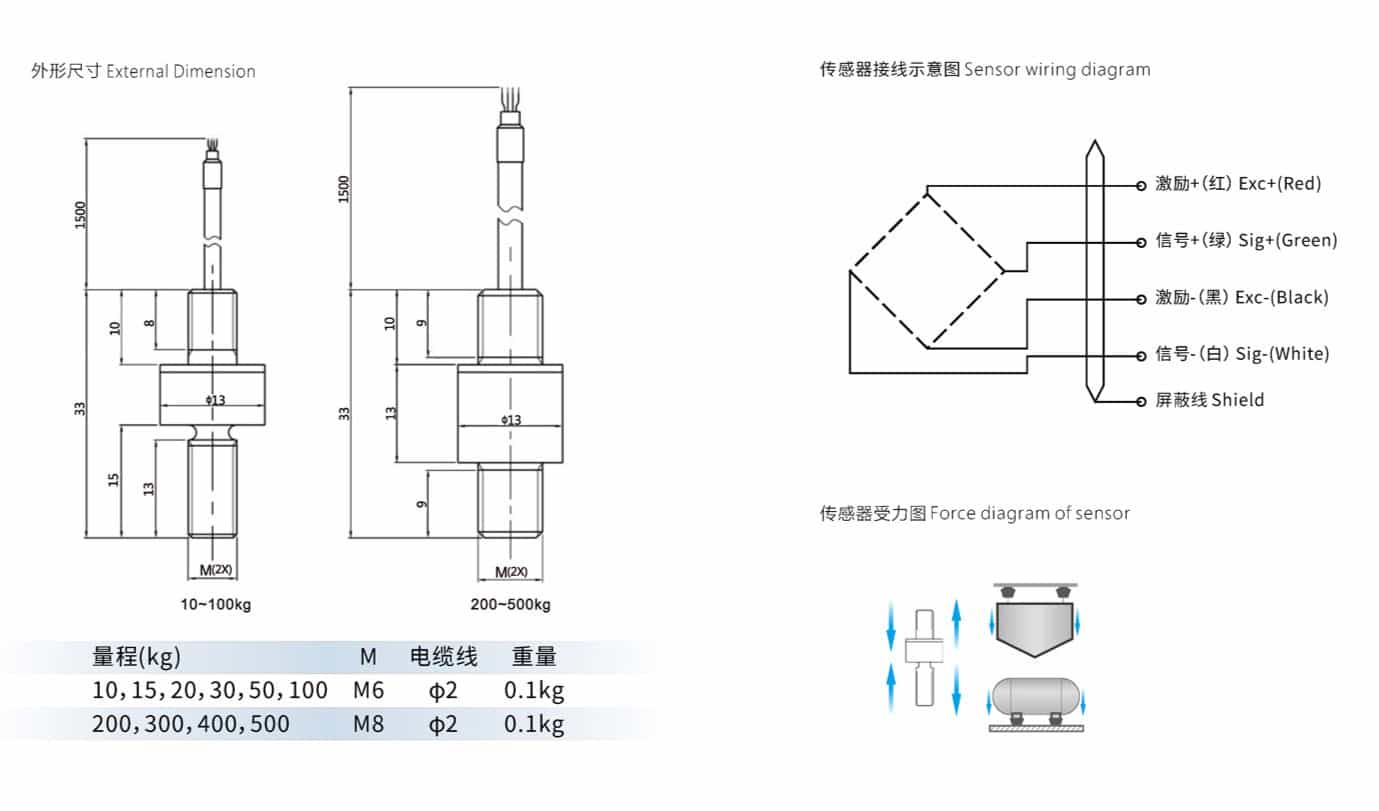

Size: 33* φ13mm
Cable: φ2*2000mm
Material: stainless steel
Application: Miniature force sensor, tensile test machine, compression test machine, screw force measurement
| Technical specifications | |||
| Comprehensive error: | 0.2%FS | Output resistance: | 350/500/1000Ω |
| Rated output: | 1.0±20%mV/V | Insulation resistance: | ≥5000MΩ(100VDC) |
| Nonlinearity: | 1.0%FS | Operating Voltage: | 5~10VDC |
| Lag: | 0.5%FS | Compensation temperature: | -20~+80ºC |
| Repeatability: | 0.5%FS | Operating temperature: | -20~+80ºC |
| Creep: | 0.1%FS/30min | Effect of Temp. on zero point: | 0.2%FS/10ºC |
| Zero Balance: | ±5%FS | Effect of Temp. on sensitivity: | 0.2%FS/10ºC |
| Input resistance: | 350/500/1000Ω | Protection level: | IP66 |
| Cable Specifications | Φ2*2m | Cable ultimate tension: | 10kg |
