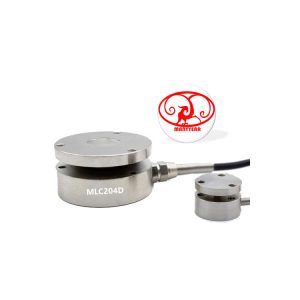

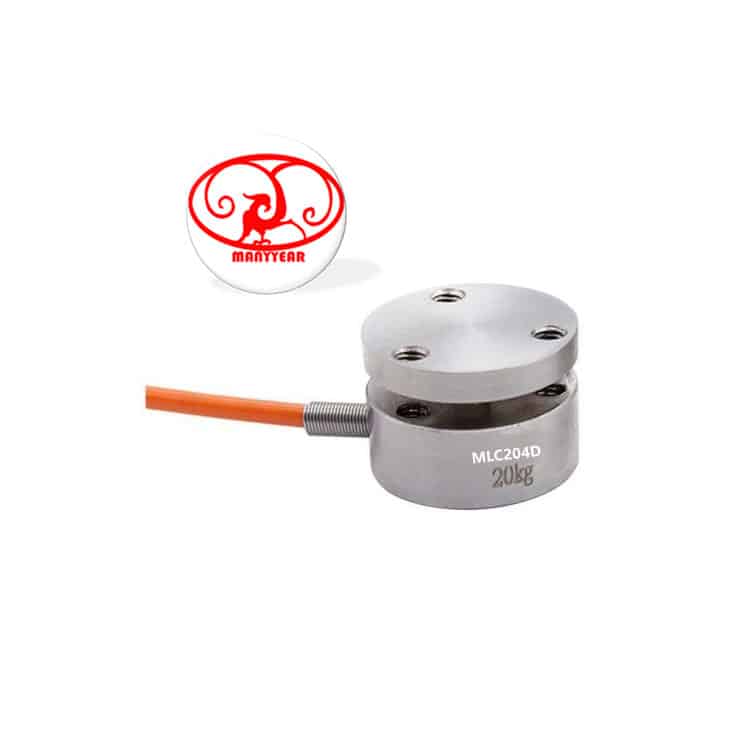

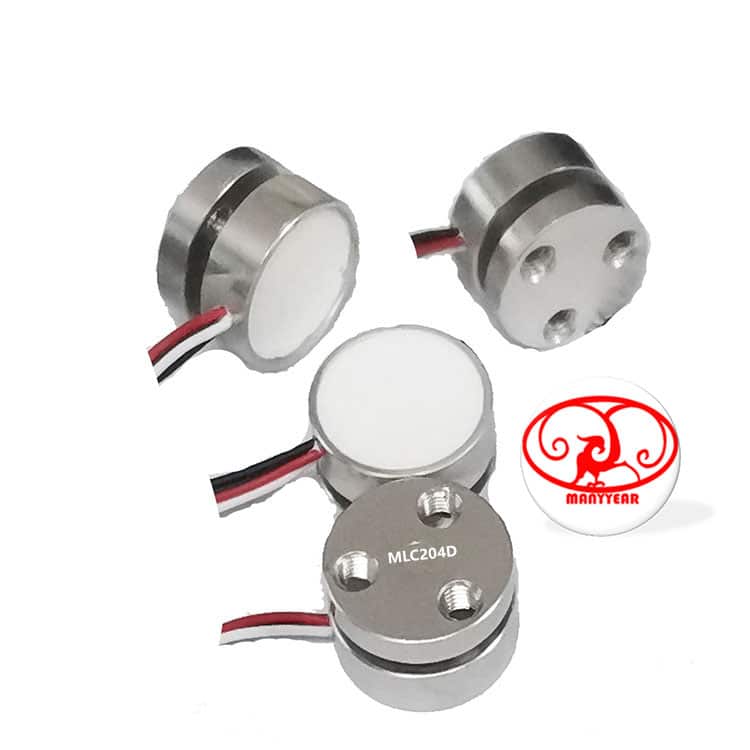

MLC204D robot force load cell, diaphragm type, 20kg-2000kg, φ25*18mm, stainless steel, dual overload protection, for micro force measurement.
Model: MLC204D
Category: Diaphragm Type Load Cell
Load range: 20kg, 30kg, 50kg, 100kg, 300kg, 500kg, 1000kg, 2000kg
Size: φ25*18mm
Material: stainless steel
Safe overload: 120% FS; Ultimate overload: 200%FS
Application: small force measurement, small compression test
| Technical specification | |||
| Comprehensive error: | 1.0%FS | Output resistance: | 350±10Ω |
| Rated output: | 1.0-2.0±0.05mV/V | Insulation resistance: | ≥5000MΩ(100VDC) |
| Nonlinearity: | 0.5 %FS | Operating Voltage: | 2.5-5VDC |
| Lag: | 0.5 %FS | Compensation temperature: | -10~+ 60°C |
| Repeatability: | 0.3 %FS | Operating temperature: | – 1 0~+70ºC |
| Creep: | 0.3%FS/30Min | Effect of Temp. on zero point: | 0.1 %FS/10°C |
| Zero Balance: | ± 1 %FS | Effect of Temp. on sensitivity: | 0.1 %FS/10°C |
| Input resistance: | 350±10Ω | Protection level: | IP66 |
