MLC700AMA luggage scale load cell MLC700AMA luggage scale load cell
MLC700AMA luggage scale load cell
MLC700AMA luggage scale load cell-MANYYEAR TECHNOLOGY
MLC700AMA luggage scale load cell-MANYYEAR TECHNOLOGY
MLC700AMA luggage scale load cell-MANYYEAR TECHNOLOGY
MLC700AMA luggage scale load cell-MANYYEAR TECHNOLOGY

MLC700AMA luggage scale load cell

handle scale load cell,fishing scale load cell,postal scale load cell,luggage scale load cell

Model: MLC700AMA
Category: Micro load cell
Load range:50kg
Dimension:48*22*2.5mm
Material: alloy steel
Characteristic: handle scale load cell,fishing scale load cell,postal scale load cell,luggage scale load cell


we have prepared this form as below, hoping to help you.if you complete the sheet, please send to admin@manyyear.com. we will reply to you in 24Hr.

Product selection reference

Online Sales

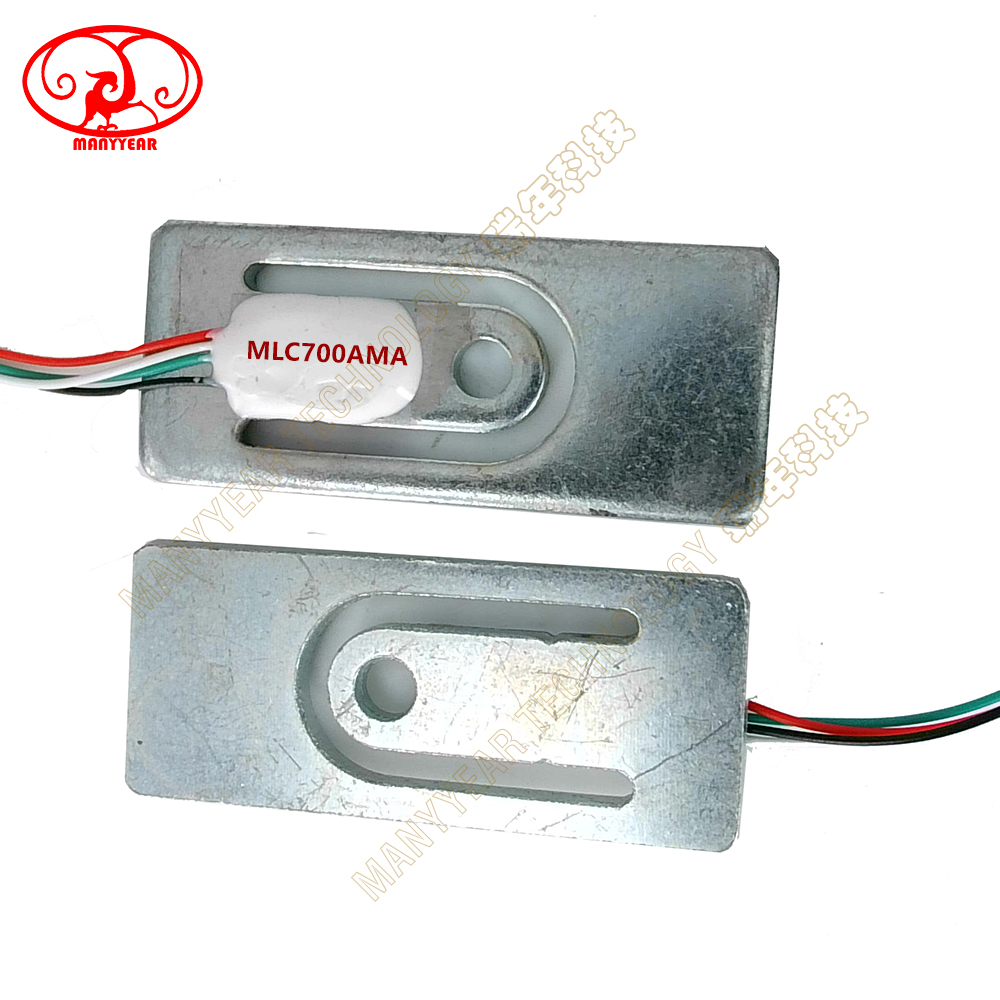

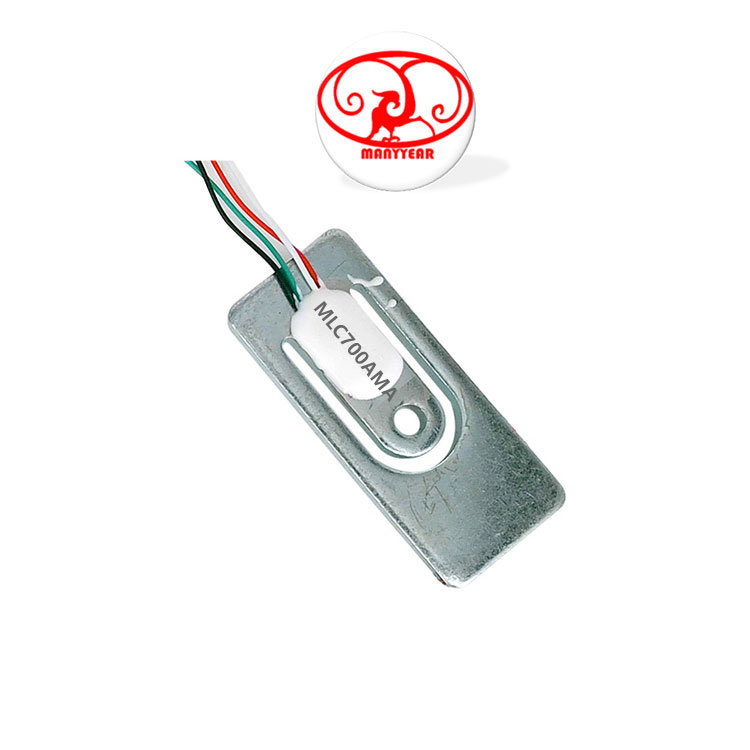

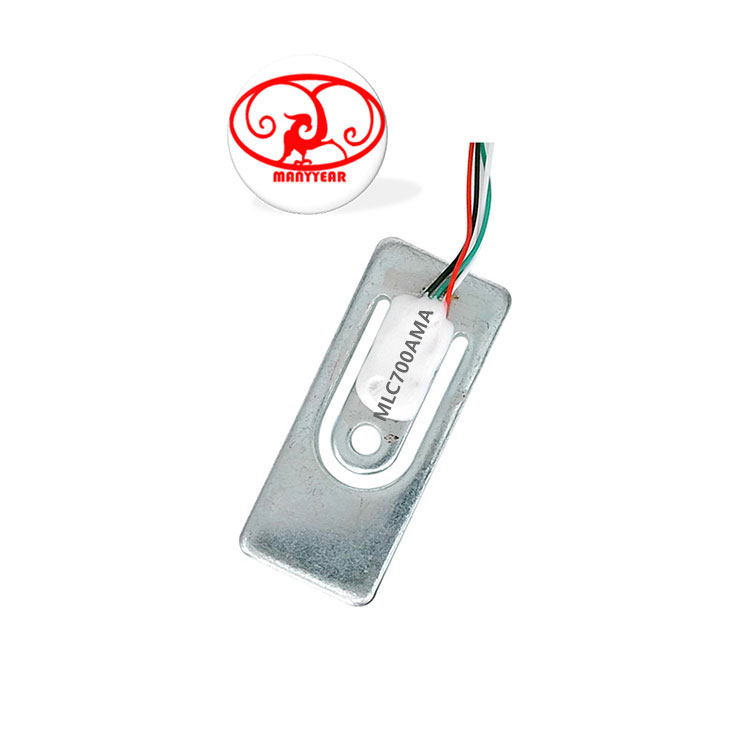

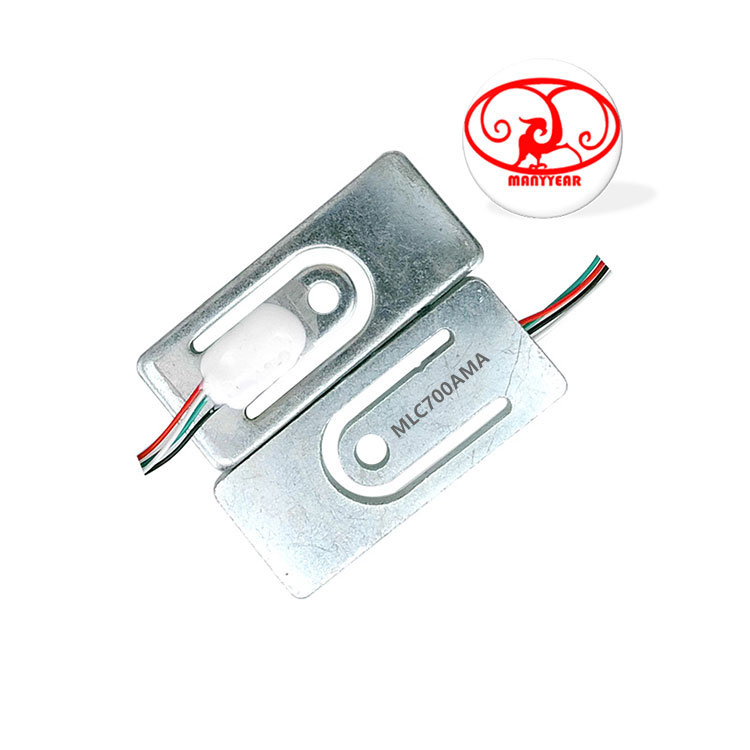

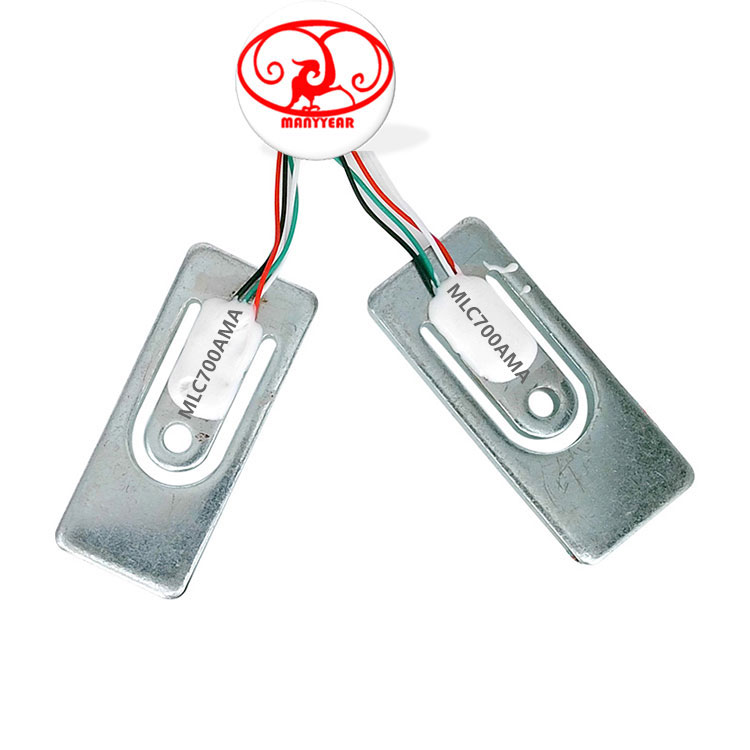

Product Picture Reference



MLC700AMA luggage scale load cell-MANYYEAR TECHNOLOGY

Technology Specification

Below spec is only for customer design reference,we can provide ODM product.
MLC700AMA luggage scale load cell

Model: MLC700AMA

Category: Micro load cell

Load range:50kg

Dimension:48*22*2.5mm

Material: alloy steel

Characteristic: handle scale load cell,fishing scale load cell,postal scale load cell,luggage scale load cell

Specification
Comprehensive error:0.2%FSOutput resistance:1000±10Ω
Rated output:0.8±0.2mV/VInsulation resistance:≥2000MΩ(20VDC)
Non-linearity:0.2%FSAllowed Excitation voltage:3~10VDC
Hysteresis:0.2%FSCompensated temp:-10~+40ºC
Repeatability:0.1%FSUse temperature:-10~+55ºC
Creep:0.2%FS/3MinTemp effect on zero:0.2%FS/10ºC
Zero balance:±0.3%FSTemp effect on span:0.2%FS/10ºC
Input resistance:1000±10ΩDefend grade:IP66

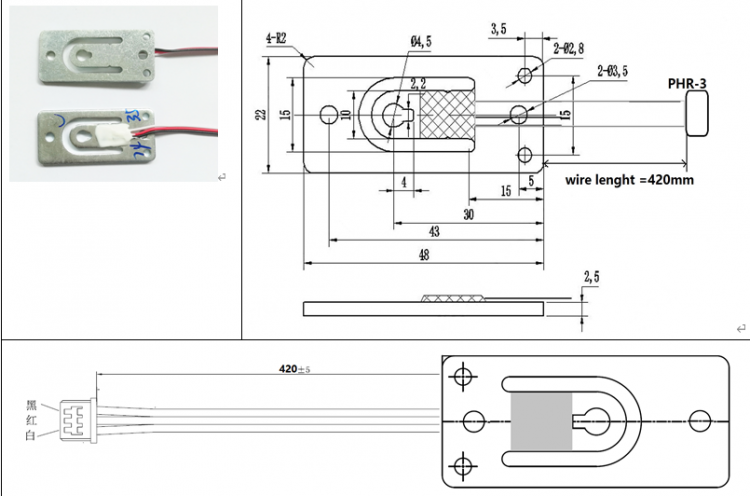

Product Dimension

MLC700AMA luggage scale load cell-MANYYEAR TECHNOLOGY

Force Structure & Assembly Reference

MLC700AMA luggage scale load cell-MANYYEAR TECHNOLOGY

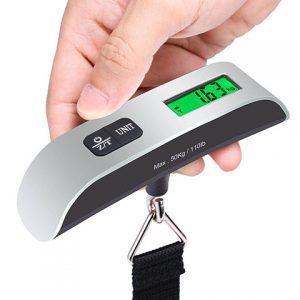

Product Application

MLC700AMA luggage scale load cell-MANYYEAR TECHNOLOGYMLC700AMA luggage scale load cell-MANYYEAR TECHNOLOGYMLC700AMA luggage scale load cell-MANYYEAR TECHNOLOGY
