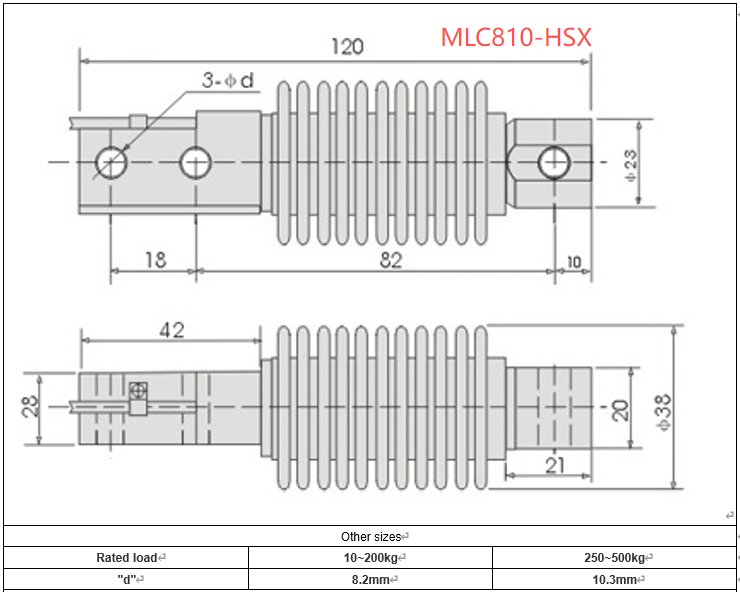

MLC810-HSX waterproof load cell, 5,10, 20, 30, 50, 100, 200, 300, 350, 500kg, alloy steel/stainless steel, bellows sealed, for batching/packaging scales.
Model: MLC810
Category: water proof load cell
Rated load: 5,10, 20, 30, 50, 100, 200, 300, 350, 500kg
Safe overload:150%; Ultimate overload: 200%
Material: alloy steel, stainless steel
Characteristic: feeding scale load cell,belt scale load cell,packing scale load cell,blending scale load cell,batch scale load cell
| Technical Parameters | |||
| Comprehensive error: | 0.02%FS | Output resistance: | 350±3 ohms |
| Rated output: | 2±0.003mv/v | Insulation resistance: | ≥5000MΩ (100VDC) |
| Nonlinearity: | 0.017%FS | Excitation voltage: | 9~12VDC |
| Lag: | 0.02%FS | Compensation temperature: | -10~+40 C |
| Repeatability: | 0.01%FS | Operating temperature: | -20~+55 C |
| Creep: | 0.02%FS/10MIN | Effect of Temp. on zero point | 0.02%FS/10ºC |
| Zero balance: | ±1%FS | Effect of Temp. on sensitivity | 0.014%FS/10ºC |
| Input resistance: | 350±5 ohms | Protection level: | IP66 protection level |
