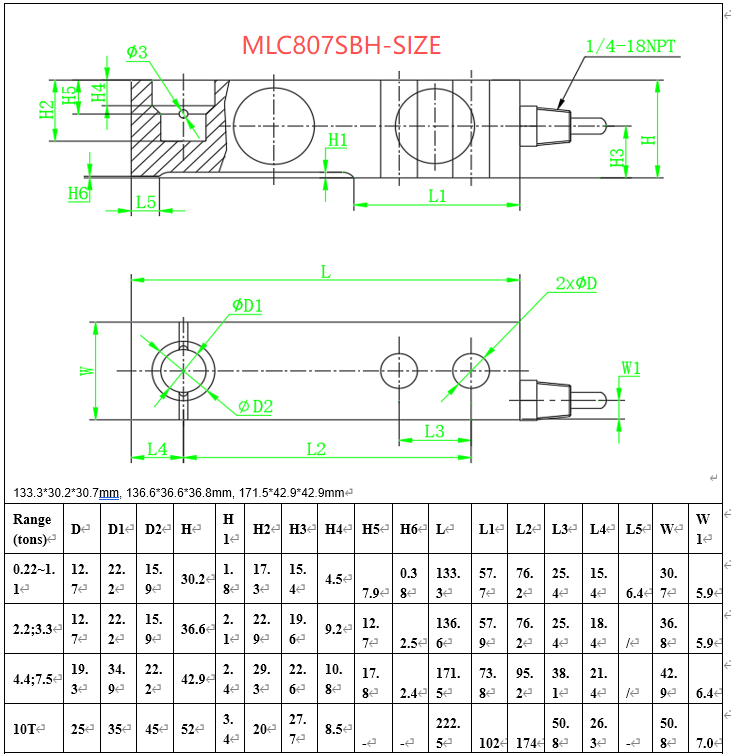

MLC807-SBH electronic platform scale load cell, 0.22–10 ton wide range, alloy steel/stainless steel, Shear beam design, fits packaging scale and industrial use, ultra-high overload protection.
Model: MLC807SBH
Category: Shear beam load cell
Rated load: 500,1000,1500,2000, 2500, 3000, 5000kg
Safe overload:120% Ultimate overload: 150%
Material: alloy steel,stainless steel
Characteristic: platform weighing sensor, feeding scale weighing sensor, batching scale weighing sensor, packing scale weighing sensor
| Technical Parameters | |||
| Comprehensive error: | 0.02%FS | Output resistance: | 352±3Ω |
| Rated output: | 2±0.002mv/v, 0±0.02mv/v | Insulation resistance: | ≥5000MΩ (100VDC) |
| Nonlinearity: | 0.02%FS | Excitation voltage: | 5~15VDC |
| Lag: | 0.02%FS | Compensation temperature: | -30~+70 C |
| Repeatability: | 0.02%FS | Operating temperature: | -20~+55 C |
| Creep: | 0.02%FS/10Min | Effect of Temp. on zero point | 0.02%FS/10ºC |
| Zero balance: | ±1%FS | Effect of Temp. on sensitivity | 0.02%FS/10ºC |
MLC809 packing scale weighing sensor
Rated load: 0.5t,1t,2t
Material: alloy steel, stainless steel
platform weighing sensor,feeding scale weighing sensor,batching scale weighing sensor,packing scale weighing sensorMLC808 batching scale weighing sensor
Rated load: 0.5t, 1t, 2t
Material: alloy steel,stainless steel
platform weighing sensor,feeding scale weighing sensor,batching scale weighing sensor,packing scale weighing sensorMLC807-SBH Electronic Platform Scale Load Cell 0.22-10 Ton Packaging Scale Load Cell Industrial
