MLC802 forklift scale shear beam load cell

MLC802 forklift scale shear beam load cell-MANYYEAR TECHNOLOGY

MLC802 forklift scale shear beam load cell

2021/11/15 MLC800 Shear Beam Load Cell Weighing Load Cell 2229 0

shear beam load cell,platform scale load cell,feeding scale load cell,tank scale load cell,forklift scale load cell

Model: MLC802
Catalog: Shear beam load cell
Rated load: 0.5,1,2,2.5,5ton
Safe overload:120%; Ultimate overload:150%
Material: alloy steel, stainless steel
Characteristic: shear beam load cell,platform scale load cell,feeding scale load cell,tank scale load cell,forklift scale load cell

we have prepared this form as below, hoping to help you.if you complete the sheet, please send to admin@manyyear.com. we will reply to you in 24Hr.

Product selection reference

Online Sales

产品介绍产品

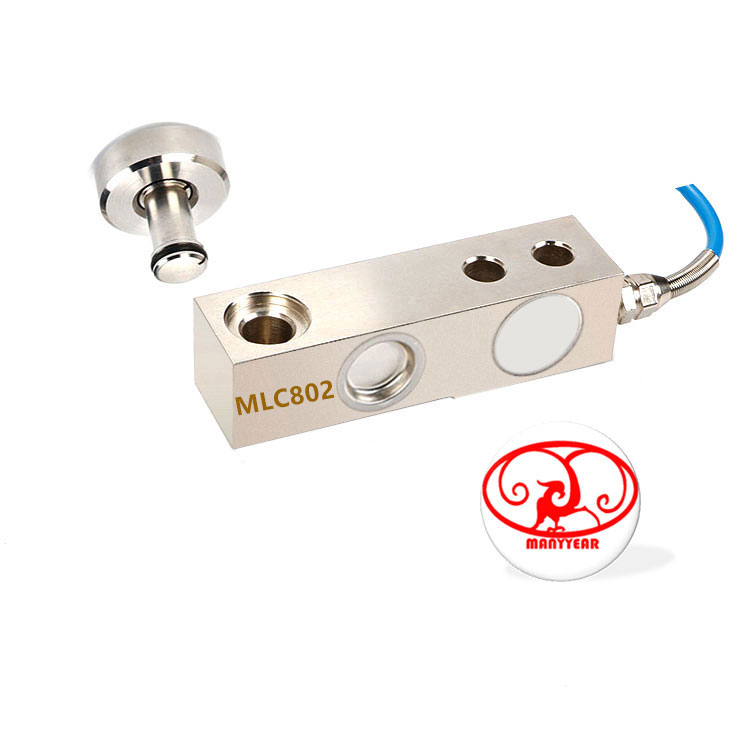

Product Picture Reference

MLC802 forklift scale shear beam load cell

Technology Specification

Below spec is only for customer design reference,we can provide ODM product.

                                                                                    MLC802 forklift scale shear beam load cell

Model: MLC802

Catalog: Shear beam load cell

Rated load: 0.5,1,2,2.5,5ton

Safe overload:120%; Ultimate overload:150%

Material: alloy steel, stainless steel

Characteristic: shear beam load cell,platform scale load cell,feeding scale load cell,tank scale load cell,forklift scale load cell

Other Dimension

Load range

500kg

130

53.7

15.8

25.4

76.2

13.5

31.8

15.8

M12*1.75

1000~2000kg

130

53.7

15.8

25.4

76.2

13.5

31.8

15.8

M12*1.75

2500~5000kg

171

77.2

38.1

95.3

20.5

38.1

15.8

M20*1.5

Specification

Comprehensive error:

0.03%FS

Output resistance:

350±3Ω

Rated output:

3±0.003mV/V

Insulation resistance:

≥5000MΩ(100VDC)

Non-linearity:

0.03%FS

Excitation voltage:

9~12VDC

Hysteresis:

0.03%FS

Compensated temp:

-10~+40ºC

Repeatability:

0.02%FS

Use temperature:

-20~+55ºC

Creep:

0.05%FS/10Min

Temp effect on zero:

0.03%FS/10ºC

Zero balance:

±1%FS

Temp effect on span:

0.02%FS/10ºC

Input resistance:

350±5Ω

Defend grade:

IP67&IP68

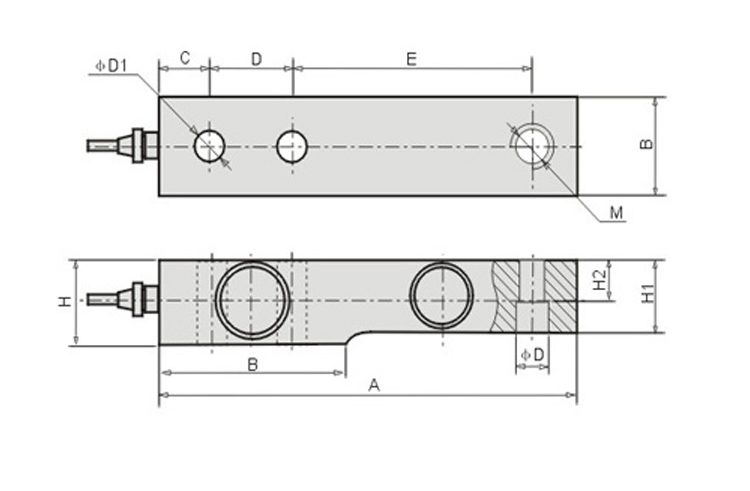

Product Dimension

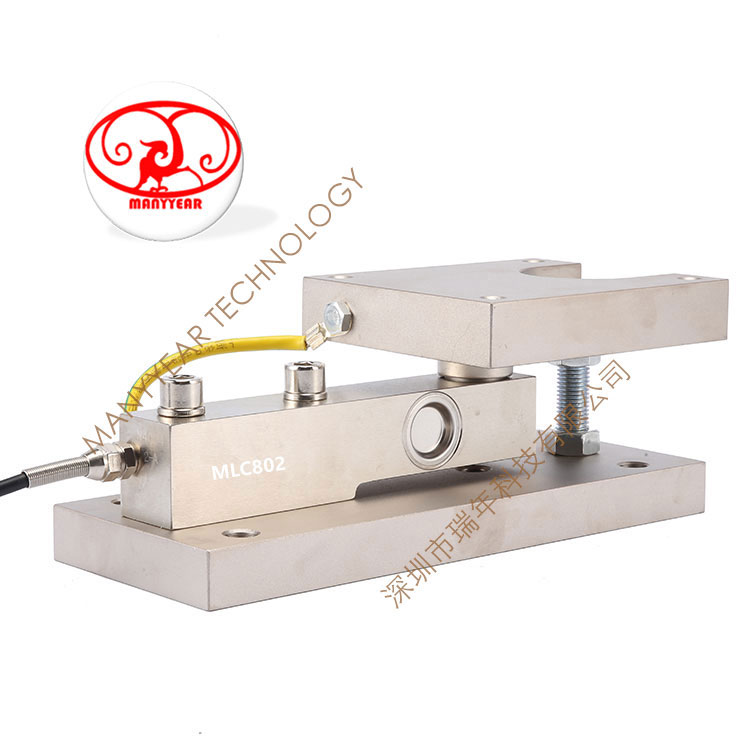

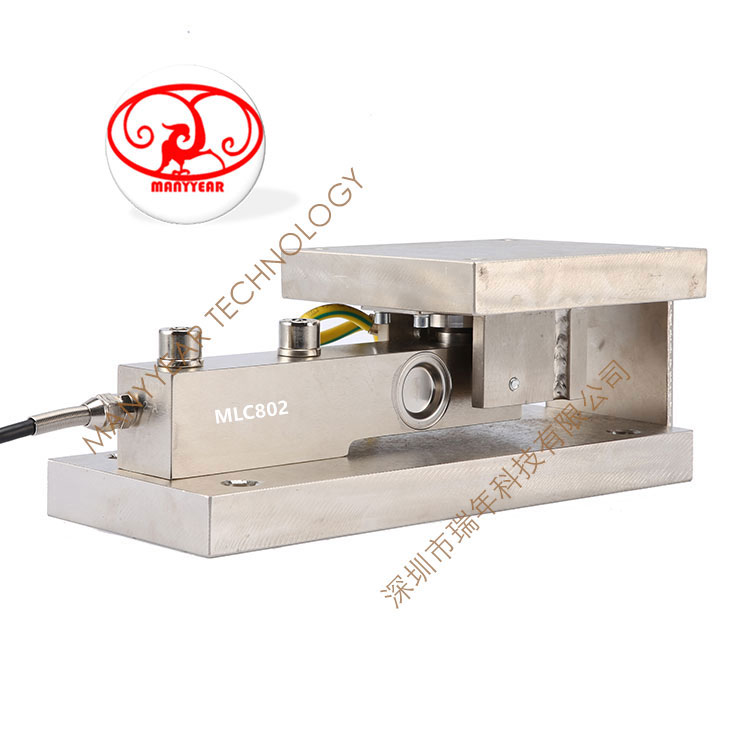

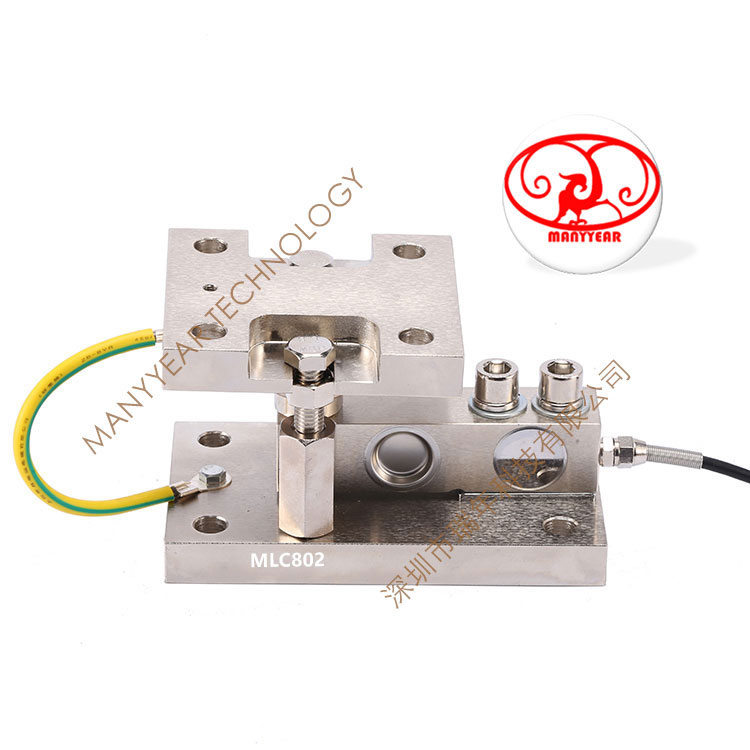

Force Structure & Assembly Reference
