MLC636 miniature load cell

2024/01/02 MLC600-10kg Weighing Load Cell 5550 0

miniature load cell, micro load cell, micro force sensor

Model: MLC636
Catalog: Micro load cell
Rated load: 0.5kg,1kg,1.5kg,2kg,3kg,5kg
Dimension:30*8*6mm
Material: alloy aluminum
Safe overload:120%; Ultimate overload: 150%
Characteristics: miniature load cell,micro load cell,micro force sensor

we have prepared this form as below, hoping to help you.if you complete the sheet, please send to admin@manyyear.com. we will reply to you in 24Hr.

Sales Online

Product Introduction Product Parameters

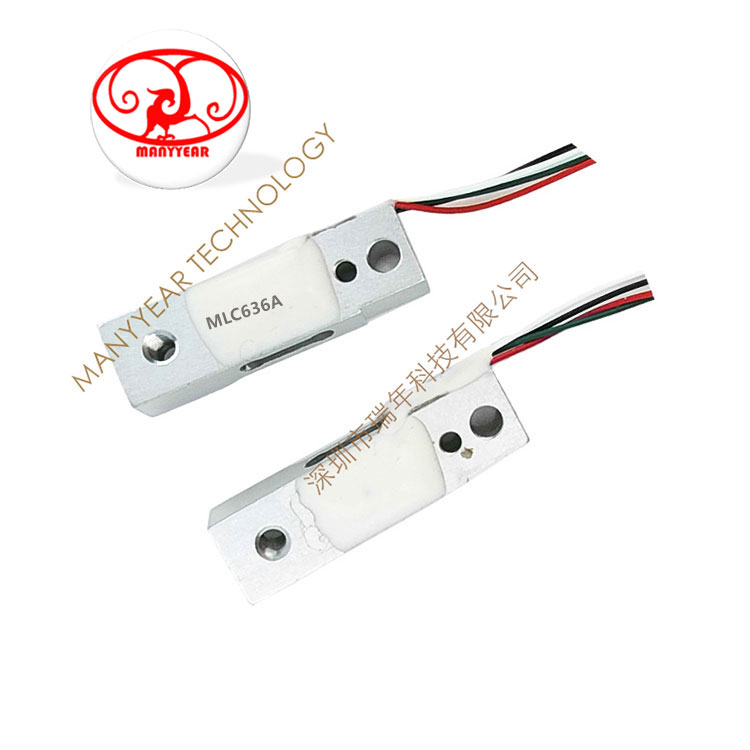

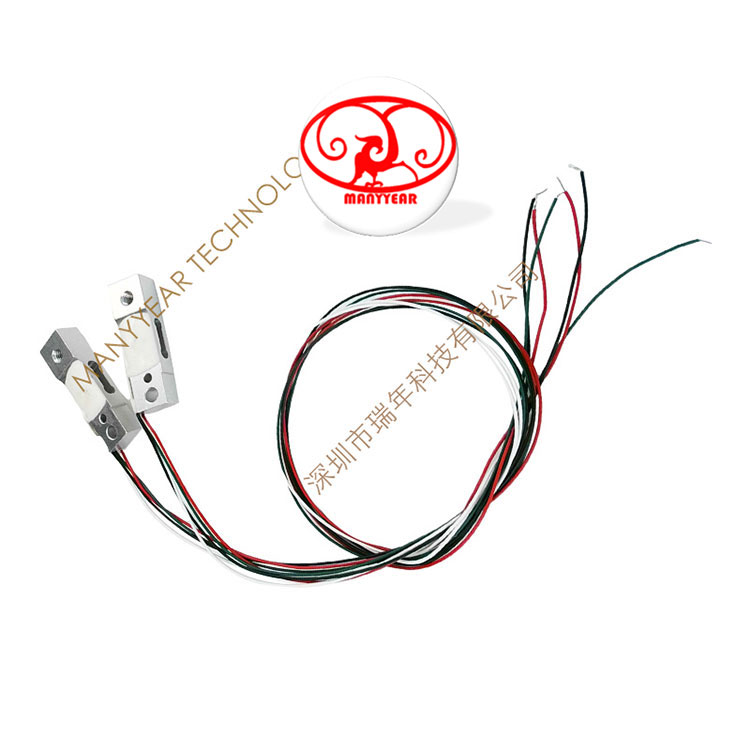

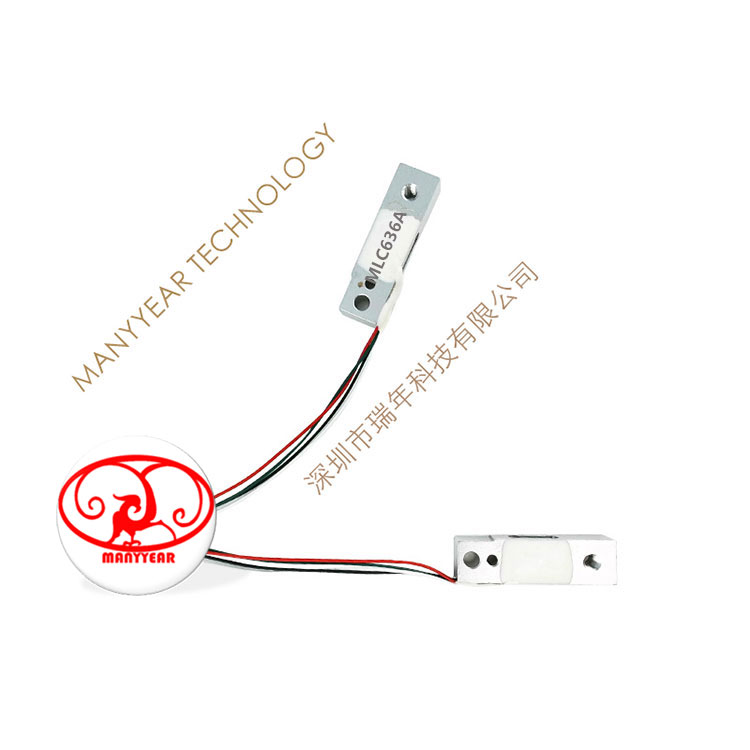

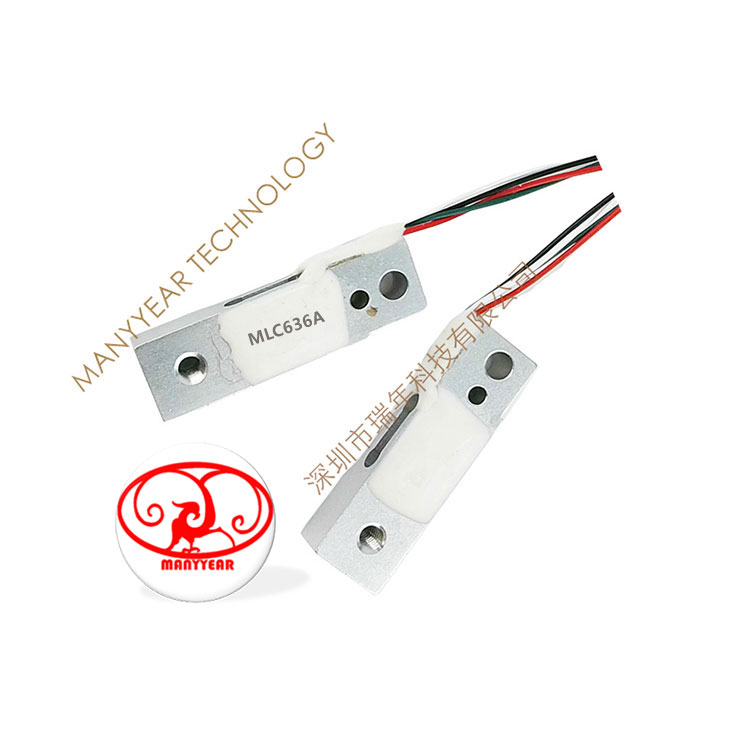

Product Picture Reference

Technology Specification

Below spec is only for customer design reference,we can provide ODM product.

MLC636 miniature load cell

Model: MLC636 Catalog: Micro load cell Rated load: 0.5kg,1kg,1.5kg,2kg,3kg,5kg Dimension:3086mm Connector: XH1.5-4Y Material: alloy aluminum Safe overload:120%; Ultimate overload: 150% Characteristics: miniature load cell,micro load cell,micro force sensor

Specification
Comprehensive error:	0.05FS	Output resistance:	1000±10Ω
Rated output:	1.0±0.15mV/V	Insulation resistance:	≥2000MΩ(100VDC)
Non-linearity:	0.05%FS	Excitation voltage:	3-5 VDC
Hysteresis:	0.05%FS	Compensated temp:	-10~+60ºC
Repeatability:	0.02%FS	Use temperature:	-20~+60ºC
Creep:	0.05%FS/10Min	Temp effect on zero:	0.2%FS/10ºC
Zero balance:	±0.15mV	Temp effect on span:	0.1%FS/10ºC
Input resistance:	1000±10Ω	Defend grade:	IP65

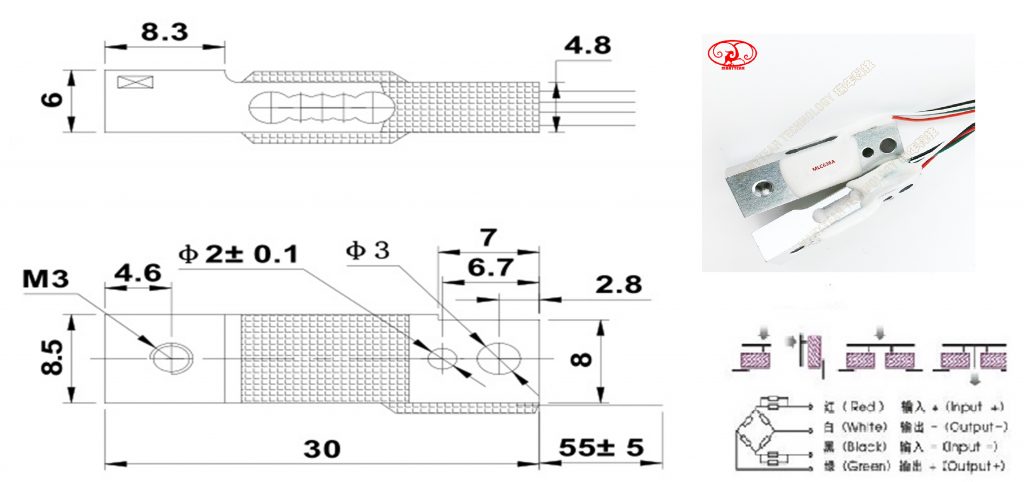

Product Dimension

Force Structure & Assembly Reference
