MLC410 testing machine force sensor, 1t, 2.2t, 3.3t, 4.7t, 10t, 22t, 33t, 47t, 68t, 100t,150t, 220t,330t, 470t, alloy steel/stainless steel, 3 sizes, for force machine.
Model: MLC410
Category: Compression load cell
Load range: 1t,2.2t,3.3t,4.7t,10t,15t,22t,33t,47t,68t,100t,150t, 220t, 330t

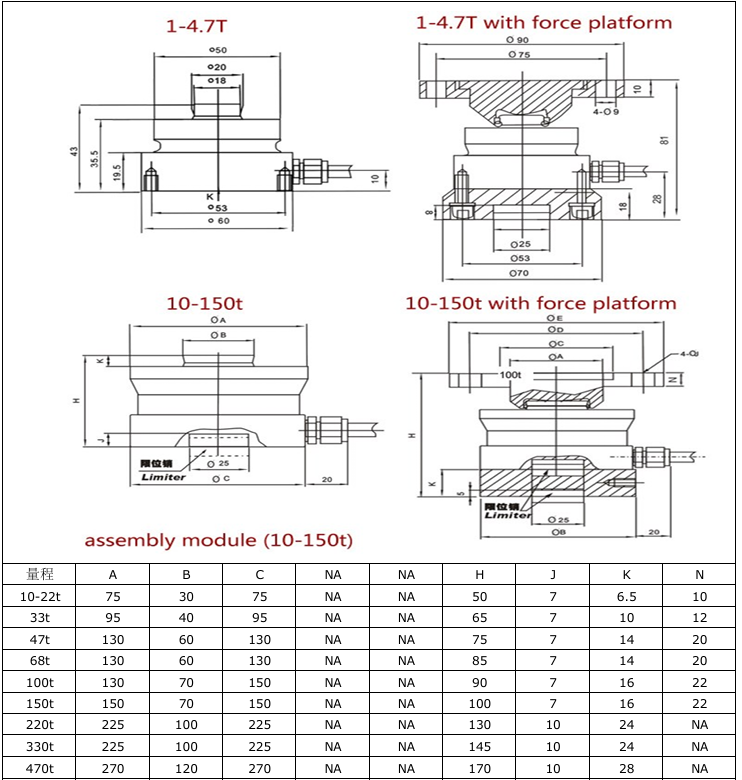

Dimension: 60*43mm/130*75mm/150*100mm
Material: alloy steel, stainless steel
Characteristic:silo scale load cell,tank scale load cell,big capacity load cell,compression force load cell
| Technical Specification | |||
| Comprehensive error: | 0.05%FS | Output resistance: | 1402±5Ω |
| Rated output: | 2.85±0.005mV/V | Insulation resistance: | ≥5000MΩ(100VDC) |
| Nonlinearity: | 0.05%FS | Operating Voltage: | 9~12VDC |
| Lag: | 0.05%FS | Compensation temperature: | -10~+40℃ |
| Repeatability: | 0.03%FS | Operating temperature: | -20~+55℃ |
| Creep: | 0.03%FS/10Min | Effect of Temp. on zero point: | 0.05%FS/10℃ |
| Zero balance: | ± 1%FS | Effect of Temp. on sensitivity: | 0.05%FS/10℃ |
| Input resistance: | 1450±10Ω | Protection level: | IP66 & IP68 |
