MLC405N Column Type Truck Scale Load Cell | 10-50T High Precision Weighbridge Load Cell
MLC405N truck scale load cell, 10-50T, alloy steel/stainless steel, high precision, ideal for weighbridge.
Model: MLC405N
Category: Compression Load Cell
Range: 10t,15t,20t,25t,30t,40t,50t

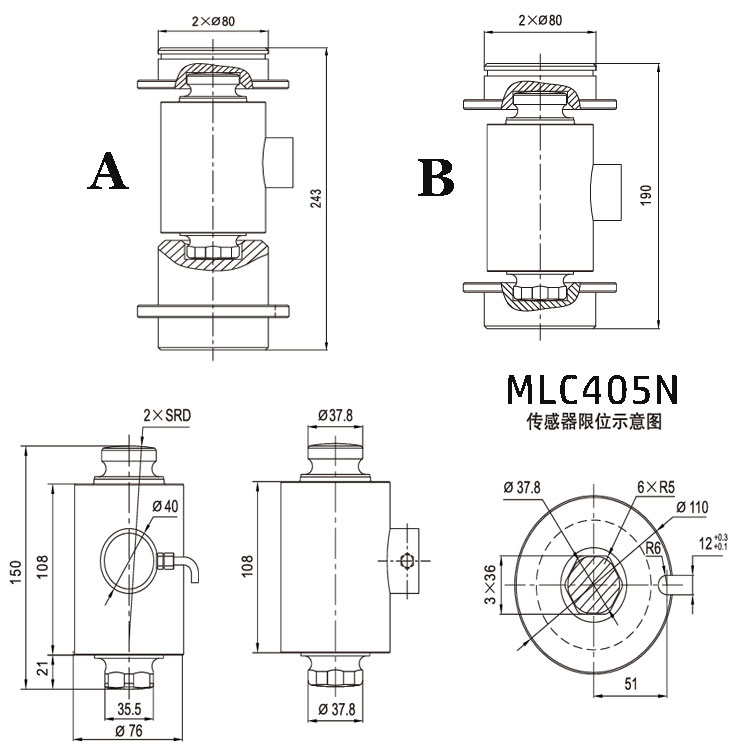

Dimension: 85*150mm
Material: alloy steel, stainless steel

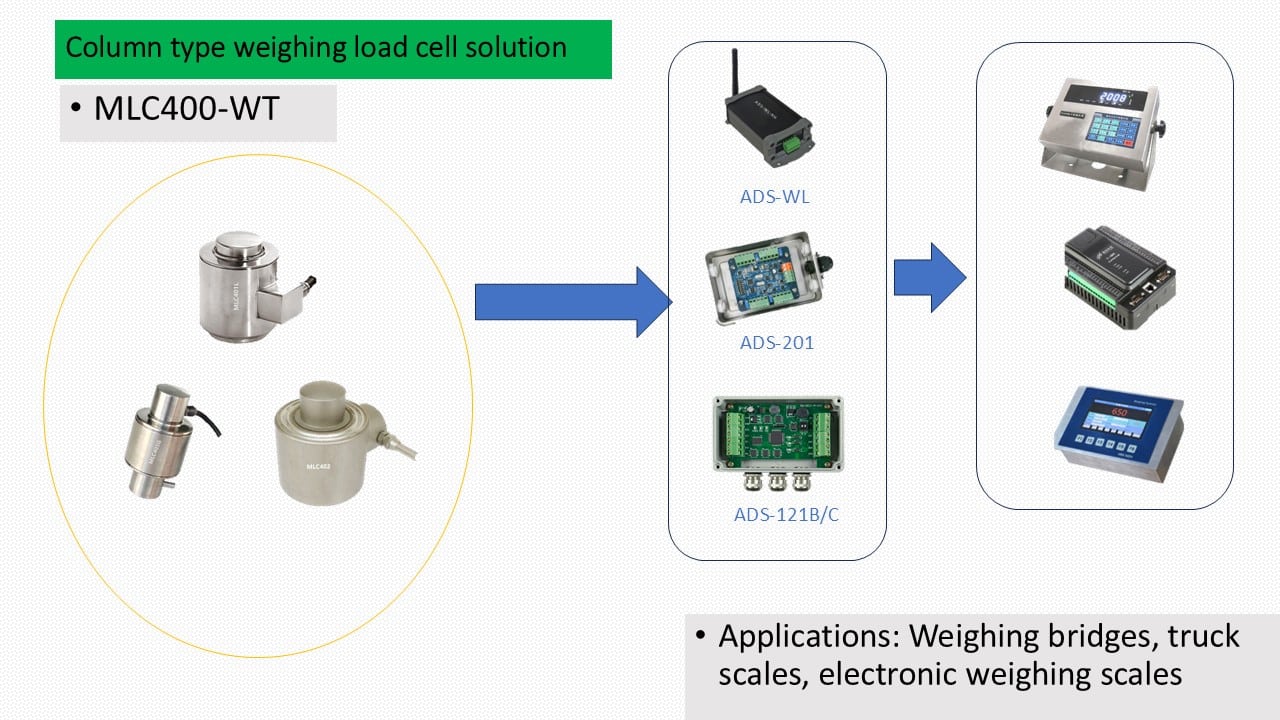

Application: truck scale weight sensor, railway scale weight sensor, floor scale weight sensor, weighbridge weight sensor
| Technical specifications | |||
| Comprehensive error: | 0.02%FS | Output resistance: | 1000±3Ω |
| Rated output: | 2±0.002 mv/v | Insulation resistance: | ≥5000MΩ(100VDC) |
| Nonlinearity: | 0.03%FS | Operating Voltage: | 5~12VDC |
| Lag: | 0.03%FS | Compensation temperature: | -10~+40ºC |
| Repeatability: | 0.02%FS | Operating temperature: | -30~+70ºC |
| Creep: | 0.02%FS/10MIN | Effect of Temp. on zero point: | 0.02%FS/10ºC |
| Zero balance: | ±1%FS | Effect of Temp. on sensitivity: | 0.02%FS/10ºC |
| Input resistance: | 1160±10Ω | Protection level: | IP66&IP68 |
