MLC401 Compression force load cell MLC401 Compression force load cell
MLC401 Compression force load cell

MLC401 Compression force load cell

Compression force load cell, vehicle scale load cell, railroad scale load cell, hopper scale load cell.

Model: MLC401
Catalogue: Compression load cell
Rated load: 10, 25, 40, 60,100ton
Dimension: 152*184mm
Material: alloy steel, stainless steel
Apply to: compression force load cell, Vehicle scale load cell, railroad scale load cell, hopper scale load cell.



Product selection reference

Sales Online

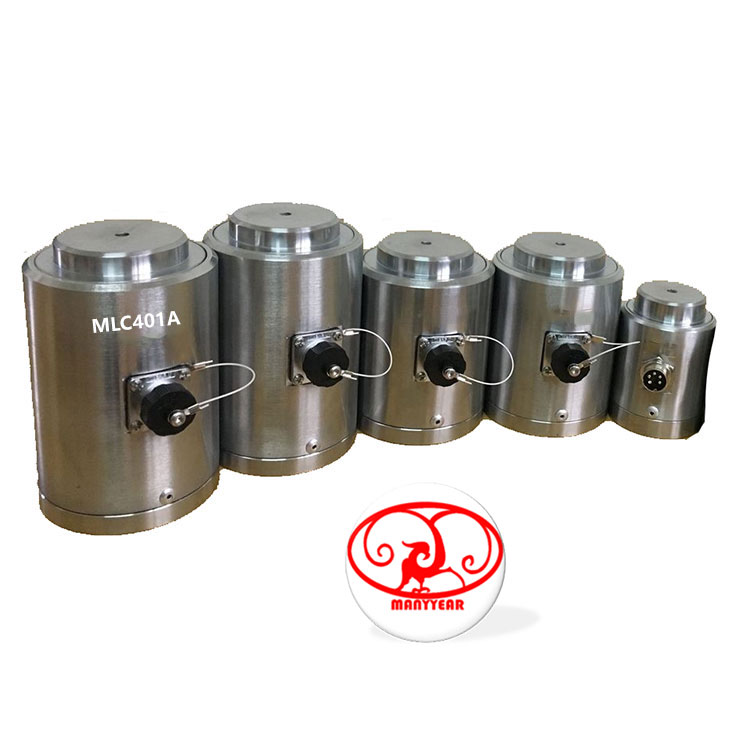

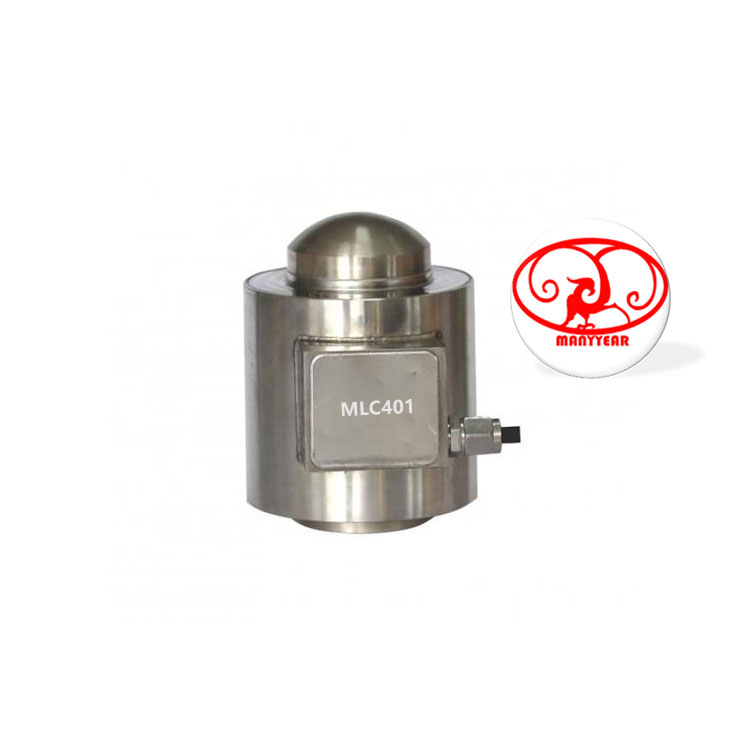

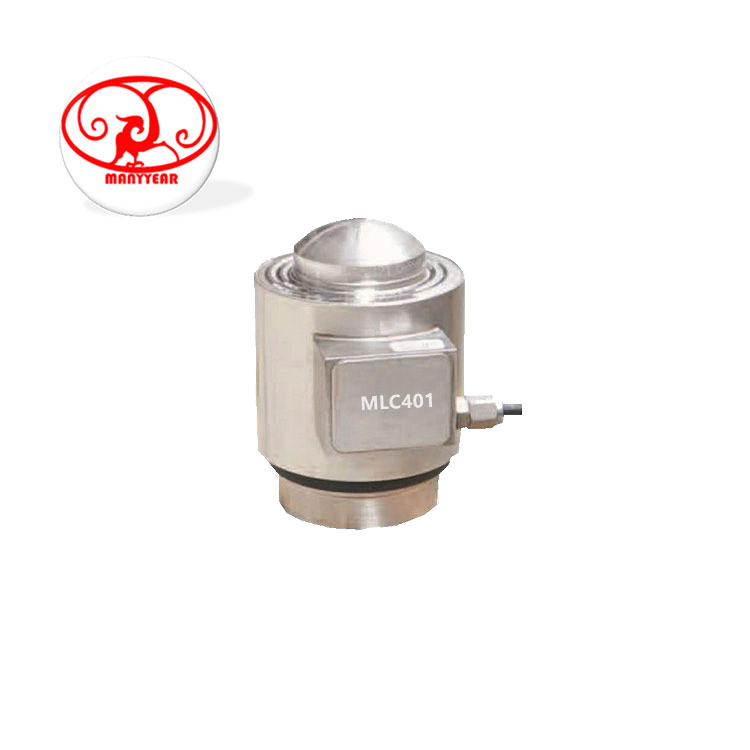

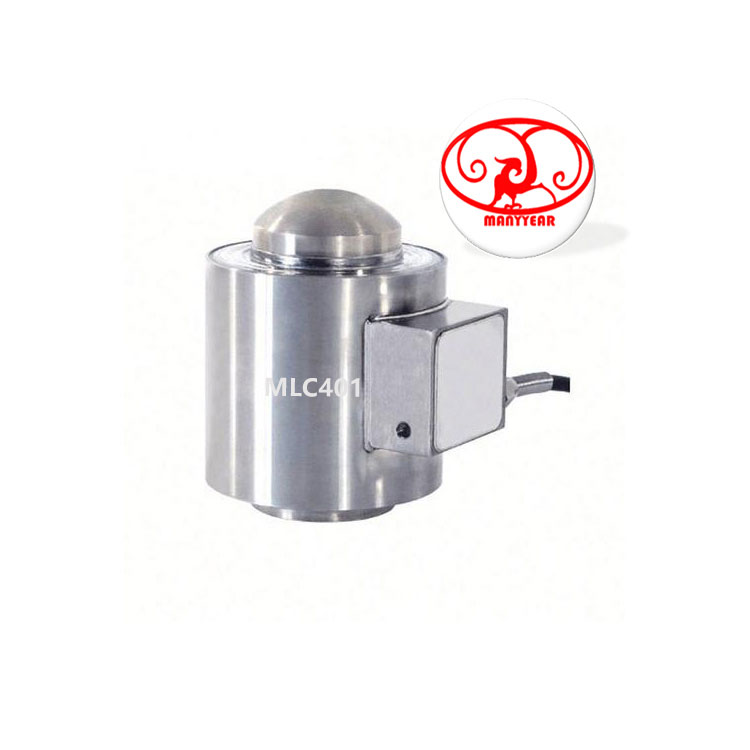

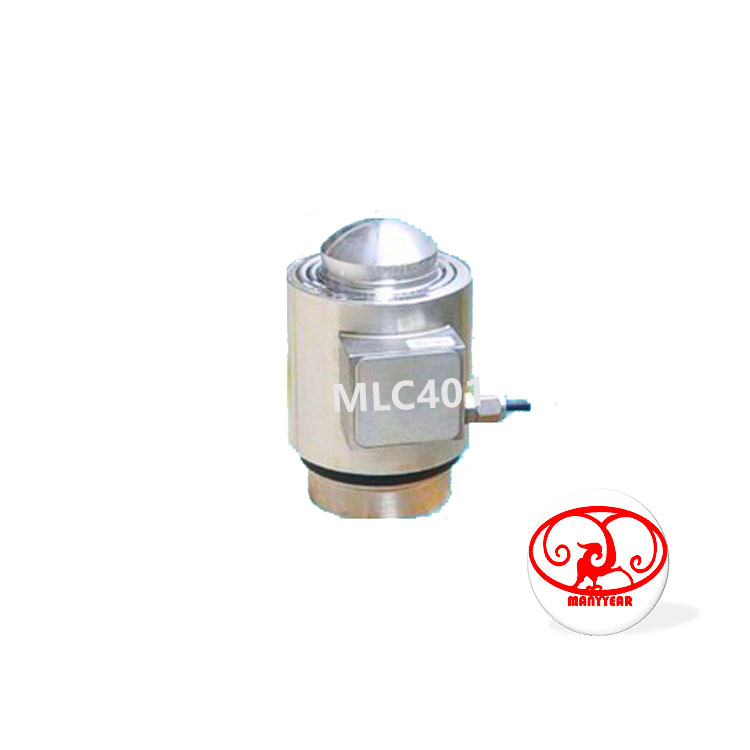

Product Picture Reference

MLC401 Compression force load cell-MANYYEAR TECHNOLOGY

Technology Specification

Below spec is only for customer design reference. we can provide ODM product.

MLC401 Railroad scale column type load cell

Model: MLC401

Catalogue: Compression load cell

Rated load: 10, 25, 40, 60,100ton

Safe overload:150%;  Ultimate overload: 200%

Material: alloy steel, stainless steel, alloy aluminum

Apply to: vehicle scale, railroad scale, hopper scale

Other Dimension
Load rangeABCDEFGHMSR
10t/25t7382.512586.51.86431.8M12x1.75152
40t/60t1051273482.58.011.08758.7M20x2.5152
100t152.4184.272.3123.823.621.8108.279.2M20x2.5432
Specification
Comprehensive error:0.02%FSOutput resistance:700±10Ω
Rated output:1.5±0.002mv/vInsulation resistance:≥5000MΩ(100VDC)
Non-linearity:0.02%FSExcitation voltage:9~12VDC
Hysteresis:0.02%FSCompensated temp:-10~+40ºC
Repeatability:0.01%FSUse temperature:-40~+80ºC
Creep:0.02%FS/10MinTemp effect on zero:0.017%FS/10ºC
Zero balance:±1%FSTemp effect on span:0.014%FS/10ºC
Input resistance:700±10ΩDefend grade:IP68

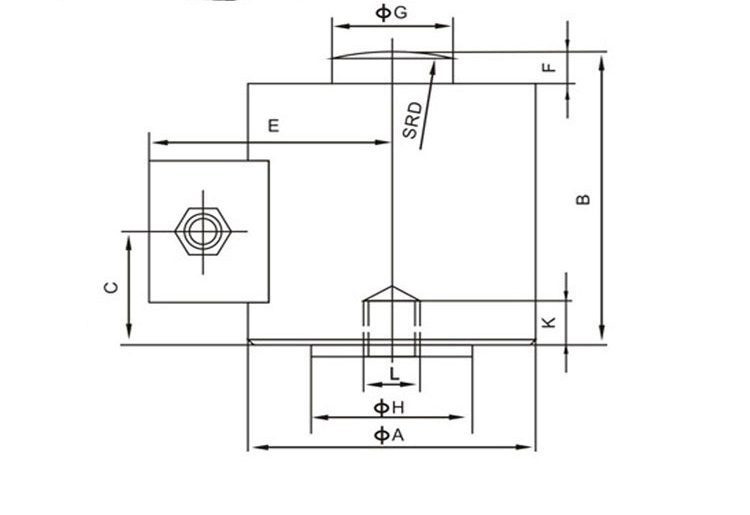

Product Dimension

MLC401 Compression force load cell-MANYYEAR TECHNOLOGY

Force Structure & Assembly Reference

MLC401 Compression force load cell-MANYYEAR TECHNOLOGY

Product Application

MLC401 Compression force load cell-MANYYEAR TECHNOLOGYMLC401 Compression force load cell-MANYYEAR TECHNOLOGYMLC401 Compression force load cell-MANYYEAR TECHNOLOGY



MANYYEAR TECHNOLOGY COMPANY LIMITED  | ADMIN@MANYYEAR.COM

TagColumn compression force load cellCompression Load Cellforce load cellhydraulic force sensorHydraulic machinery force sensorsafe overload The prev: The next:
