MLC121 overhead scale weight sensor

2021/11/02 MLC100 Bridge Load Cell Weighing Load Cell 2610 0

overhead scale weight sensor, force load cell

Model: MLC121
Category: Bridge Load Cell
Load range:2ton
Dimension:160*30*25mm
Material: alloy steel, stainless steel
Characteristic: overhead scale weight sensor,force load cell

we have prepared this form as below, hoping to help you.if you complete the sheet, please send to admin@manyyear.com. we will reply to you in 24Hr.

Product selection reference

Online Sales

Product Introduction Product Parameters

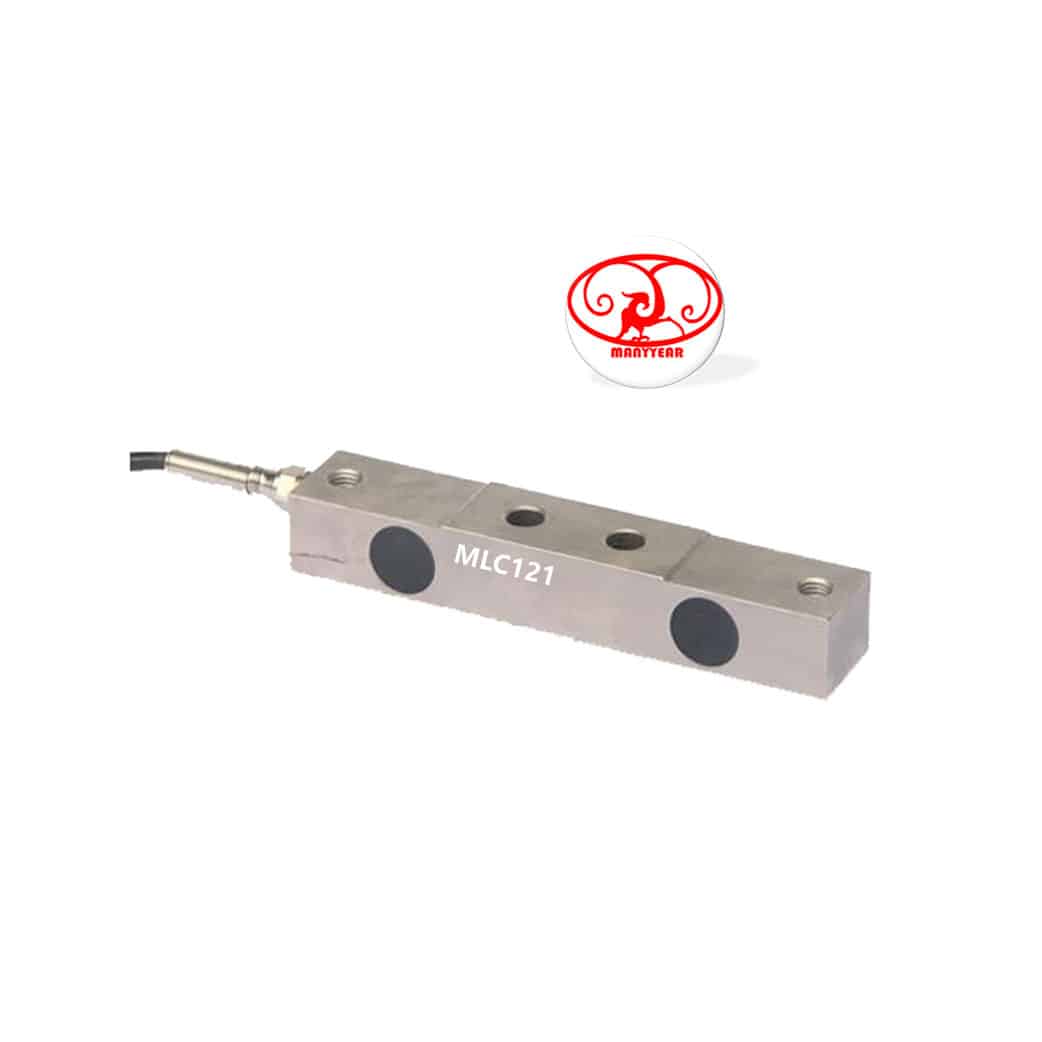

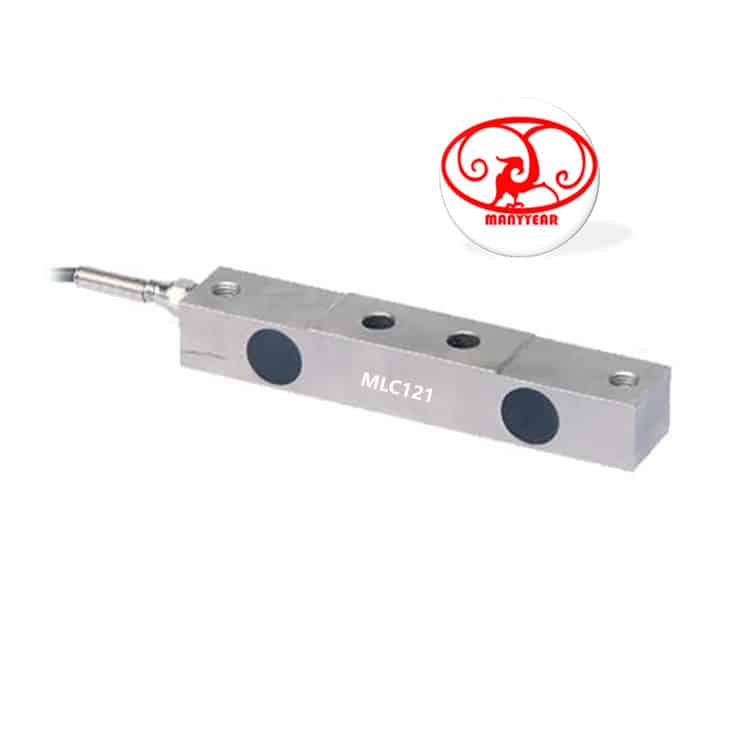

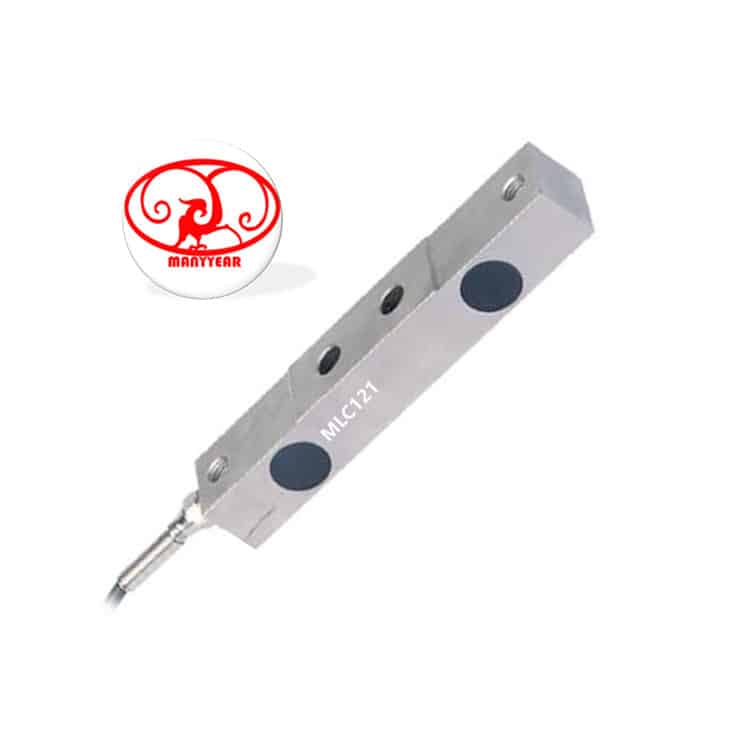

Product Picture Reference

MLC121 overhead scale weight sensor

Technology Specification

Below spec is only for customer design reference,we can provide ODM product.

MLC121 overhead scale weight sensor

Model: MLC121 Category: Bridge Load Cell Load range:2ton Dimension:1603025mm Material: Alloy steel, stainless steel Characteristic: overhead scale weight sensor,force load cell

Specification
Comprehensive error:	0.2%FS	Output resistance:	350±5Ω/700±5Ω
Rated output:	2±0.02mV/V	Insulation resistance:	≥5000MΩ(100VDC)
Non-linearity:	0.2%FS	Excitation voltage:	9~12VDC
Hysteresis:	0.1%FS	Compensated temp:	-10~+40℃
Repeatability:	0.05%FS	Use temperature:	-35~+65℃
Creep:	0.05%FS/10Min	Temp effect on zero:	0.05%FS/10℃
Zero balance:	±1%FS	Temp effect on span:	0.05%FS/10℃
Input resistance:	350±5Ω/700±5Ω	Defend grade:	IP66 & IP68

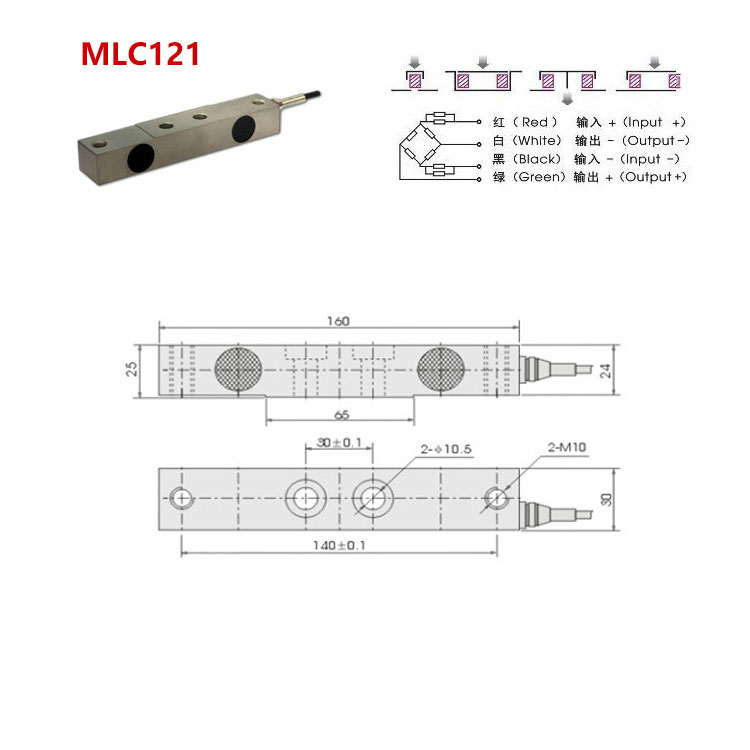

Product Dimension

Force Structure & Assembly Reference
