MLC305 S-type crane scale Load Cell, 10KLB, alloy steel/stainless steel, for crane scales, overload protection and tension compression tests.
Model: MLC305
Category: Tension load cell
Range: 10klb

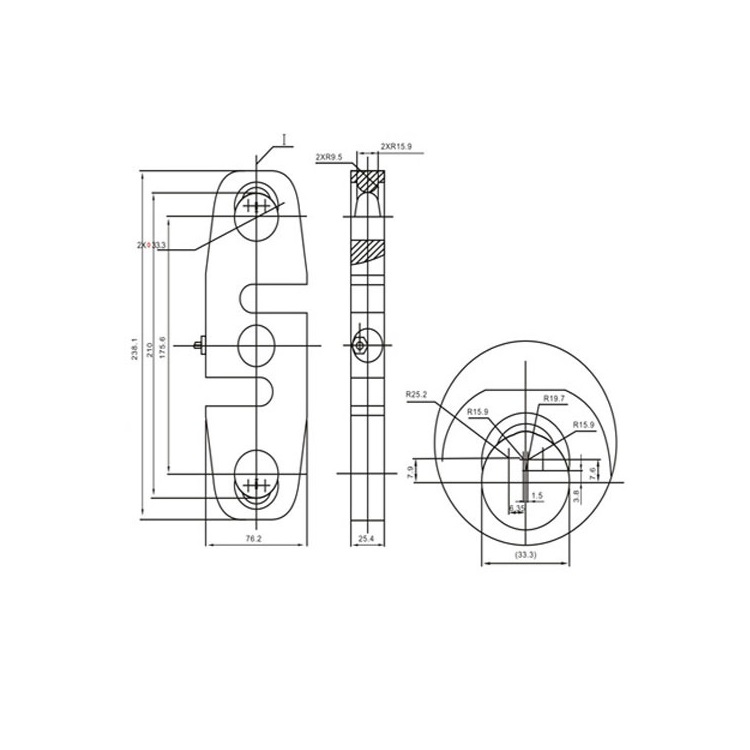

Dimension: 238.1*76.2*25.4mm
Material: Alloy steel,stainless steel
Application: crane scale load cell, tension load cell, overload load cell
| Technical specifications | |||
| Comprehensive error: | 0.03%FS | Output resistance: | 352±5Ω |
| Rated output: | 3.0±0.005mv/v | Insulation resistance: | ≥5000MΩ(100VDC) |
| Nonlinearity: | 0.05%FS | Operating Voltage: | 9~12VDC |
| Lag: | 0.05%FS | Compensation temperature: | -10~+40 ℃ |
| Repeatability: | 0.03%FS | Operating temperature: | -20~+55 ℃ |
| Creep: | 0.03%FS/10MIN | Effect of Temp. on zero point: | 0.05%FS/10 ℃ |
| Zero balance: | ±1%FS | Effect of Temp. on sensitivity: | 0.05%FS/10 ℃ |
| Input resistance: | 400±10Ω | Protection level: | IP66 & IP68 |
