MLC401ZSL Weighbridge Column Type Load Cell for 1-20t

2024/06/19 Force Load Cell MLC400 Compression Load Cell 5779 0

MLC401ZSL weighbridge column load cell 1-20T, alloy steel/stainless steel, high precision, rugged.

MLC401ZSL electronic weighing bridge column type weighing sensor

Model: MLC401ZSL

Category: Column type weighing sensor

Scope: 1 ton, 2 tons, 3 tons, 5 tons, 10 tons, 15 tons, 20 tons

Size: 88x64mm; 106x76mm； 130x88mm

Materials: alloy steel, stainless steel

Applications: Weighing bridges, electronic scales, truck scales

Technical specifications
Comprehensive error:	0.02%FS	Output resistance:	352±5Ω
Rated output:	2±0.002 mv/v	Insulation resistance:	≥5000MΩ(100VDC)
Nonlinearity:	0.02%FS	Operating Voltage:	9~15VDC
Lag:	0.02%FS	Compensation temperature:	-10~+40 ℃
Repeatability:	0.01%FS	Operating temperature:	-40~+80 ℃
Creep:	0.02%FS/10Min	Effect of Temp. on zero point:	0.03%FS/10 ℃
Zero balance:	±1%FS	Effect of Temp. on sensitivity:	0.02%FS/10 ℃
Input resistance:	400±5Ω	Protection level:	IP68

MLC405G Truck Scale Load Cell | 5-50T High Precision Weighbridge Load Cell
Range: 5t,10t,15t,20t,25t,30t,40t,50t
Dimension: 85*178.8mm
MLC405N Column Type Truck Scale Load Cell | 10-50T High Precision Weighbridge Load Cell
Range: 20t,25t,30t,40t,50t
Dimension: 85*150mm
MLC405F Column Type Truck Scale Load Cell | 10-50T High Precision Weighbridge Load Cell
Range: 10t,15t,20t,25t,30t,40t,50t
Dimension: 85*150mm
MLC404 -hopper scale load cell
Range: 30t,45t
Dimension: 101.6*200mm

View all

Product Introduction Product Parameters

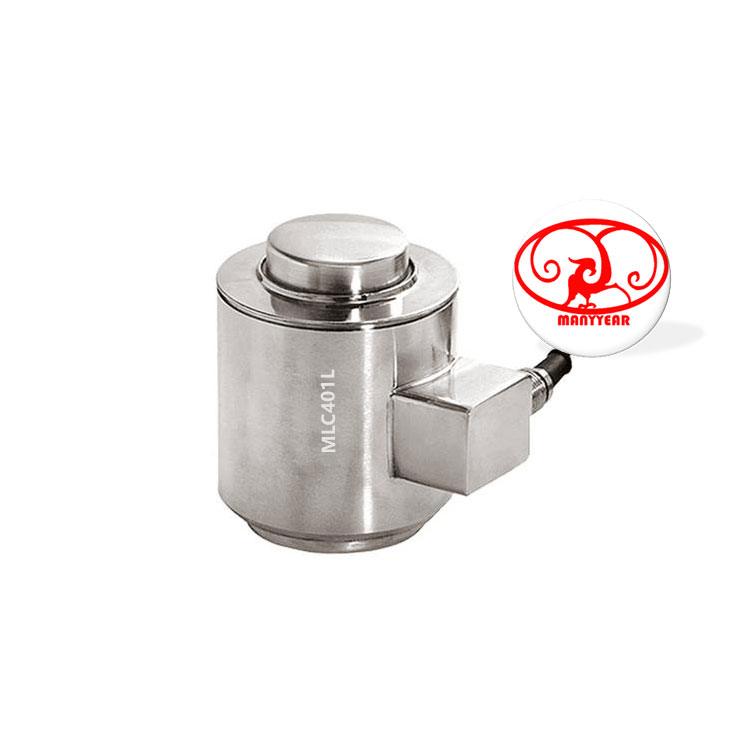

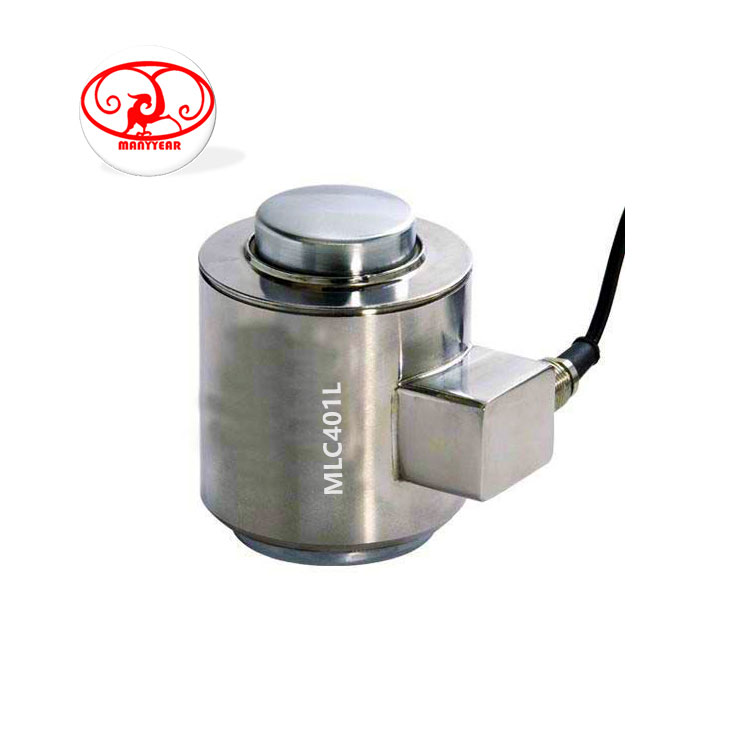

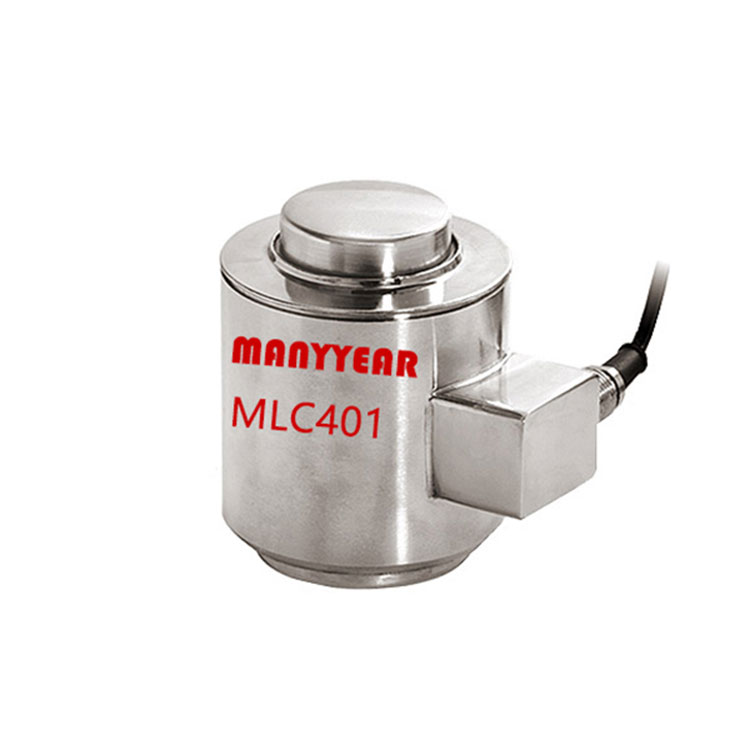

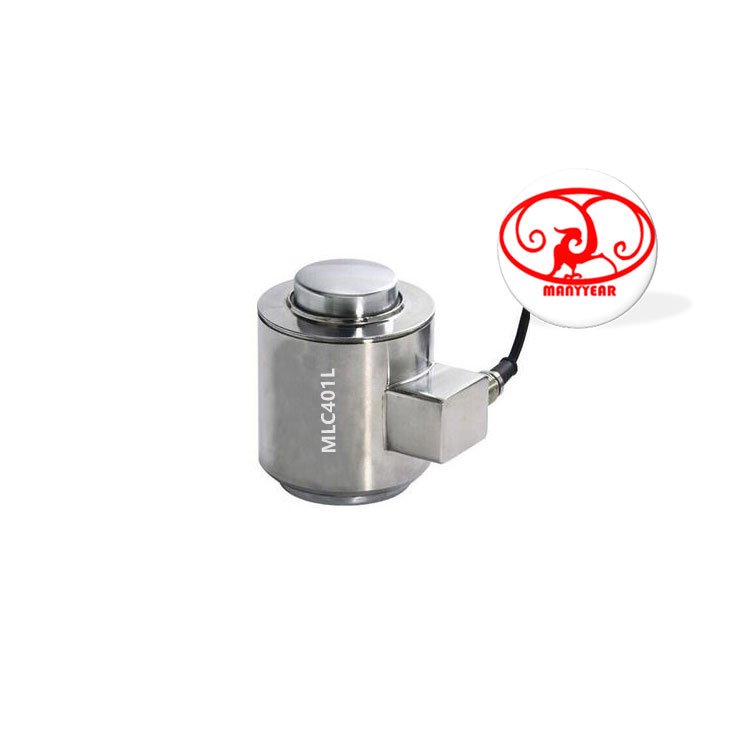

Product Picture Reference

Technology Specification

Below spec is only for customer design reference. we can provide ODM product.

MLC401L Railroad scale column type load cell

Model: MLC401L
Category: Column load cell
Measuring range: 1t, 2t, 3t, 5t, 10t, 15t, 20t
Size: 88*64mm;106*76mm;130*88mm
Material: alloy steel, stainless steel
Applications: Hydraulic dynamometer, pressure test, large range load cell, oil pressure dynamometer, electronic floor scale, truck scale

Measuring range	H	A	B	C	D	E	F
1,2,3,5t	88	78	D64	D38	D26	78	80
10t	106	88	D76	D46	D34	95	120
15, 20t	130	107	D88	D56	D34	118	120

Specification

Comprehensive error:

0.02%FS

Output resistance:

700±10Ω

Rated output:

1.5±0.002mv/v

Insulation resistance:

≥5000MΩ(100VDC)

Non-linearity:

0.02%FS

Excitation voltage:

9~12VDC

Hysteresis:

0.02%FS

Compensated temp:

-10~+40ºC

Repeatability:

0.01%FS

Use temperature:

-40~+80ºC

Creep:

0.02%FS/10Min

Temp effect on zero:

0.017%FS/10ºC

Zero balance:

±1%FS

Temp effect on span:

0.014%FS/10ºC

Input resistance:

700±10Ω

Defend grade:

IP68

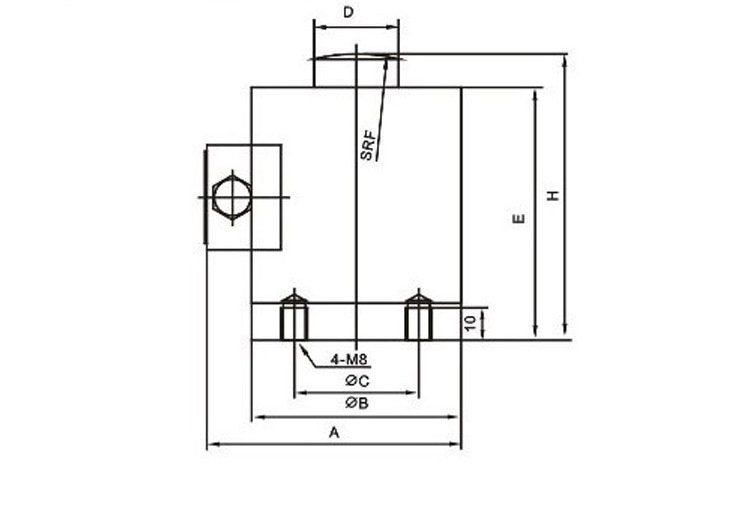

Product Dimension

Force Structure & Assembly Reference

Product Application
