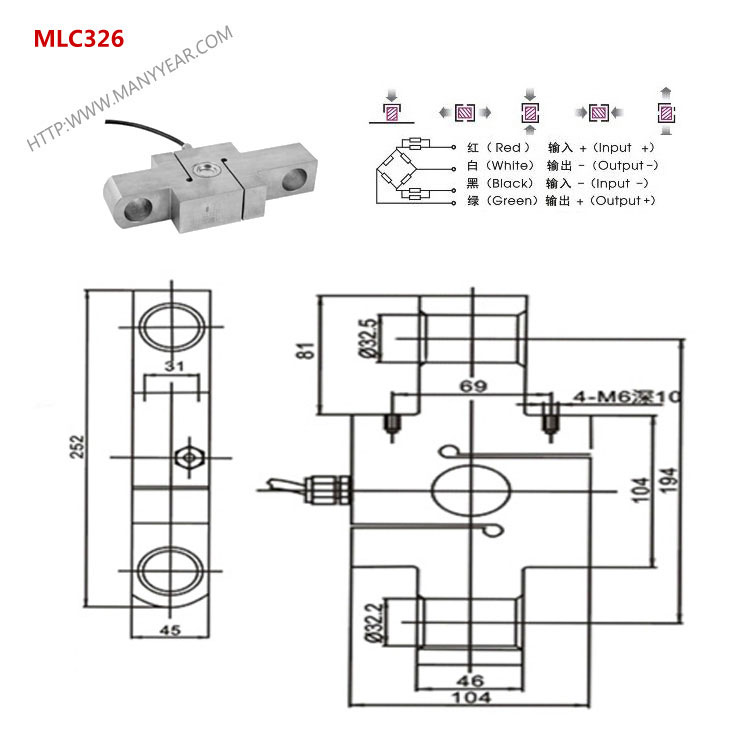

MLC326 crane scale load cell, 10Ton tension range, alloy/stainless steel, 252*104*45mm, for crane, hopper and packaging scales, high precision and durable.
Model: MLC326
Category: Tension load cell
Measuring range: 10ton
Size: 252*104*45mm
Material: alloy steel, stainless steel
Applications: Crane scales, hopper scales, packaging scales, overload limiters
| Technical specifications | |||
| Comprehensive error: | 0.05%FS | Output resistance: | 352±5Ω |
| Rated output: | 2.0±0.005mv/v | Insulation resistance: | ≥5000MΩ(100VDC) |
| Nonlinearity: | 0.05%FS | Operating Voltage: | 9~12VDC |
| Lag: | 0.05%FS | Compensation temperature: | -10~+40 ℃ |
| Repeatability: | 0.03%FS | Operating temperature: | -20~+55 ℃ |
| Creep: | 0.03%FS/10MIN | Effect of Temp. on zero point: | 0.05%FS/10 ℃ |
| Zero balance: | ±1%FS | Effect of Temp. on sensitivity: | 0.05%FS/10 ℃ |
| Input resistance: | 400±10Ω | Protection level: | IP66 & IP68 |
