MLC116 Ladle Scale Load Cell, bridge-type for pressure testers/ladle scales (50t-200t). Alloy/stainless steel, -20~+250℃ resistance, IP66&IP68, easy installation.
MLC116 Ladle Scale Load Cell, a bridge-type sensor designed for high-pressure and heavy-load scenarios, covers a measuring range of 50t-200t, suitable for industrial equipment such as pressure testing machines and ladle scales. Made of high-quality alloy steel and stainless steel, it features corrosion resistance and high strength, with an operating temperature range of -20~+250℃ and protection class IP66&IP68, easily adapting to harsh industrial environments. Four size options are available from 450*120*130mm to 620*180*175mm to meet different installation needs. Wiring adopts standard configuration: red (Input+), white (Output-), black (Input-), green (Output+), enabling easy installation. With 0.1%FS combined error, 0.03%FS repeatability accuracy, rated output of 2±0.005mv/v, and insulation resistance ≥5000MΩ, the product delivers precise and stable measurement data. Whether for ladle weighing in the metallurgical industry or force measurement of heavy equipment, it provides reliable guarantee, making it a high-quality choice in the industrial heavy-load weighing field.
Model: MLC116
Category: Bridge Load Cell
Range: 50t, 100t, 150t, 200t

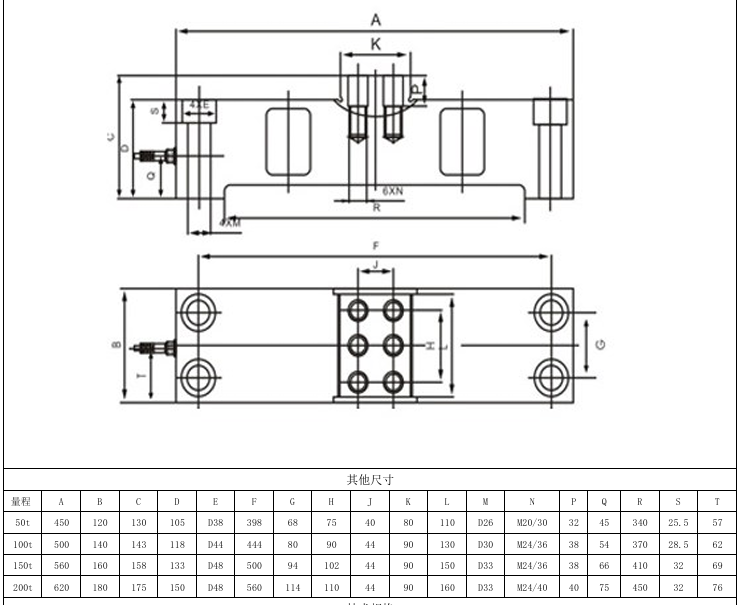

Dimension: 450*120*130mm/500*140*143mm/560*160*158mm/620*180*175mm
Material: alloy steel,stainless steel
Characteristic: high temperature load cell,steel embody scale load cell,ladle scale load cell
