MLC115 High-Temperature Load Cell, bridge-type for ladle/overhead crane scales (10t-60t). Alloy/stainless steel, -20~+55℃ resistance, IP66&IP68, high precision, easy installation.
MLC115 is specifically designed for bearing seat installation of ladle scales and overhead crane scales, with a measuring range of 10t-60t, suitable for high-temperature industrial environments. Crafted from alloy steel and stainless steel, it boasts both high-temperature resistance and corrosion resistance, with an protection class of IP66&IP68, easily coping with harsh working conditions of -20~+55℃. Two size options are available: 390*56*127mm and 500*86*173mm. Wiring adopts standard configuration: red (Input+), white (Output-), black (Input-), green (Output+), enabling easy installation. Featuring 0.05%FS combined error, 0.03%FS repeatability accuracy, rated output of 2±0.005mv/v, and insulation resistance ≥5000MΩ, it delivers precise and stable data. Whether for high-temperature metallurgical operations or heavy machinery weighing, it achieves reliable measurement, making it a high-quality choice in the industrial weighing field, safeguarding production efficiency and measurement accuracy.
high-temperature load cell, ladle scale load cell, overhead crane scale load cell
Model: MLC115
Category: Bridge Load Cell
Range: 10t, 15t, 20t, 30t, 40t, 50t, 60t

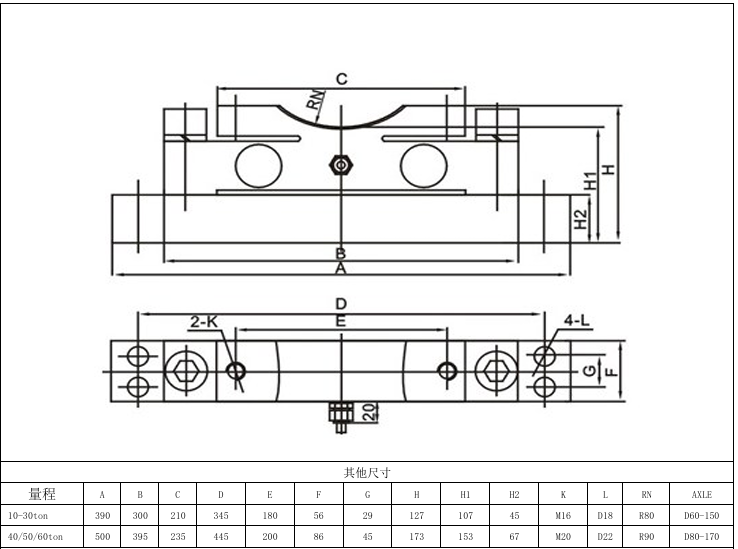

Dimension: 390*56*127/500*86*173mm
Material: alloy steel,stainless steel
Characteristic: ladle scale load cell, overhead crane scale load cell
