high temperature load cell, steel embody scale load cell, ladle scale weight sensor

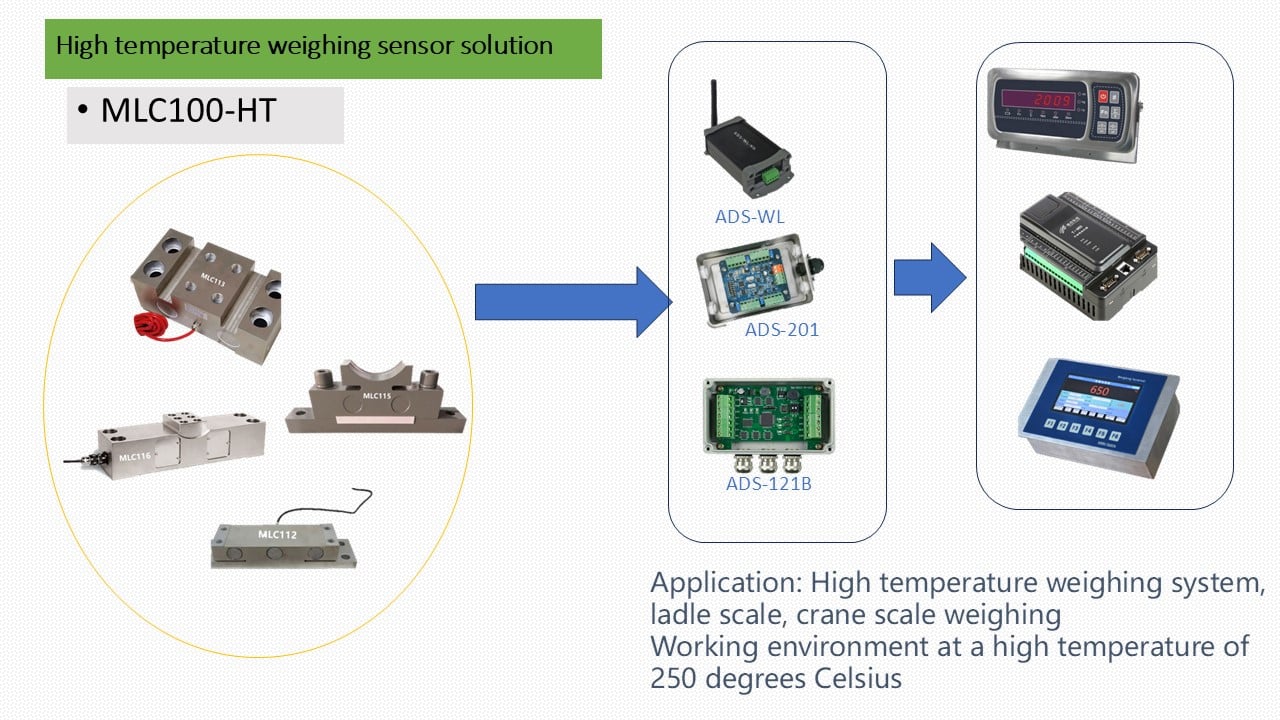

MLC113 is a bridge-type sensor designed for heavy-duty high-temperature industrial applications, with a range of 10-50t. Suitable for ladle scales, overhead crane scales and force measuring machines, it’s made of alloy steel and stainless steel with IP66&IP68 protection. Operating stably at -20~+250℃, it features 0.05%FS non-linearity, 0.03%FS repeatability and creep performance, delivering accurate data with a rated output of 2±0.005mv/v. Available in three sizes with standard 4-color wiring, it fits 9~12VDC power supply, offering a reliable solution for heavy-duty high-temperature weighing.
Model: MLC113
Category: Bridge Load Cell
Load range: 10t, 20t, 30t, 40t, 50t

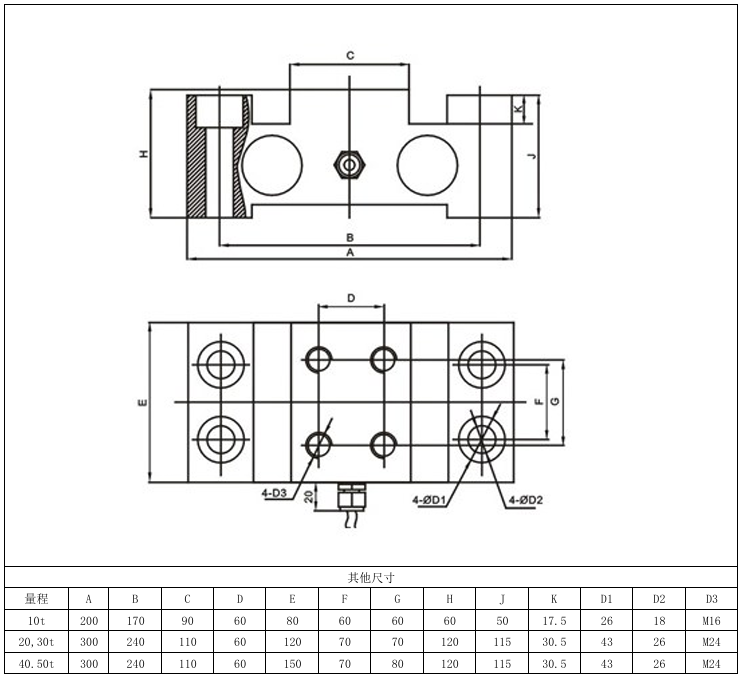

Dimension:200*80*60/300*120*120/300*150*120mm
Material: alloy steel, stainless steel
Characteristic: steel embody scale load cell, high temperature load cell, ladle scale weight sensor
