MLC121 Vehicle-Mounted Load Cell, bridge-type for 2ton lightweight weighing. Alloy/stainless steel, -35~+65℃, IP66&IP68, compact, precise.
MLC121 is a compact bridge-type sensor designed for lightweight weighing scenarios, has a measuring range of 2ton, suitable for overhead crane scales, truck scales and other equipment, making it an excellent choice for traffic weighing and industrial measurement. Made of alloy steel and stainless steel, it features corrosion resistance, wear resistance and high strength, with a wide operating temperature range of -35~+65℃ and protection class IP66&IP68, easily withstanding complex environmental tests. With a compact size of only 160*30*25mm, it takes up little space. Equipped with standard wiring: red (Input+), white (Output-), black (Input-), green (Output+) and 2-M10 mounting holes, it is easy to install and highly adaptable. Boasting 0.2%FS combined error, 0.05%FS repeatability accuracy, rated output of 2±0.02mv/v and insulation resistance ≥5000MΩ, the product delivers precise and stable measurement data, providing reliable guarantee for lightweight vehicle-mounted and industrial weighing.
Model: MLC121
Category: Bridge Load Cell
Load range:2ton

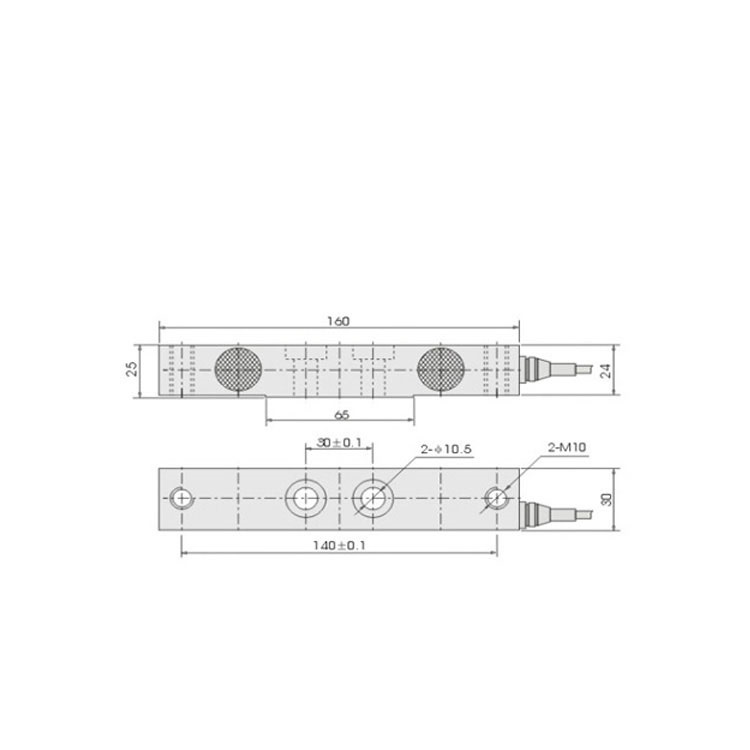

Dimension:160*30*25mm
Material: alloy steel, stainless steel
Characteristic: overhead scale weight sensor,force load cell
