MLC324 Plate ring tension force sensor 15-300Ton range, alloy steel/stainless steel, for crane overload, crane scales and tensile testers.
Model: MLC324
Category: Plate ring weighing sensor
Scope: 15t, 20t, 30t, 50t, 100t, 150t, 200t, 300t

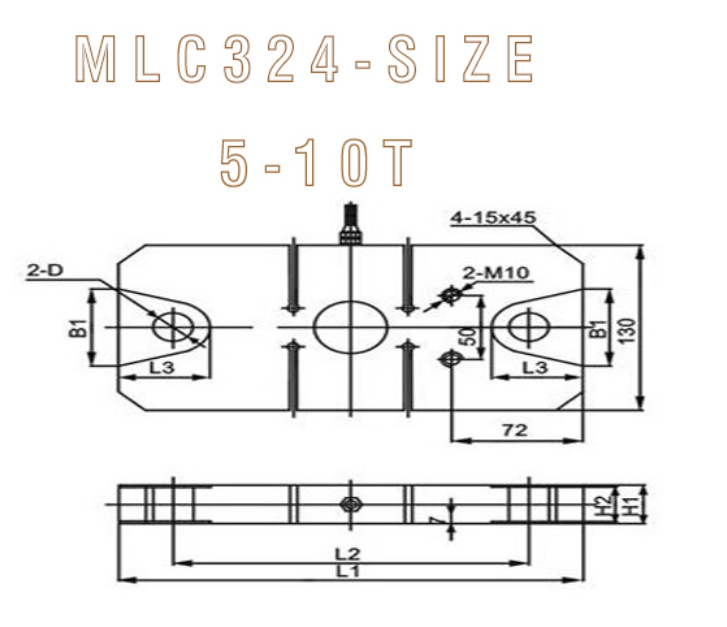

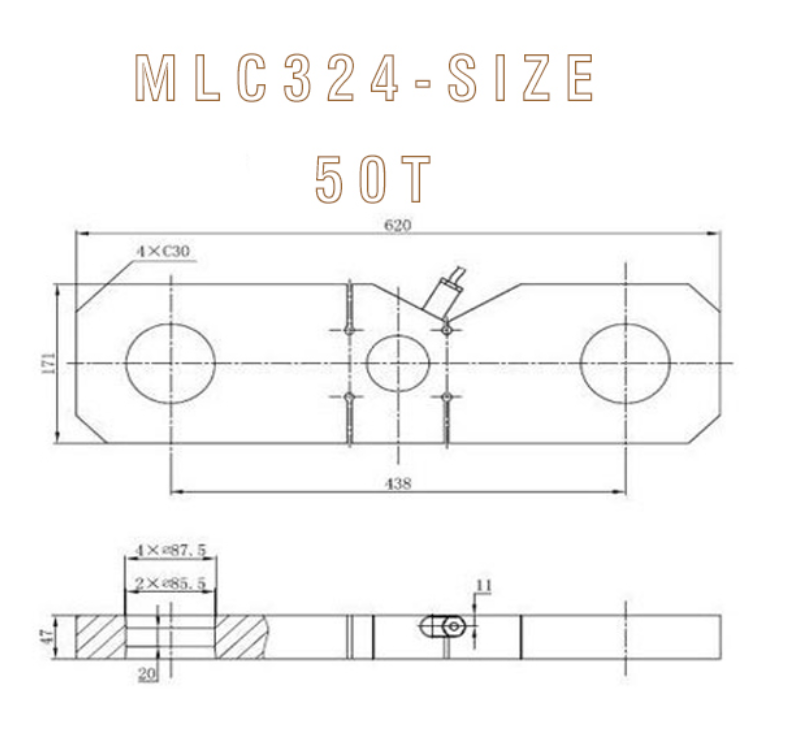

Size: 340x130x48mm; 620x171x47mm； 500x190x130mm
Material: alloy steel, stainless steel
Application: Hook scale, crane safety overload, tensile testing machine
| Technical specification | |||
| Comprehensive error: | 0.05%FS | Output resistance: | 352±5Ω |
| Rated output: | 1.8±0.005mV/V | Insulation resistance: | ≥5000MΩ(100VDC) |
| Nonlinearity: | 0.05%FS | Operating Voltage: | 9~12VDC |
| Lag: | 0.05%FS | Compensation temperature: | -10~+40℃ |
| Repeatability: | 0.03%FS | Operating temperature: | -20~+55℃ |
| Creep: | 0.03%FS/10Min | Effect of Temp. on zero point: | 0.05%FS/10℃ |
| Zero balance: | ±1%FS | Effect of Temp. on sensitivity: | 0.05%FS/10℃ |
| Input resistance: | 380±10Ω | Protection level: | IP66 & IP68 |
| Comprehensive error: | 200% | Output resistance: | 300% |
