MLC401ZSF Force Sensor
Range: 2-20,30-50,60-100,200,300,500,700-1000t
Dimension: 76*82.6mm;125*142mm;223*250mm
Material: Alloy Steel, Stainless Steel
Dimension: 76*82.6mm;125*142mm;223*250mm
Material: Alloy Steel, Stainless Steel

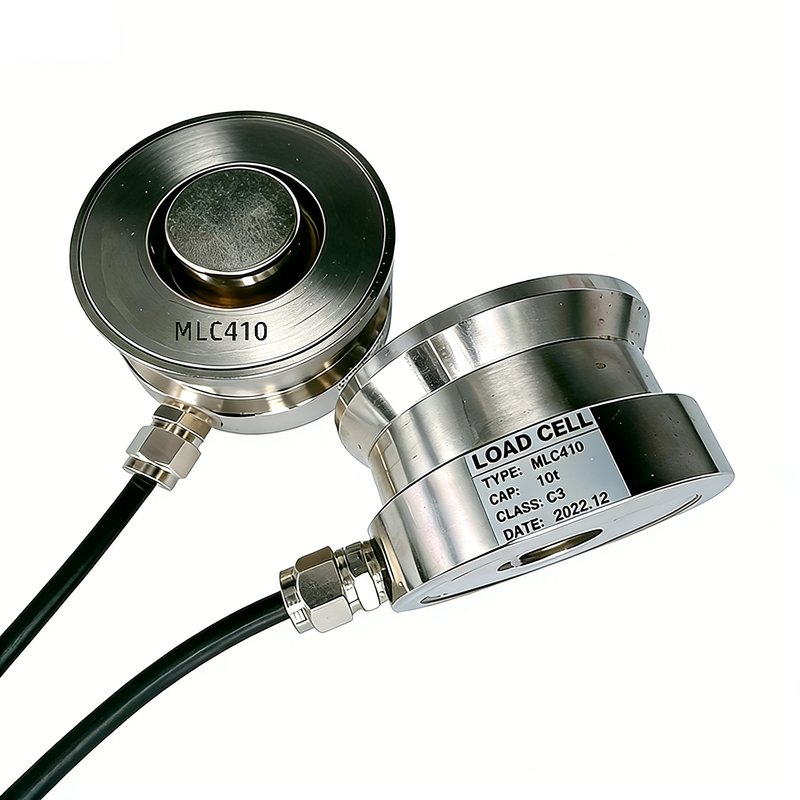

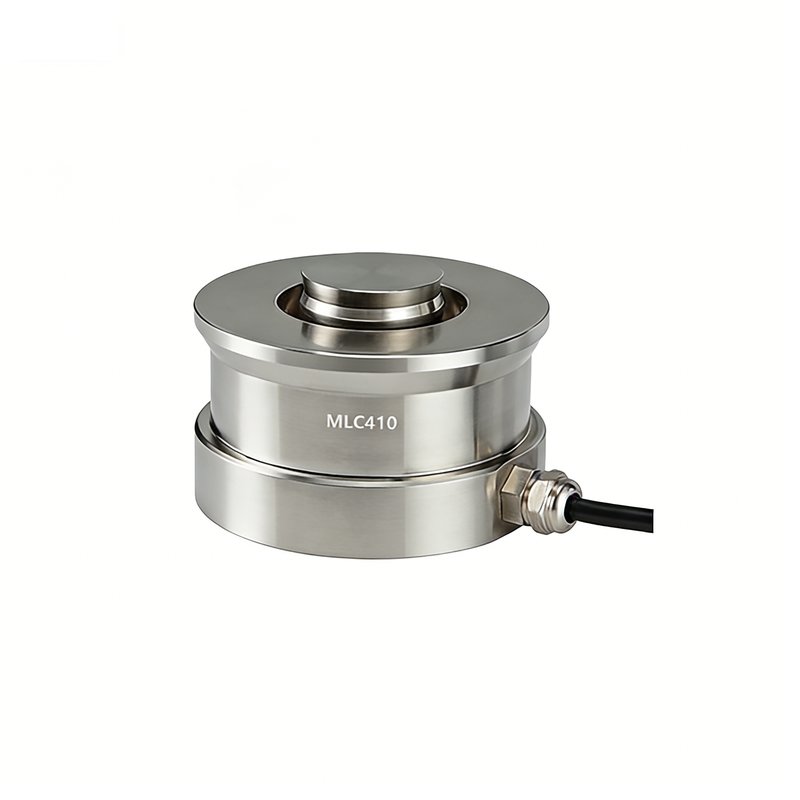

MLC410 Force Sensor
Product Introduction
Model: MLC410
Category: Column Type Force Sensor
Range: 1t,2.2t,3.3t,4.7t,10t,15t,22t,33t,47t,68t,100t,150t, 220t, 330t,470T
Accuracy: 0.05%fs
Operating Temperature: -40~+65ºC
Dimension: 60*43mm;130*75mm;150*100mm
Material: Alloy Steel, Stainless Steel
Application: Silo Scale Load Cell, Hydraulic Press Force Sensor, Force Testing Machine Sensor, Large Range Load Cell
Category: Column Type Force Sensor
Range: 1t,2.2t,3.3t,4.7t,10t,15t,22t,33t,47t,68t,100t,150t, 220t, 330t,470T
Accuracy: 0.05%fs
Operating Temperature: -40~+65ºC
Dimension: 60*43mm;130*75mm;150*100mm
Material: Alloy Steel, Stainless Steel
Application: Silo Scale Load Cell, Hydraulic Press Force Sensor, Force Testing Machine Sensor, Large Range Load Cell
Download related documents
Contact immediately
Technical Specifications
MLC410 Force Sensor by ManYear Technology is a high-quality Column Type Force Sensor. Range 1t,2.2t,3.3t,4.7t,10t,15t,22t,33t,47t,68t,100t,150t, 220t, 330t,470T, accuracy 0.05%fs, operating temperature -40~+65ºC. Dimension 60*43mm;130*75mm;150*100mm. Material: Alloy Steel, Stainless Steel. Applications: Silo Scale Load Cell, Hydraulic Press Force Sensor, Force Testing Machine Sensor, Large Range Load Cell. Keywords: Force Sensor, Force Testing Machine Sensor. ManYear MLC410 delivers high accuracy, stable performance, and long-term reliability, making it an ideal choice for Column Type Force Sensor measurement in industrial applications. Trusted quality assurance and dedicated technical support are provided for customers worldwide.
