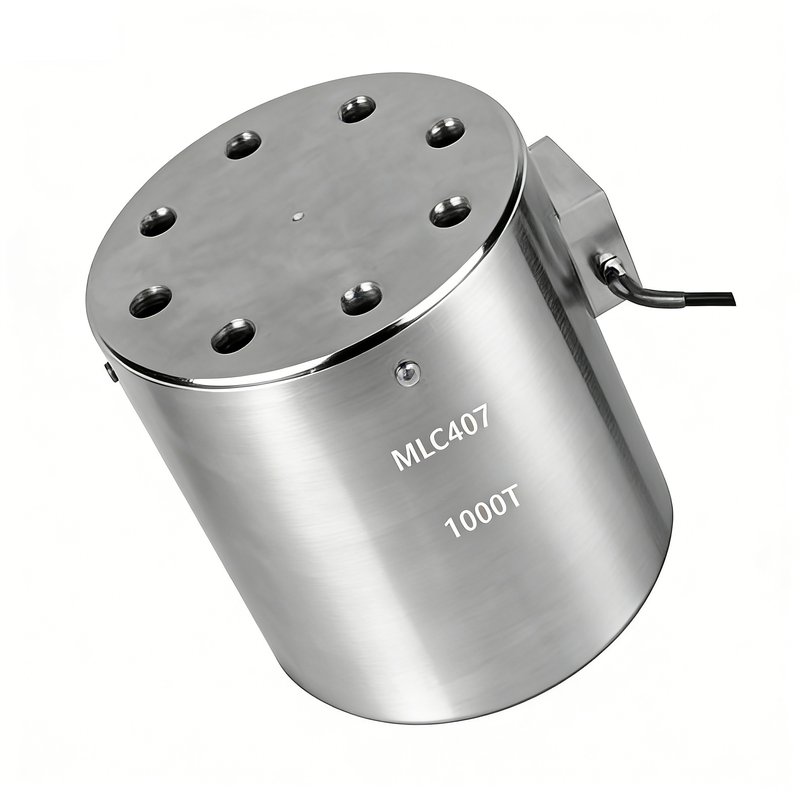

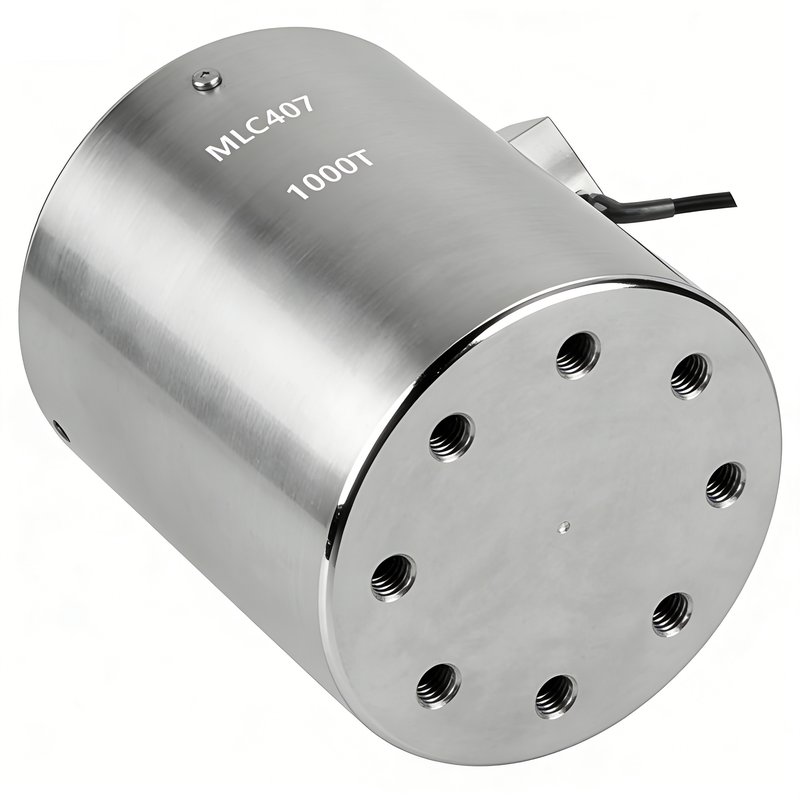

MLC407-500t wide-range column load cell
MLC407-500t wide-range column load cell
MLC407-500t wide-range column load cell
MLC407-500t wide-range column load cell
  • MLC407-500t wide-range column load cell
  • MLC407-500t wide-range column load cell
  • MLC407-500t wide-range column load cell
  • MLC407-500t wide-range column load cell

MLC407-500t wide-range column load cell

Product Introduction

Model: MLC407-300, 500, 600ton

Category: Column-type force sensor

Measuring range: 300,500ton

Comprehensive error: 0.1%fs

Operating temperature: -40~+65ºC

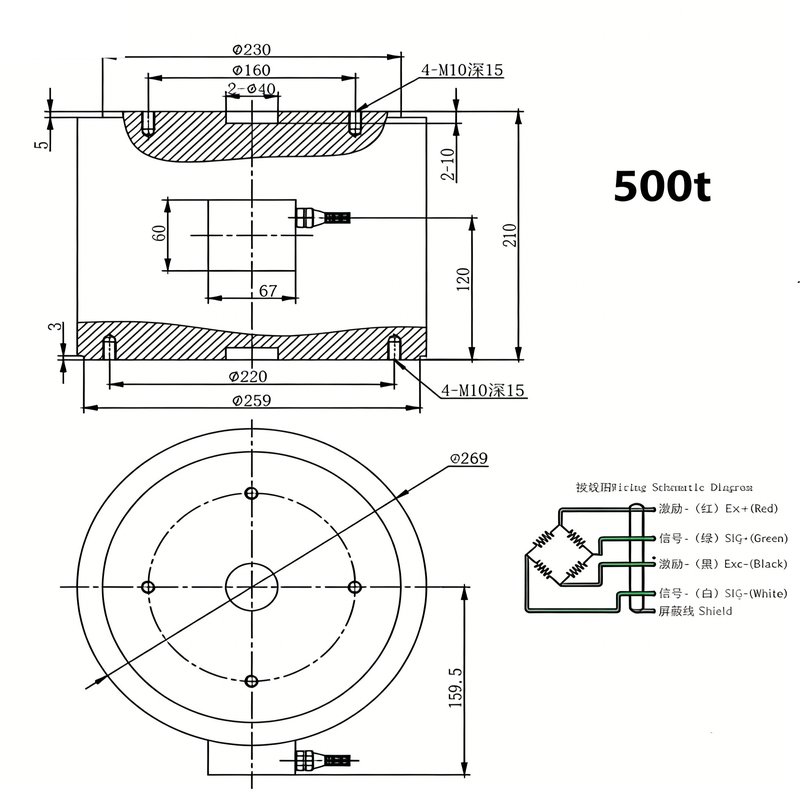

Size: 230*210mm

Material: alloy steel

Download related documents
Contact immediately

Technical Specifications

MLC407-300,500,600ton Force Sensor by ManYear Technology is a high-quality Column Type Force Sensor. Range 300,500ton, accuracy 0.1%fs, operating temperature -40~+65ºC. Dimension 230*210mm. Material: Alloy Steel. Applications: Hydraulic Press Force Sensor, Oil Press Force Sensor, Force Testing Machine Sensor, Large Range Force Sensor. Keywords: Force Sensor, Hydraulic Press Force Sensor. ManYear MLC407-300,500,600ton delivers high accuracy, stable performance, and long-term reliability, making it an ideal choice for Column Type Force Sensor measurement in industrial applications. Trusted quality assurance and dedicated technical support are provided for customers worldwide.
