MLC414 Bolt Type Force Sensor
Dimension: Ø59*120mm, Ø 75*160mm, Ø 86*200mm
Material: Alloy Steel, Stainless Steel
Accuracy: 0.1%fs
Material: Alloy Steel, Stainless Steel
Accuracy: 0.1%fs

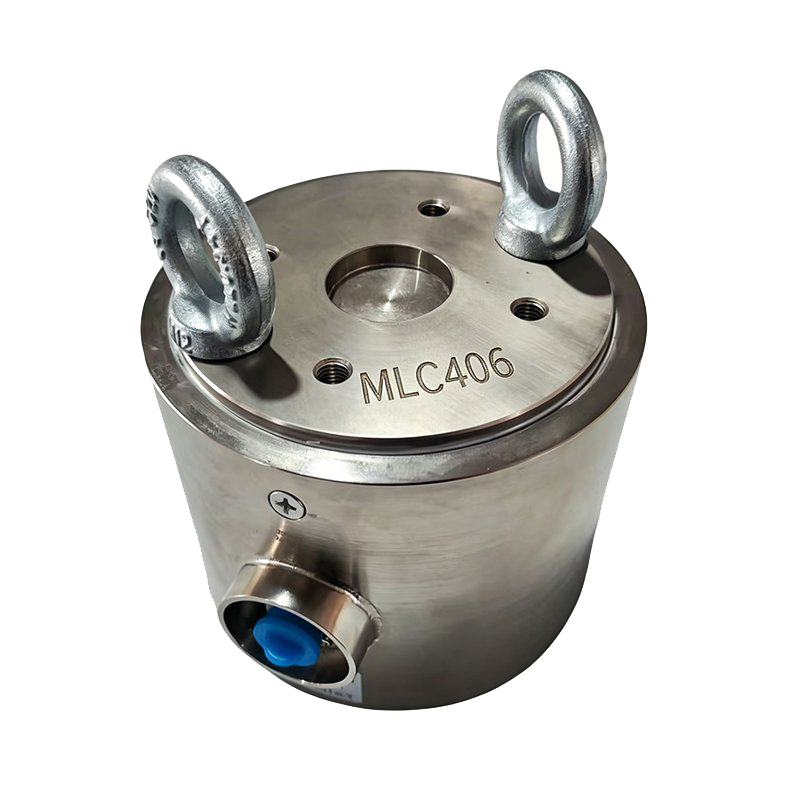

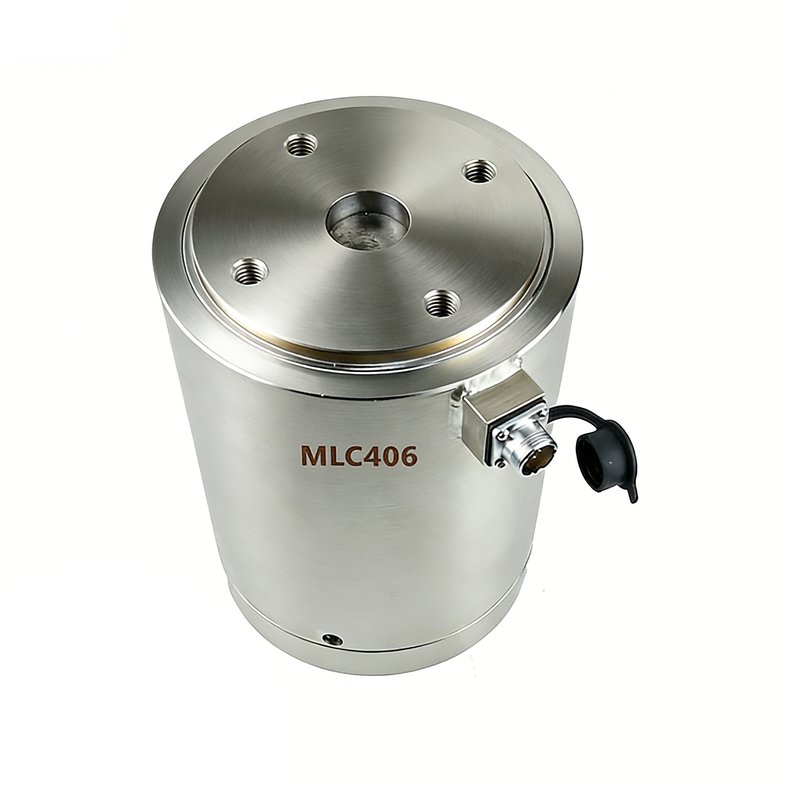

MLC406 Force Sensor
Product Introduction
Model: MLC406
Category: Column Type Force Sensor
Range: 200,300,500,1000ton
Accuracy: 0.2%fs
Operating Temperature: -40~+65ºC

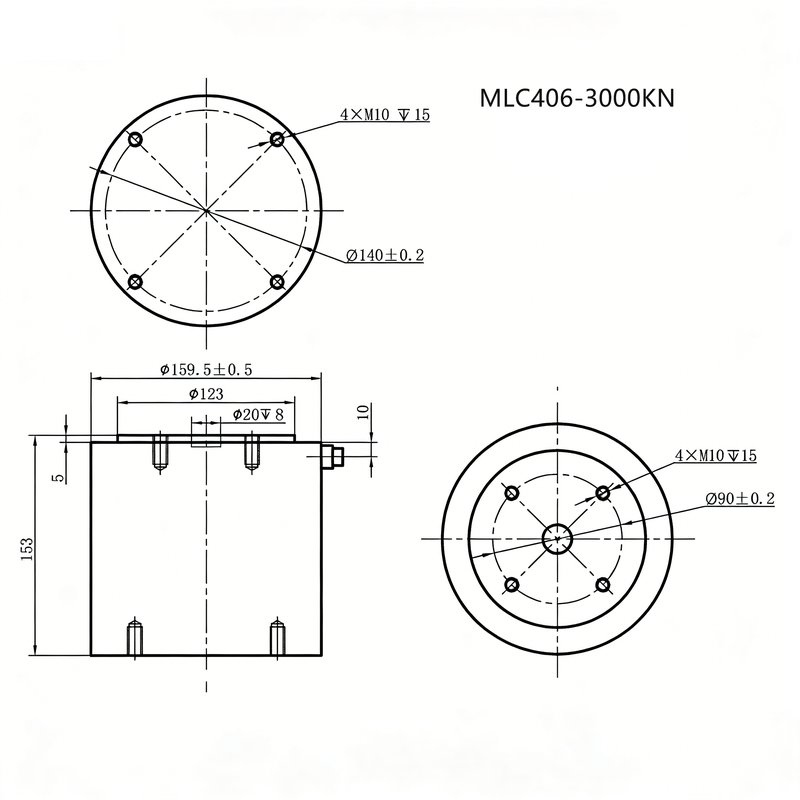

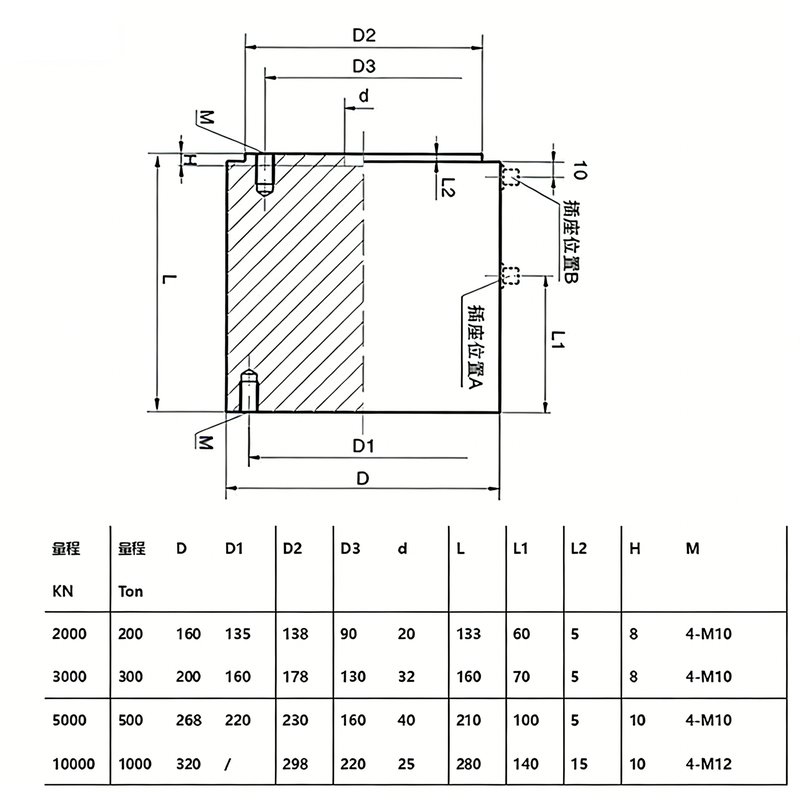

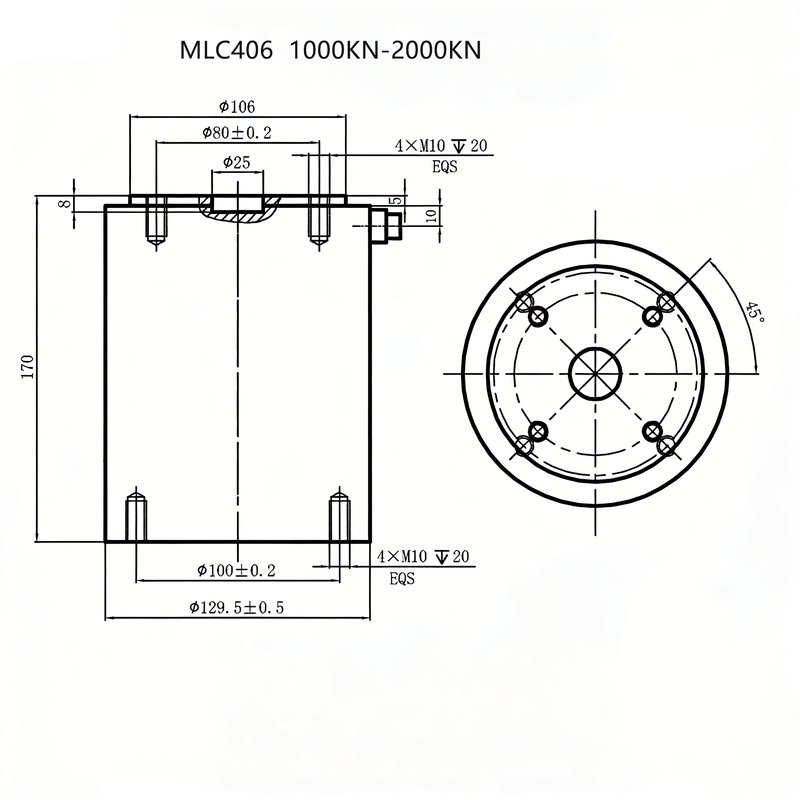

Dimension: 160*133mm, 200*160mm, 268*210mm, 320*280mm
Material: Alloy Steel, Stainless Steel
Application: Hydraulic Press Force Sensor, Oil Press Force Sensor, Force Testing Machine Sensor, Large Range Force Sensor
Category: Column Type Force Sensor
Range: 200,300,500,1000ton
Accuracy: 0.2%fs
Operating Temperature: -40~+65ºC
Dimension: 160*133mm, 200*160mm, 268*210mm, 320*280mm
Material: Alloy Steel, Stainless Steel
Application: Hydraulic Press Force Sensor, Oil Press Force Sensor, Force Testing Machine Sensor, Large Range Force Sensor
Download related documents
Contact immediately
Technical Specifications
MLC406 Force Sensor by ManYear Technology is a high-quality Column Type Force Sensor. Range 200,300,500,1000ton, accuracy 0.2%fs, operating temperature -40~+65ºC. Dimension 160*133mm, 200*160mm, 268*210mm, 320*280mm. Material: Alloy Steel, Stainless Steel. Applications: Hydraulic Press Force Sensor, Oil Press Force Sensor, Force Testing Machine Sensor, Large Range Force Sensor. Keywords: Force Sensor, Hydraulic Press Force Sensor. ManYear MLC406 delivers high accuracy, stable performance, and long-term reliability, making it an ideal choice for Column Type Force Sensor measurement in industrial applications. Trusted quality assurance and dedicated technical support are provided for customers worldwide.
