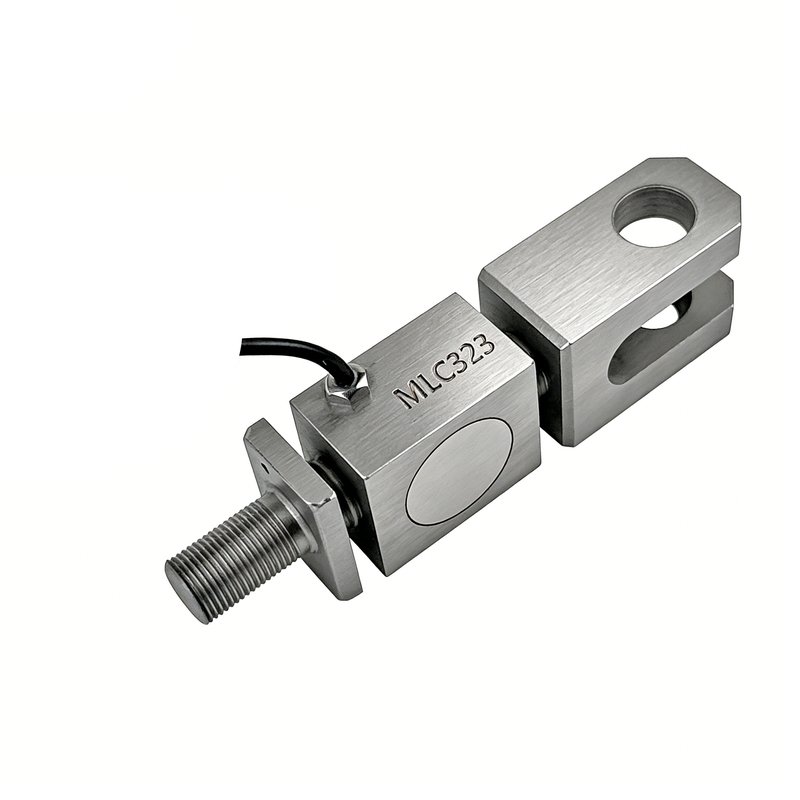

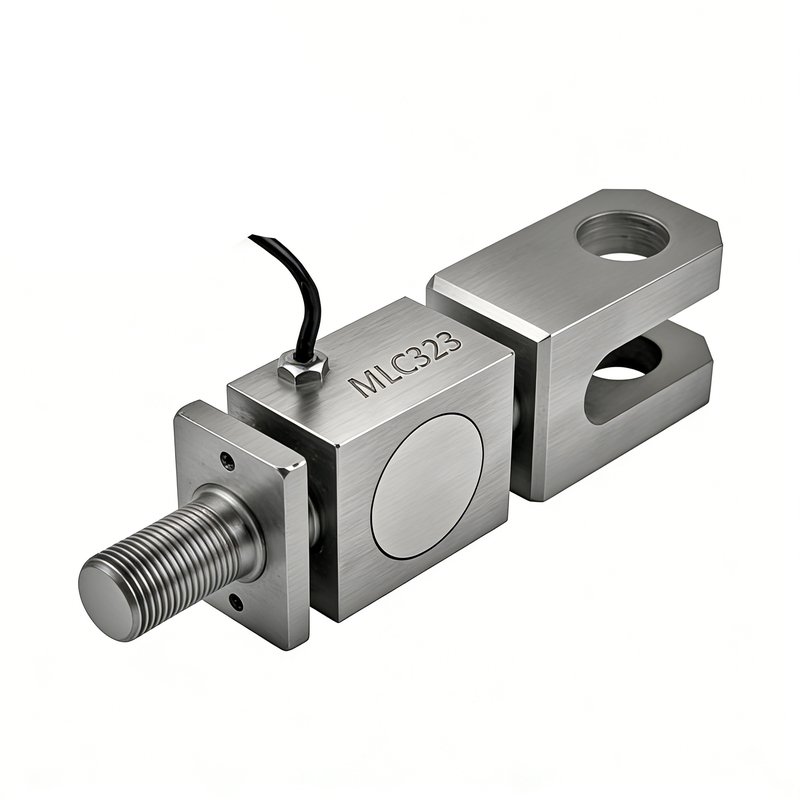

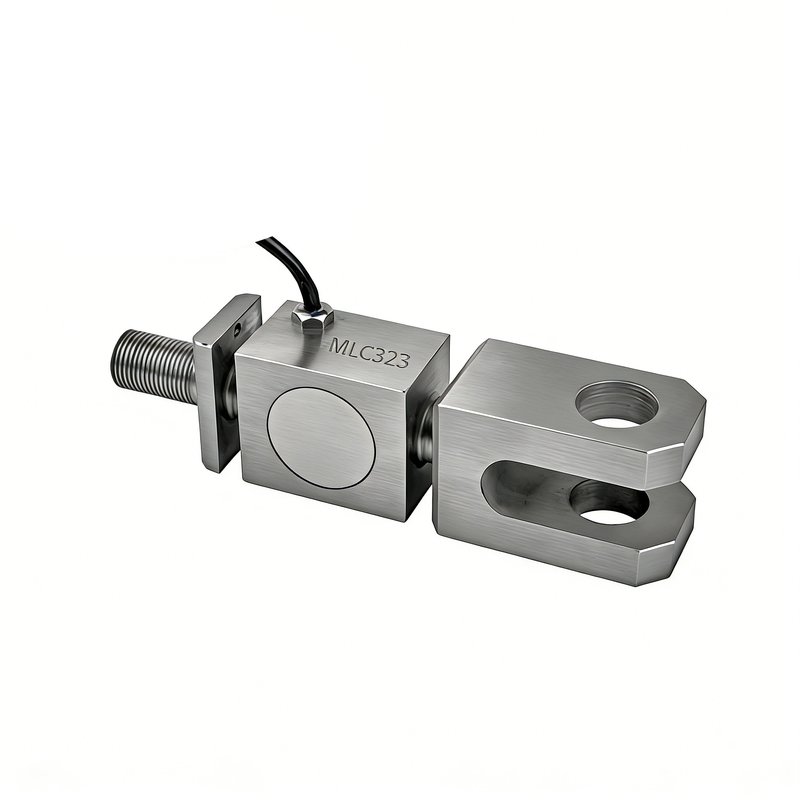

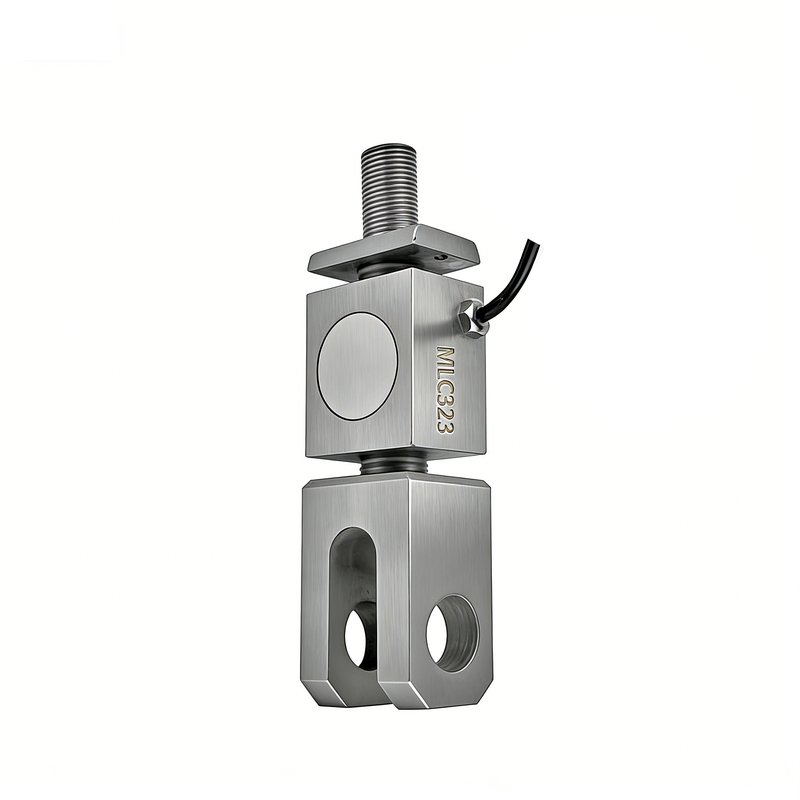

MLC323 - Hook Scale, Crane Weighing Sensor, 5ton

MLC323 - Hook Scale, Crane Weighing Sensor, 5ton

Product Introduction

Model: MLC323
Category: Plate Ring Type Load Cell
Range: 3t, 5t
Accuracy: 0.3%FS
Operating Temperature: -30~+70ºC

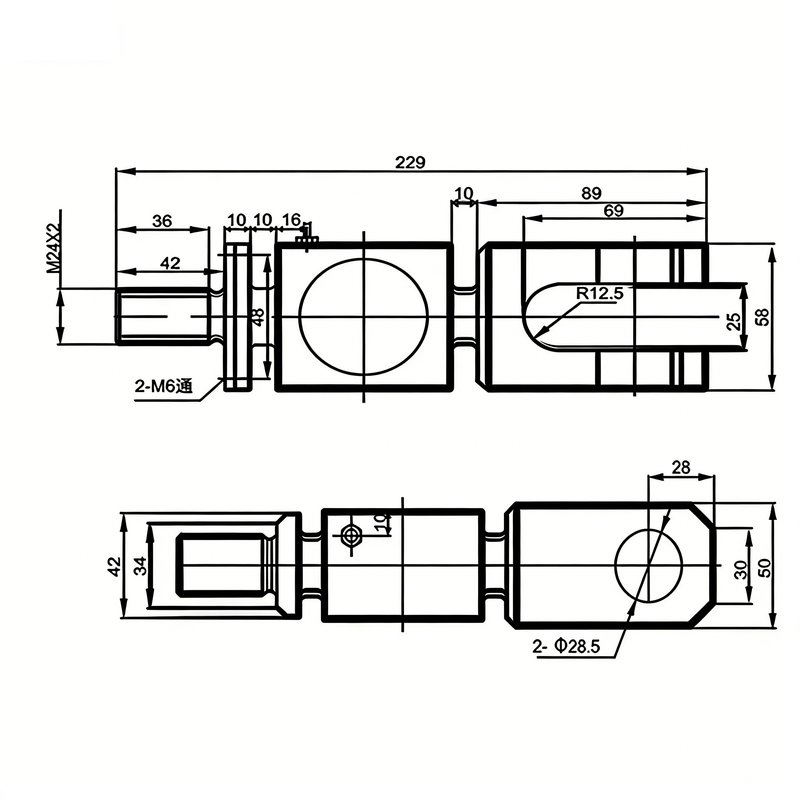

Dimension: 229*58*50mm
Material: Alloy Steel, Stainless Steel
Application: Hook Scale Load Cell, Crane Load Cell, Testing Machine Force Sensor

Download related documents

MLC323-Crane Scale - Hook Scale Overload Protection Plate Ring TypeTension Load Cell5ton.pdf

Contact immediately

Technical Specifications

MLC323 Plate Ring Type Load Cell by ManYear Technology is a high-quality Plate Ring Type Load Cell. Range 3t, 5t, accuracy 0.3%FS, operating temperature -30~+70ºC. Dimension 229*58*50mm, compact structure and easy to install. Made of Alloy Steel, Stainless Steel, offering high strength, corrosion resistance and long-term stability. Widely used in Hook Scale Load Cell, Crane Load Cell, Testing Machine Force Sensor. ManYear professional Plate Ring Type Load Cell solution, high quality and reliable.
