Product Introduction
Model: MLC321
Category: Plate Ring Type Load Cell
Range: 40ton
Accuracy: 0.3%FS
Operating Temperature: -30~+70ºC

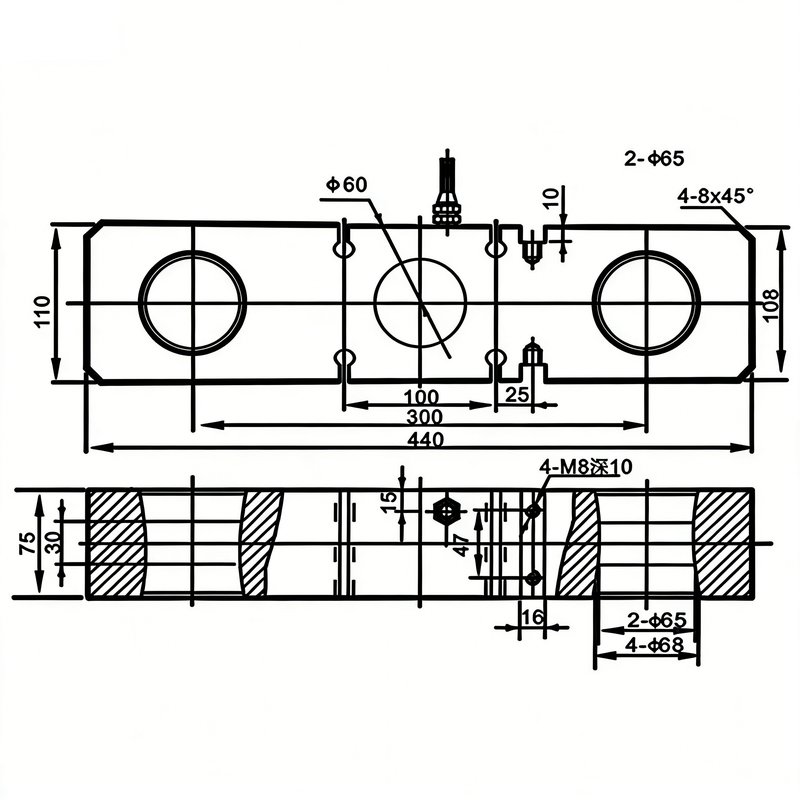

Dimension: 440*108*75mm
Material: Alloy Steel, Stainless Steel
Application: Hook Scale Load Cell, Crane Load Cell, Testing Machine Force Sensor
Download related documents
MLC321-Hook Scale,Crane,Tension Test Plate Ring TypeTensionSensor40ton.pdf
Contact immediately

Technical Specifications

MLC321 Plate Ring Type Load Cell by ManYear Technology is a high-quality Plate Ring Type Load Cell. Range 40ton, accuracy 0.3%FS, operating temperature -30~+70ºC. Dimension 440*108*75mm, compact structure and easy to install. Made of Alloy Steel, Stainless Steel, offering high strength, corrosion resistance and long-term stability. Widely used in Hook Scale Load Cell, Crane Load Cell, Testing Machine Force Sensor. ManYear professional Plate Ring Type Load Cell solution, high quality and reliable.
