MLC306 S Type Load Cell
Range: 500kg,750kg,1000kg,20ton
Dimension: Ø88*44*26mm, Ø 78*185mm, Ø 105*225mm
Material: Alloy Steel, Stainless Steel
Dimension: Ø88*44*26mm, Ø 78*185mm, Ø 105*225mm
Material: Alloy Steel, Stainless Steel

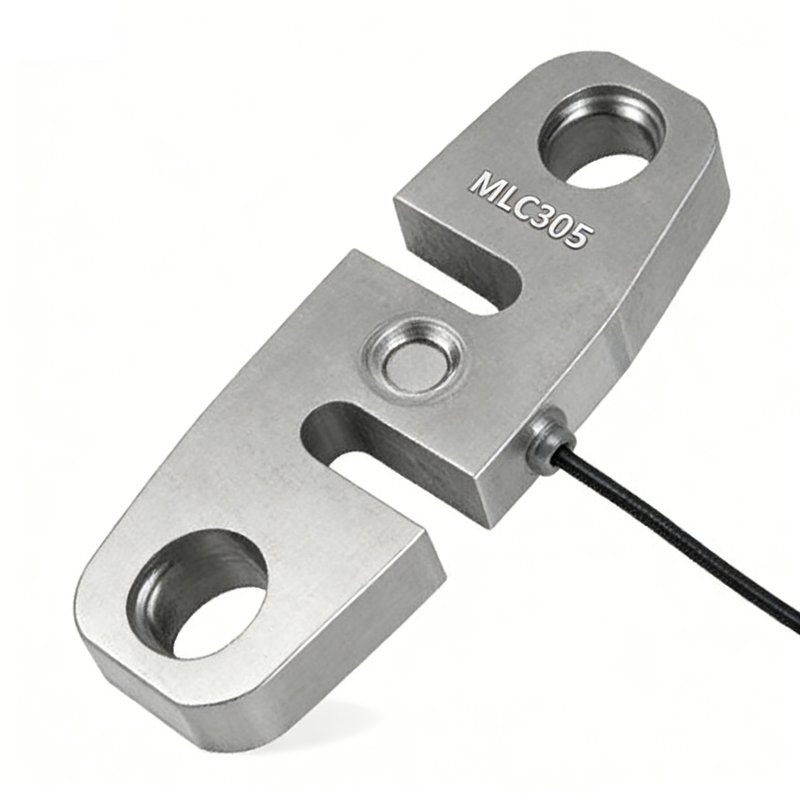

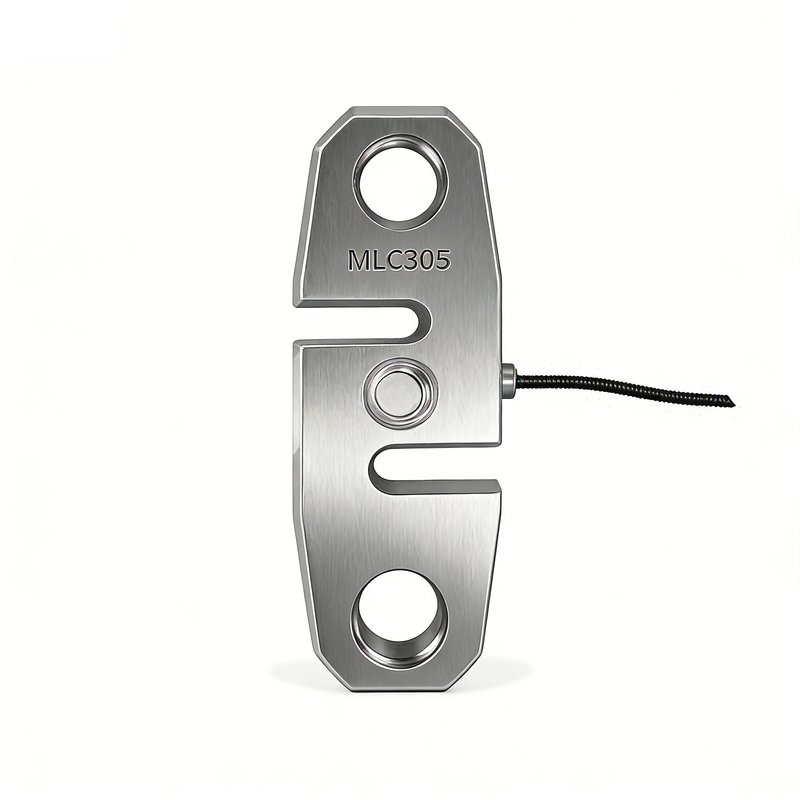

MLC305 S Type Load Cell
Product Introduction
Model: MLC305
Category: S Type Load Cell
Range: 10KLB
Accuracy: 0.03%FS
Operating Temperature: -30~+70ºC

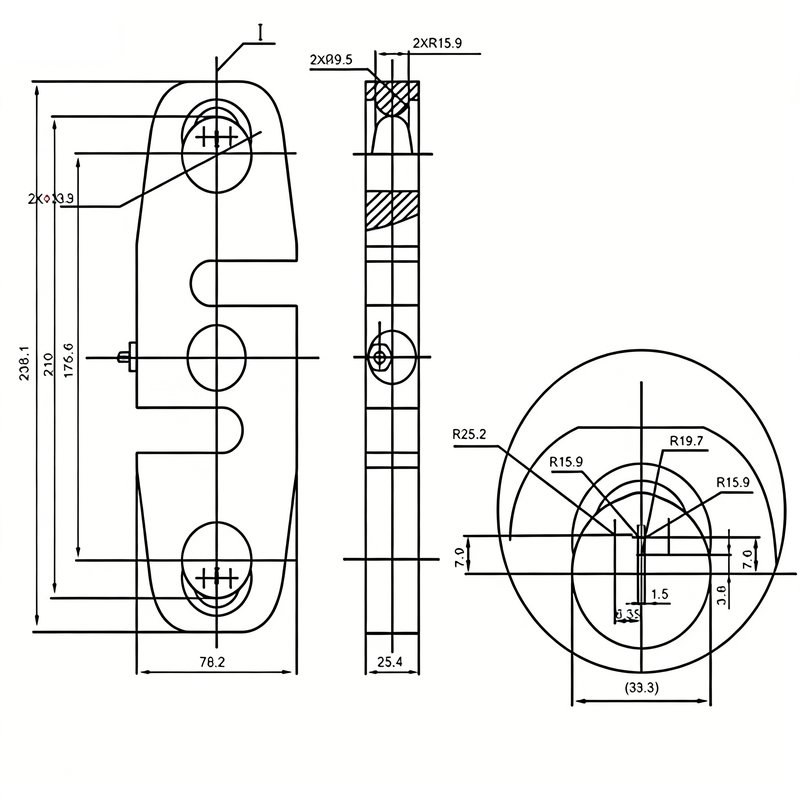

Dimension: 238.1*76.2*25.4mm
Material: Alloy Steel, Stainless Steel
Application: Hook Scale Load Cell, Crane Load Cell, Tension Sensor
Category: S Type Load Cell
Range: 10KLB
Accuracy: 0.03%FS
Operating Temperature: -30~+70ºC
Dimension: 238.1*76.2*25.4mm
Material: Alloy Steel, Stainless Steel
Application: Hook Scale Load Cell, Crane Load Cell, Tension Sensor
Download related documents
Contact immediately
Technical Specifications
MLC305 S Type Load Cell by ManYear Technology is a high-quality S Type Load Cell. Range 10KLB, accuracy 0.03%FS, operating temperature -30~+70ºC. Dimension 238.1*76.2*25.4mm. Material: Alloy Steel, Stainless Steel. Applications: Hook Scale Load Cell, Crane Load Cell, Tension Sensor. Keywords: S Type Load Cell, Tension Compression Force Sensor. ManYear MLC305 delivers high accuracy, stable performance, and long-term reliability, making it an ideal choice for S Type Load Cell measurement in industrial applications. Trusted quality assurance and dedicated technical support are provided for customers worldwide.
