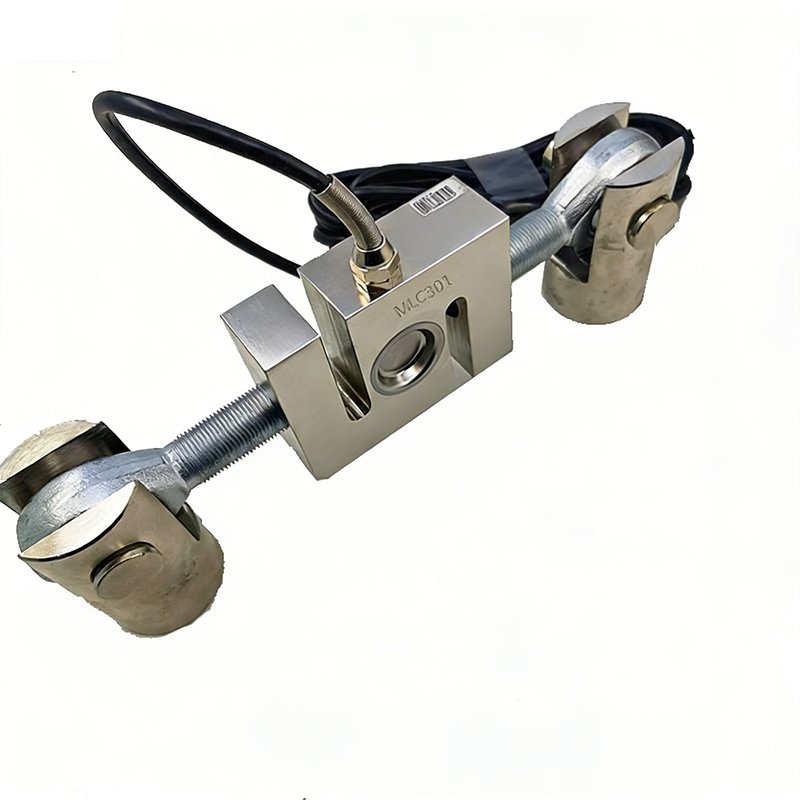

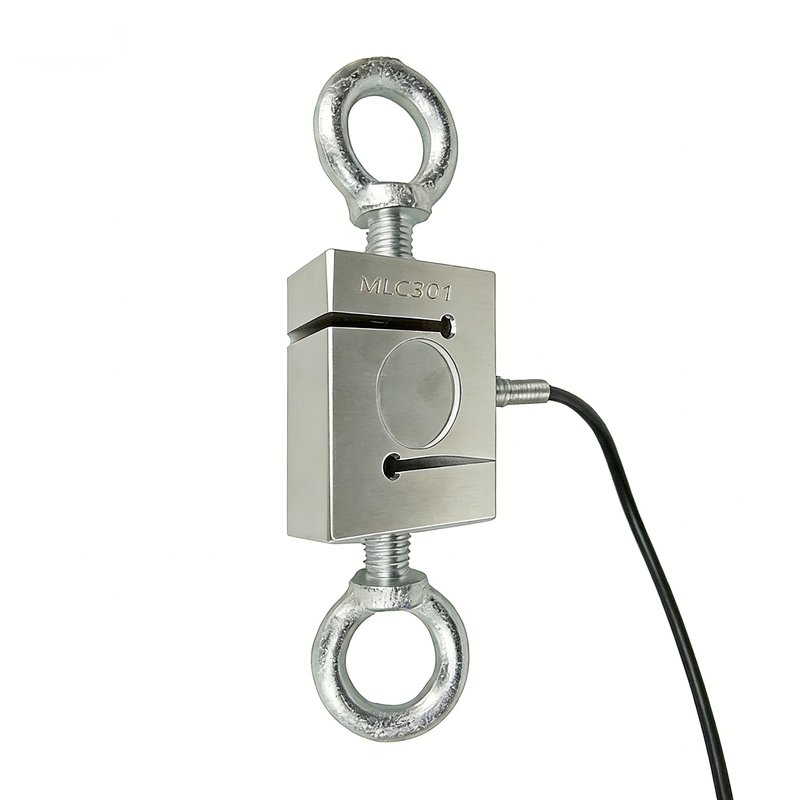

MLC301 S Type Load Cell

Product Introduction

Model: MLC301
Category: S Type Load Cell
Load Range: 50, 100, 150, 200, 250, 300, 500kg, 1, 2, 5, 7.5, 10, 20ton
Accuracy: 0.03%FS
Operating Temperature: -30~+70ºC

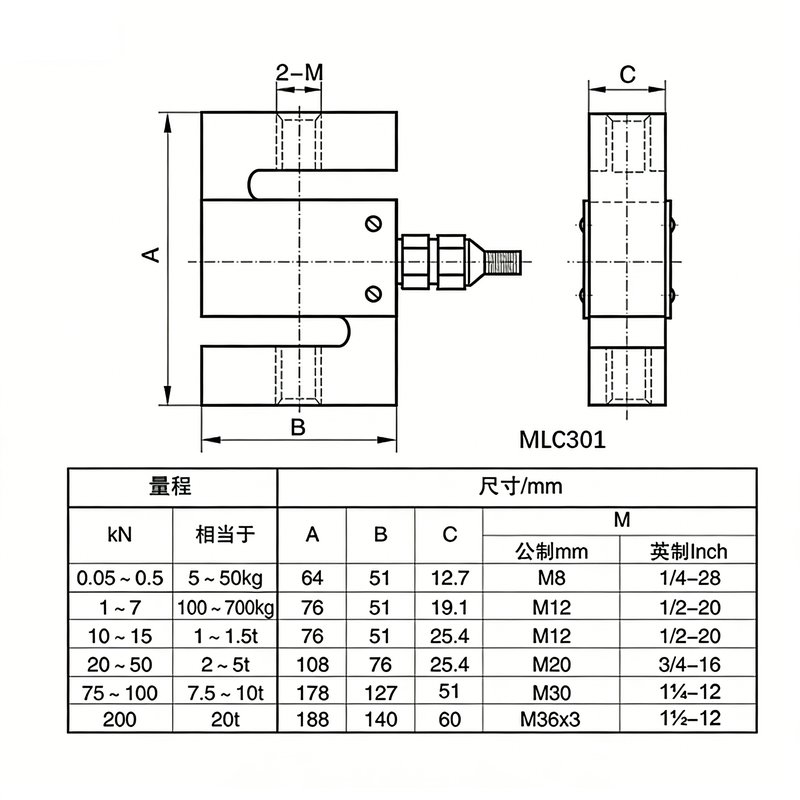

Dimension: 64*51*12.7mm, 76*51*19.1,,.16*51*25.4mm,108*76*25.4mm,178*127*51mm,188*140*61mm
Material: Alloy Steel, Stainless Steel
Safe Overload: 120%
Ultimate Overload: 200%
Application: Hook Scale Load Cell, Crane Load Cell, Testing Machine Force Sensor, Tension Sensor, Tension Compression Load Cell

Download related documents

MLC301-Hook Scale,Tension-Compression TestS-typeLoad Cell 10t.pdf

Contact immediately

Technical Specifications

MLC301 S Type Load Cell by ManYear Technology is a high-quality S Type Load Cell. Range 50, 100, 150, 200, 250, 300, 500kg, 1, 2, 5, 7.5, 10, 20ton, accuracy 0.03%FS, operating temperature -30~+70ºC. Dimension 64*51*12.7mm, 76*51*19.1,,.16*51*25.4mm,108*76*25.4mm,178*127*51mm,188*140*61mm. Material: Alloy Steel, Stainless Steel. Applications: Hook Scale Load Cell, Crane Load Cell, Testing Machine Force Sensor, Tension Sensor, Tension Compression Load Cell. Keywords: S Type Load Cell, Tension Compression Force Sensor. ManYear MLC301 delivers high accuracy, stable performance, and long-term reliability, making it an ideal choice for S Type Load Cell measurement in industrial applications. Trusted quality assurance and dedicated technical support are provided for customers worldwide.
