MLC326 Hook Scale Load Cell
Range: 10ton
Dimension: 252*104*45mm
Material: Alloy Steel, Stainless Steel
Dimension: 252*104*45mm
Material: Alloy Steel, Stainless Steel

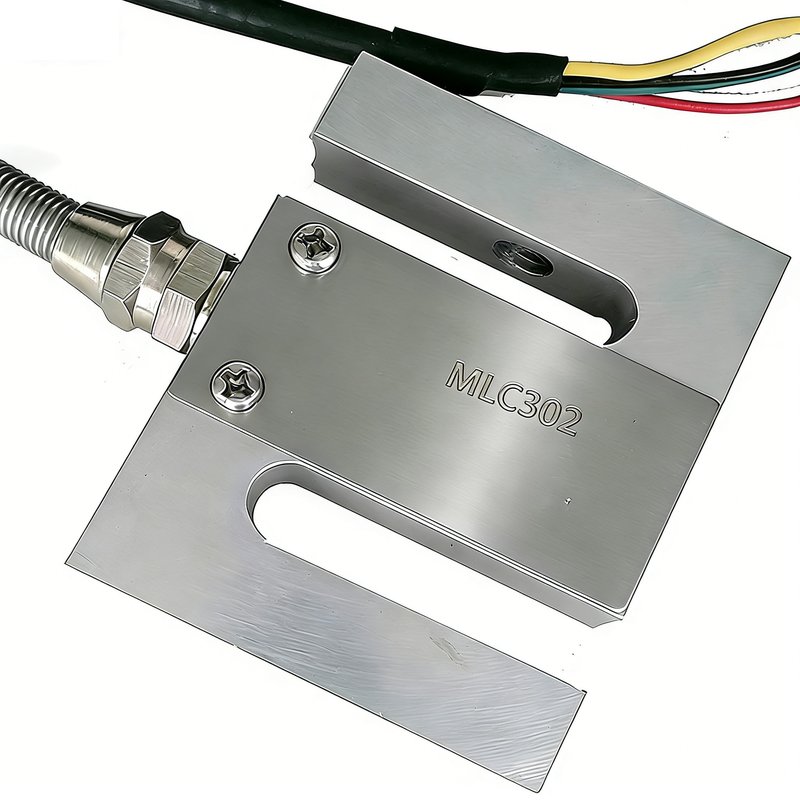

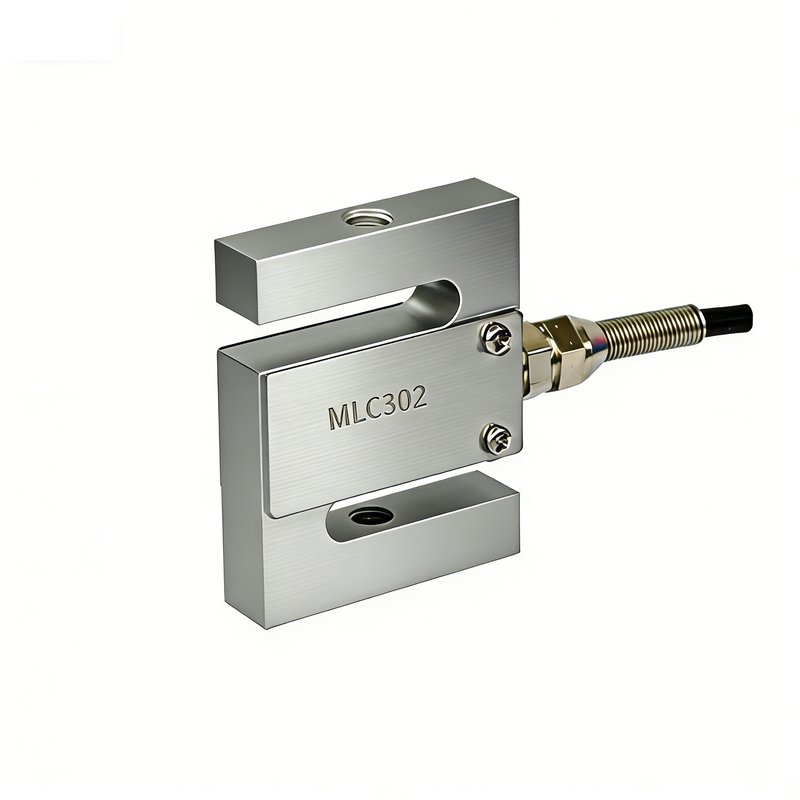

MLC302 S Type Load Cell
Product Introduction
Model: MLC302
Category: S Type Load Cell
Range: 1~5kg,10~50kg,100kg,150~500kg
Accuracy: 0.03%FS
Operating Temperature: -30~+70ºC

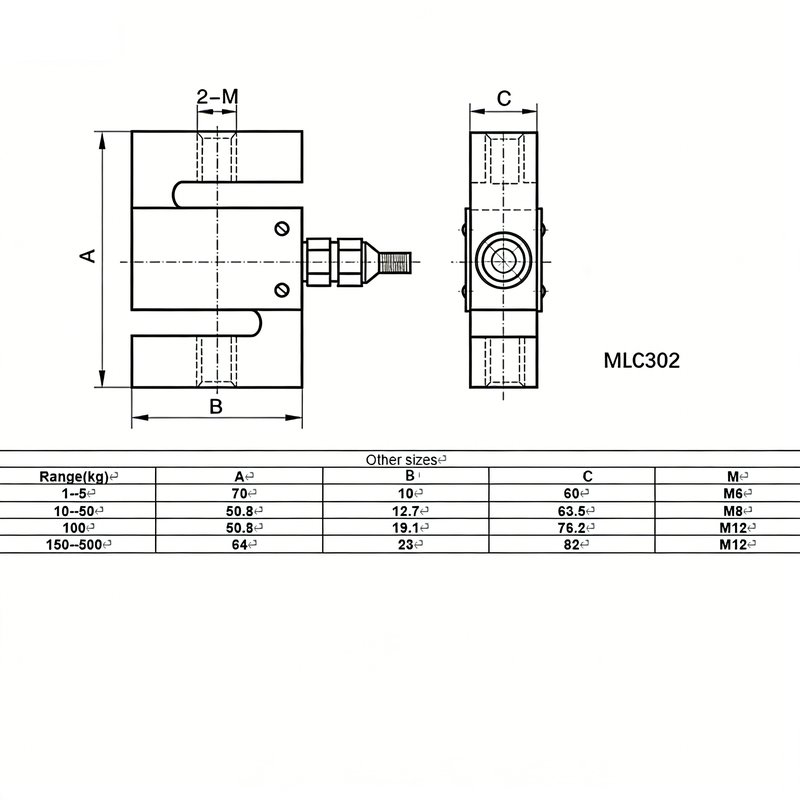

Dimension: 70*10*60mm; 50.8*12.7*63.5mm;64*23*82mm
Material: Aluminum Alloy
Application: Hook Scale Load Cell, Force Testing Machine Sensor, Tension Sensor, Tension Compression Load Cell
Category: S Type Load Cell
Range: 1~5kg,10~50kg,100kg,150~500kg
Accuracy: 0.03%FS
Operating Temperature: -30~+70ºC
Dimension: 70*10*60mm; 50.8*12.7*63.5mm;64*23*82mm
Material: Aluminum Alloy
Application: Hook Scale Load Cell, Force Testing Machine Sensor, Tension Sensor, Tension Compression Load Cell
Download related documents
Contact immediately
Technical Specifications
MLC302 S Type Load Cell by ManYear Technology is a high-quality S Type Load Cell. Range 1~5kg,10~50kg,100kg,150~500kg, accuracy 0.03%FS, operating temperature -30~+70ºC. Dimension 70*10*60mm; 50.8*12.7*63.5mm;64*23*82mm. Material: Aluminum Alloy. Applications: Hook Scale Load Cell, Force Testing Machine Sensor, Tension Sensor, Tension Compression Load Cell. Keywords: S Type Load Cell, Tension Compression Force Sensor. ManYear MLC302 delivers high accuracy, stable performance, and long-term reliability, making it an ideal choice for S Type Load Cell measurement in industrial applications. Trusted quality assurance and dedicated technical support are provided for customers worldwide.
