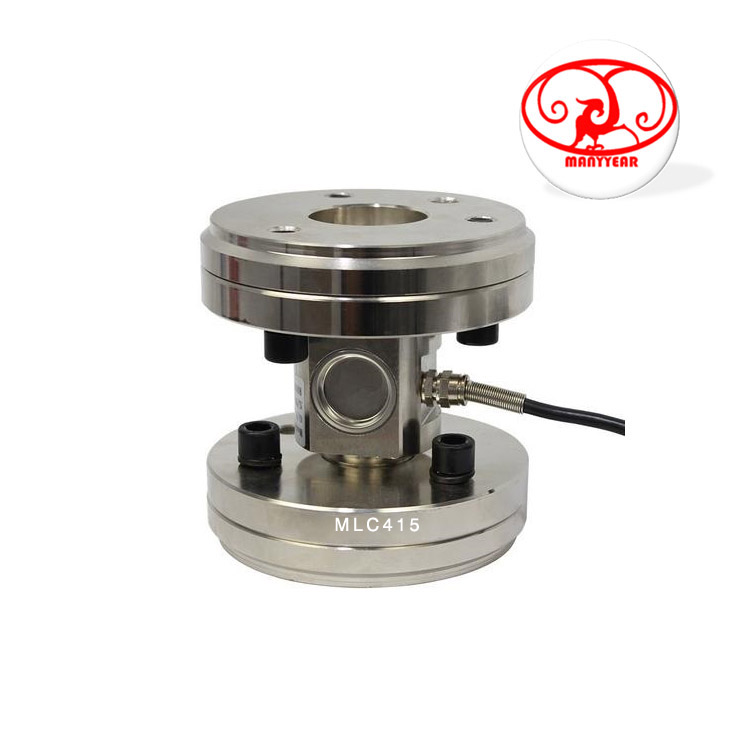

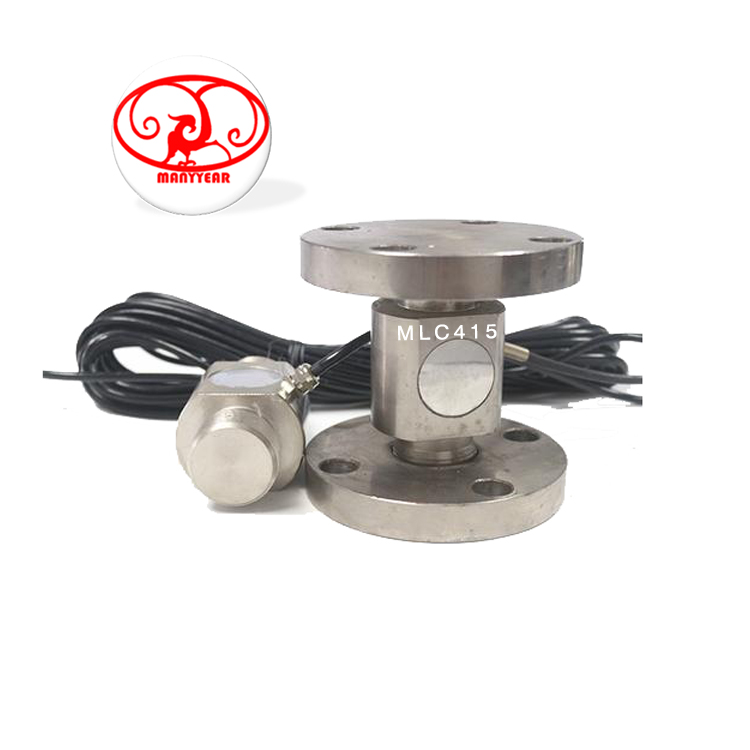

MLC415 portable dynamometer force sensor, 30T, alloy steel/stainless steel, Ø152*138mm, for testing machine.
Model: MLC415
Category: Column load cells
Capacity: 30t

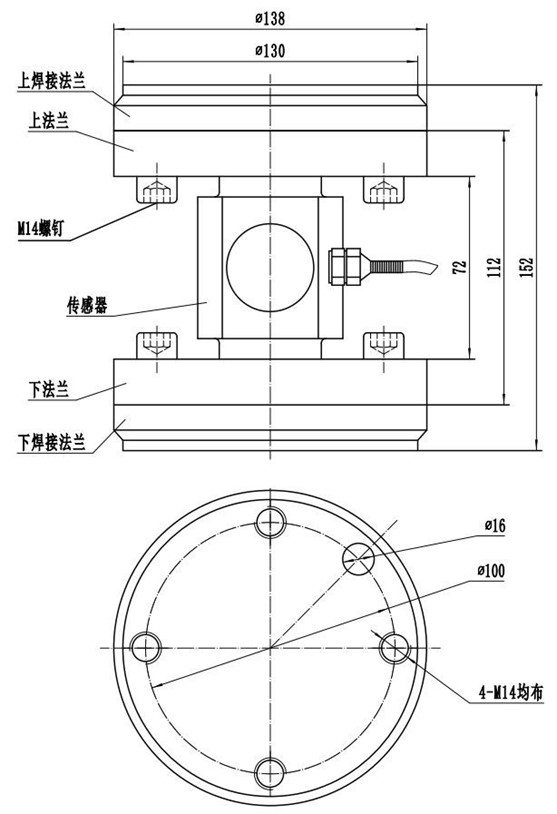

Size: Ø 152*138mm
Material: Alloy steel, Stainless steel
Application: Hydraulic force sensor, oil pressure force sensor, large range force sensor
| Technical specifications | |||
| Comprehensive error: | 0.1 % FS | Output resistance: | 352±5Ω |
| Rated output: | 1.5 ± 0.005mv / v | Insulation resistance: | ≥5000MΩ(100VDC) |
| Nonlinearity: | 0.1 % FS | Operating Voltage: | 9~12VDC |
| Lag: | 0.1 % FS | Compensation temperature: | -10~+40 ℃ |
| Repeatability: | 0.1 % FS | Operating temperature: | -20~+55 ℃ |
| Creep: | 0.5 % FS/10MIN | Effect of Temp. on zero point: | 0.1 % FS/10 ℃ |
| Zero balance: | ±1%FS | Effect of Temp. on sensitivity: | 0.1 % FS/10 ℃ |
| Input resistance: | 3 5 0±10Ω | Protection level: | IP66 & IP68 |
