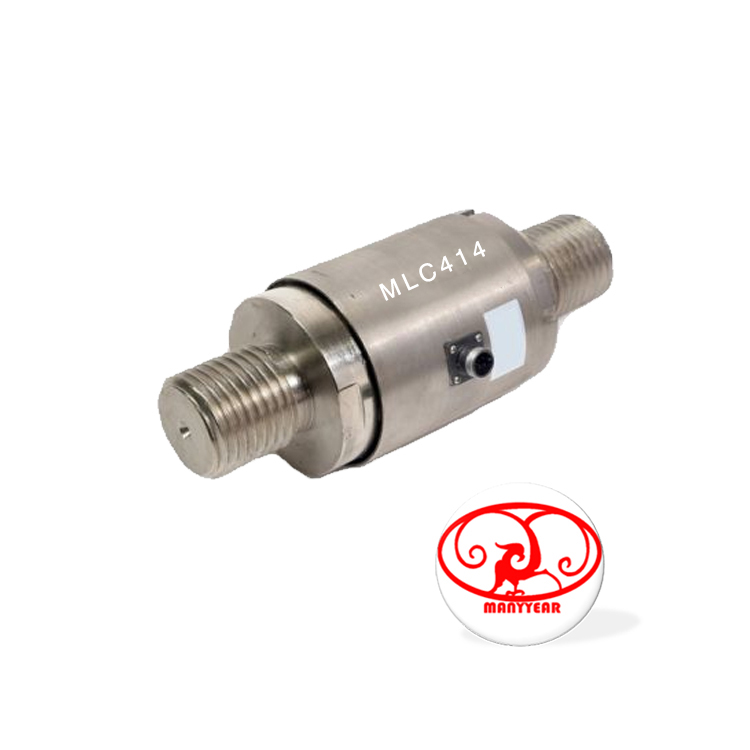

MLC414 compression & tension force sensor, 1,2,5,10,15,20,30,40,50,75,100KN, alloy steel/stainless steel, 3 sizes, for dynamometer.
Model:MLC 414
Category: Column Load Cell
Endurance: 1,2,5,10,15,20,30,40,50,75,100KN

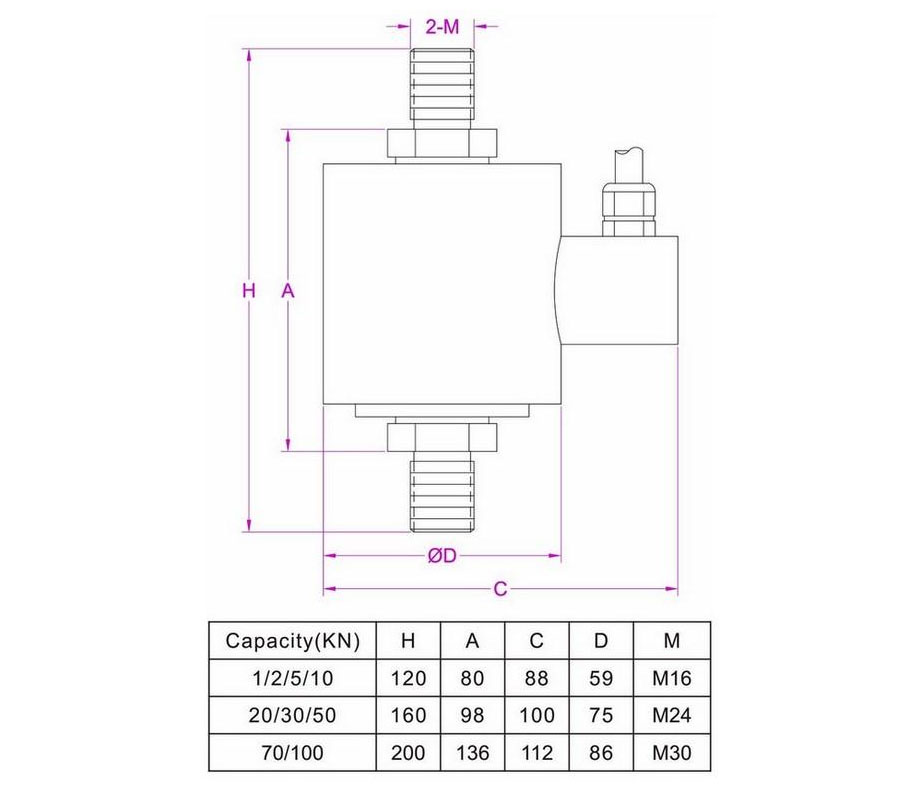

Size: Ø 59*120mm, Ø 75*160mm, Ø 86*200mm
Material: alloy steel, stainless steel
Applications: Small compression and tension tests, small crane scales
Features: Compression and tension load cells for hydraulic presses, hydraulic presses, oil presses
| Technical specifications | |||
| Comprehensive error: | 0.3 %FS | Output resistance: | 352 ± 3 Ω |
| Rated output: | 1.6 ±0. 01 mv/v | Insulation resistance: | ≥5000MΩ(100VDC) |
| Nonlinearity: | 0.1 % FS | Operating Voltage: | 9~12VDC |
| Lag: | 0.2 % FS | Compensation temperature: | -10 ~+ 70 ℃ |
| Repeatability: | 0.1 % FS | Operating temperature: | -20 ~+ 75 ℃ |
| Creep: | 0.2 % FS/10MIN | Effect of Temp. on zero point: | 0.05 % FS/10 ℃ |
| Zero Balance: | ±1%FS | Effect of Temp. on sensitivity: | 0.05 % FS/10 ℃ |
| Input resistance: | 380 ± 5 Ω | Protection level: | IP67 & IP68 |
