MLC409B testing machine high capacity force sensor, 30-3500T, alloy steel/stainless steel, 4 sizes, for testing machine & hydraulic press.
Model: MLC409 B
Category: Column load cells
Range: 30,50,60,100,150,200,300,400,500,1000,2500,3500t

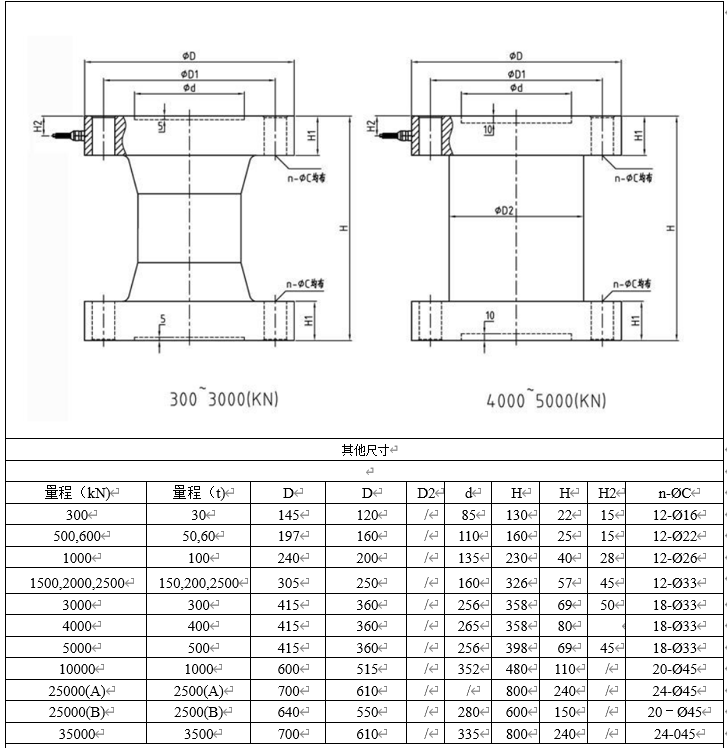

Size: 197*160mm; 240*230mm; 305*326mm; 415*358mm
Material: Alloy steel, Stainless steel
Application: Hydraulic press, oil press, dynamometer, large-range weighing force sensor, tensile force tester
| Technical specifications | |||
| Comprehensive error: | 0.1%FS | Output resistance: | 7 80 ±5Ω |
| Rated output: | 2.0±0.005mv/v | Insulation resistance: | ≥5000MΩ(100VDC) |
| Nonlinearity: | 0.2 % FS | Operating Voltage: | 9~12VDC |
| Lag: | 0.1 % FS | Compensation temperature: | -10~+40 ℃ |
| Repeatability: | 0.1 % FS | Operating temperature: | -20~+55 ℃ |
| Creep: | 0.1 % FS/10MIN | Effect of Temp. on zero point: | 0.05%FS/10 ℃ |
| Zero balance: | ± 1%FS | Effect of Temp. on sensitivity: | 0.05%FS/10 ℃ |
| Input resistance: | 7 8 0±10Ω | Protection level: | IP66 & IP68 |
